Section 4 – MOMENT LIMITER (OVERLOAD DETECTOR) Mini-Crawler Crane M A E D A
4-78 1/2019 MC405C-3

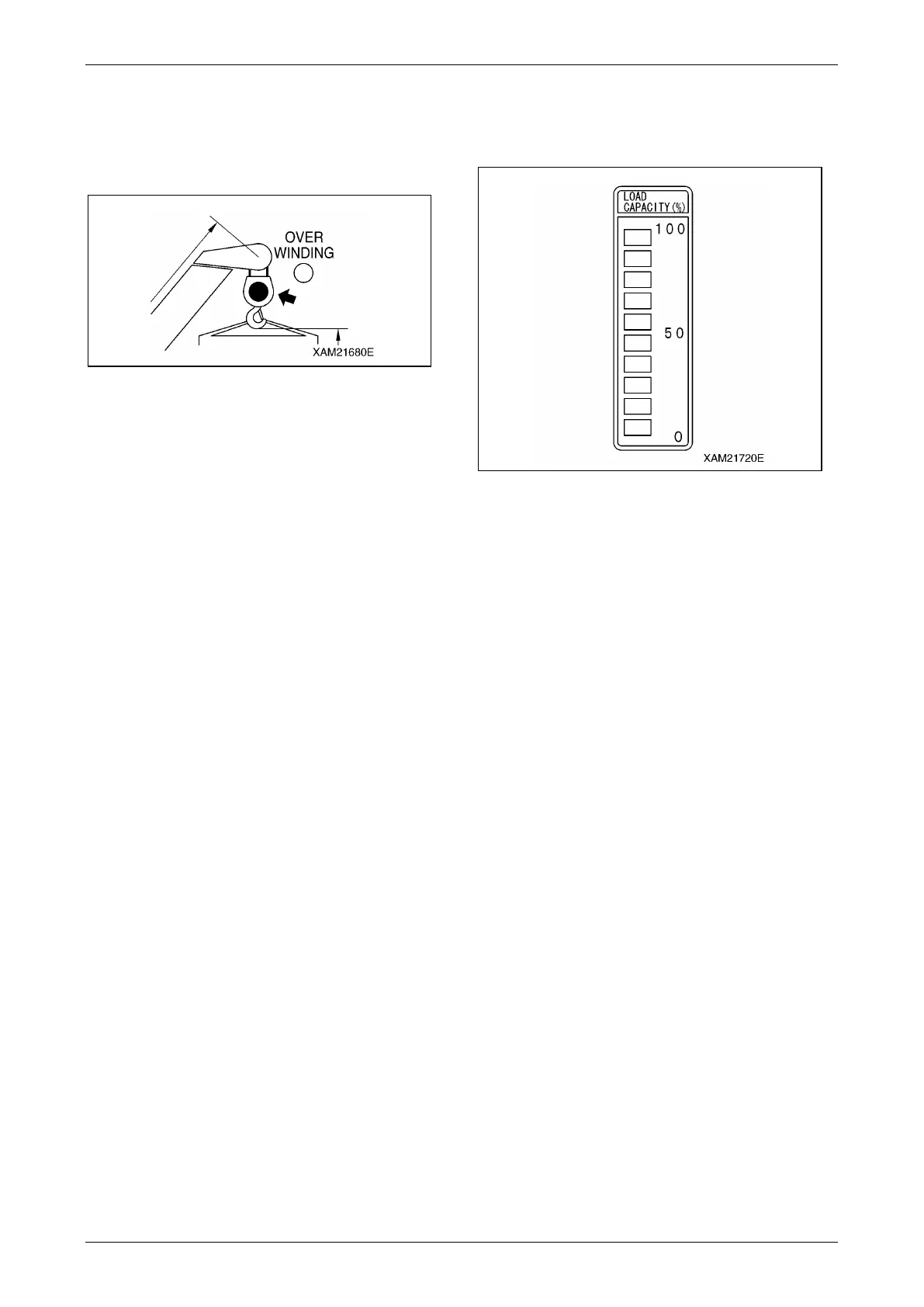

Load Factor LED (Changes to
Green/Yellow/Red)
This LED indicates the status of the moment
limiter load factor by its illumination.
Fig. 4-202
• The LED lights up in green if the load factor is
less than 90 %.
• The LED lights up in yellow if the load factor is
90 to less than 100 %.
• The LED lights up in red if the load factor is
100 % or higher.
Load Factor Display (Yellow)
This display indicates the status of the moment
limiter load factor by its illumination.
Fig. 4-203
• The load factor is indicated by ON/OFF of the
"bar" according to the changes of the load
factor.
• All the "bars" will be ON when the load factor
reaches 100 % or higher.
NOTICE: When the load factor is about 50 %, all
the "bars" around the number "50" on the right
and below are ON.
All the "bars" around the number "50" and above
are OFF.
