3. Verify that the lamps on the outrigger display
light up and go off in the order shown below.

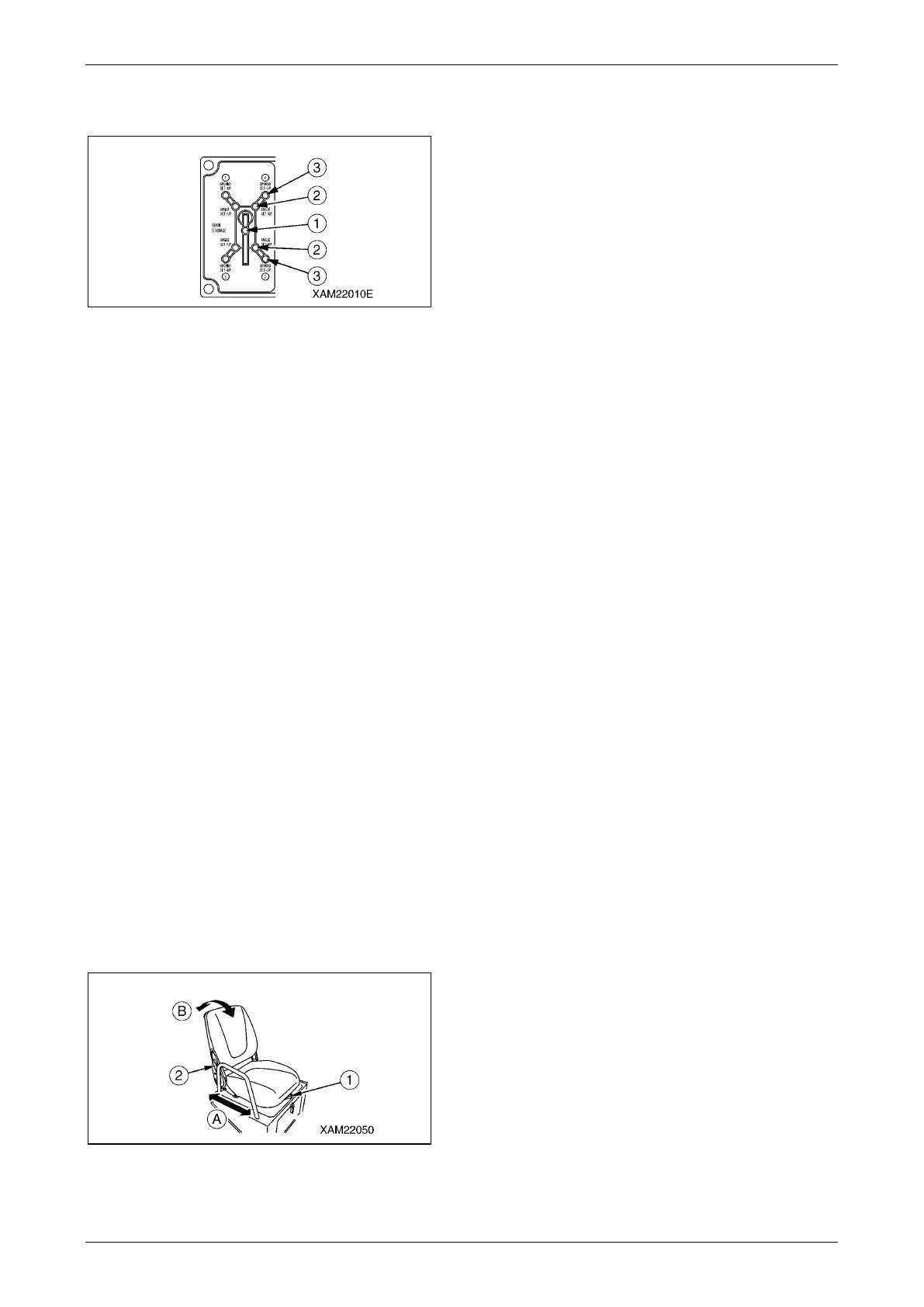

Fig. 5-55
(1) All of the boom stowing lamp (1),
extension lamps (2), and setting lamps
(3) light up in green for 2 seconds, and
go off.
(2) The boom stowing lamp (1) (green)
lights up, and at the same time, all the
extension lamps (2) and setting lamps
(3) flash in red.
NOTICE: If a lamp on the outrigger display does
not light up for 2 seconds in green, the outrigger
display may be faulty.
Please ask us or our sales service agency for
repair.
4. Verify that the outrigger un-set warning lamp
flashes and the red of the working status
lamp lights up.
Adjust Operation Seat
WARNING!
• Adjust the operation seat before operation
or when the operator changes.
• Press your back against the back of the
operation seat and adjust the seat so that
you can fully step on the acceleration pedal.
Forward/Backward Adjustment of the Seat
1. While pushing the slide adjusting lever (1) to
the left, set the seat to the desired position.
Fig. 5-56
2. Release your hand from the slide adjusting
lever (1).
NOTICE: The forward/backward slide adjustment
distance is 120 mm in 6 steps.
Reclining Adjustment
CAUTION: Watch the space in the back while
adjusting the angle when reclining the
backseat backward.
1. While pushing the reclining adjusting lever
(2) forward, set the backseat to the desired
angle.
2. Release your hand from the reclining
adjusting lever (2).
NOTICE: The reclining adjustment angle is 75
degrees in 7 steps forward and 23 steps in
backward.
Post-Start Inspection - After
Starting Engine
Check the followings in this section after starting
the engine and before starting the first work
every day.
CAUTION: The checkups described in this
section should be carried out after starting
the machine.
See "STARTING ENGINE" on page 4-18 and
later to execute the engine startup, travelling
operations, outrigger operations and crane
operations.
Check / Adjust Rubber Track Tension
CAUTION:
• Set the outriggers and raise the rubber track
for about 50 mm from the ground when
checking/adjusting the tension of the rubber
tracks.
• The standard tension of the rubber track is
that the clearance between the wheel tread
of the track roller at centre and the shoulder
of the rubber track is 5 to 10 mm.
• If the tension is not sufficient even after
injecting the grease, the rubber track or the
sealing of the tension adjustment cylinder
needs to be changed.
Contact us or our sales service agency for
the judgement of whether to replace, repair,
or keep the rubber track.
The rubber tracks are worn out differently
depending on the working conditions and soil
quality. Regularly check the wear and tension of
the rubber tracks.
