Checking "Outrigger Mode" Operation
WARNING! The Crane is inoperable in such
event where the LCD screen in the
Transmitter shows an error message or the
Monitor display in the Receiver shows an
error code.
Without fail, examine the cause of the error
and perform appropriate service when any
fault is identified,or contact us or our sales
service agency.
1. Position the Starter switch of the Crane to
ON.
2. Push the Power switch of the Transmitter to
power ON.
3. Turn ON the Main switch of the Receiver.

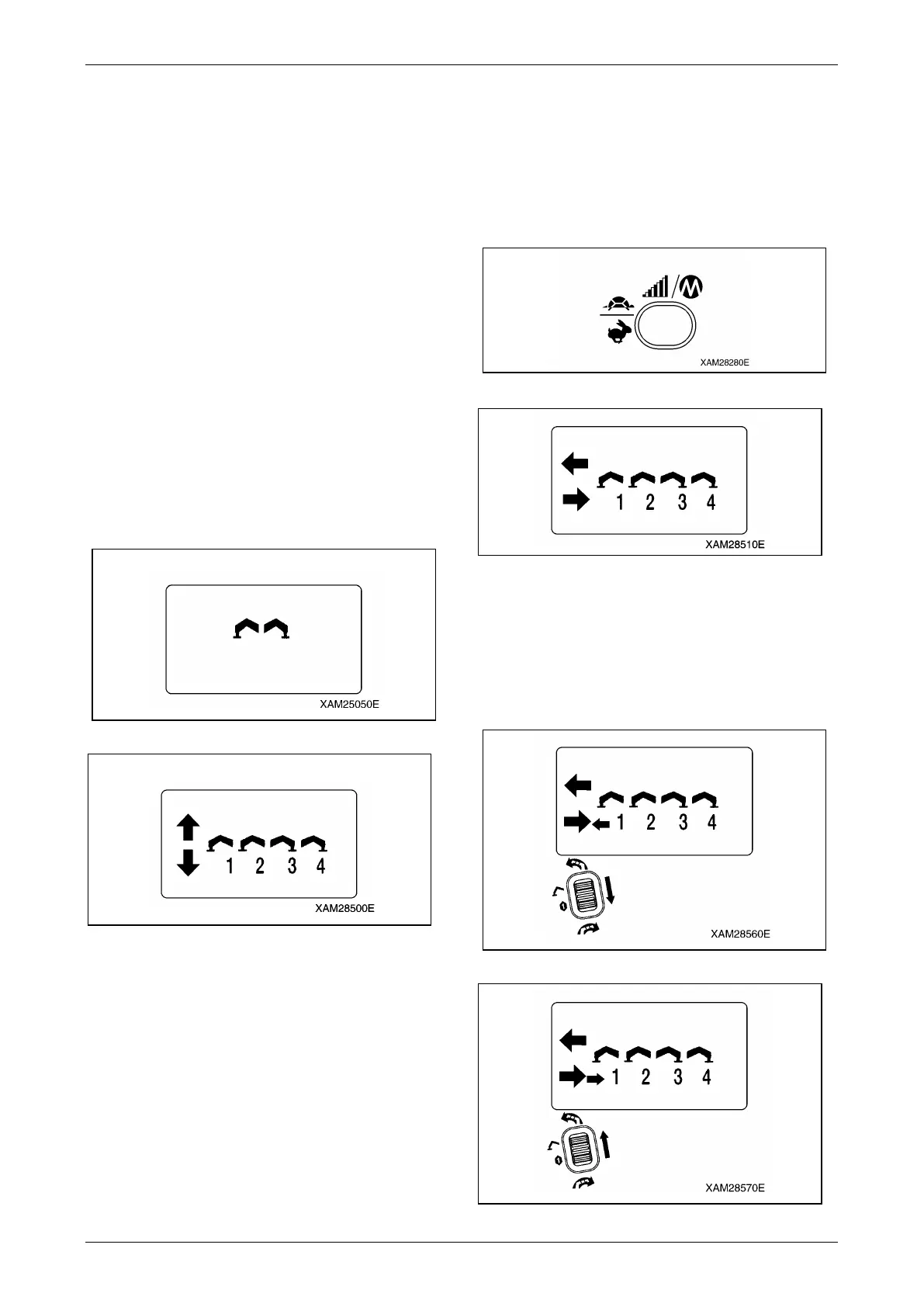

4. Switch the operation mode to the
"OUTRIGGER MODE" and confirm that
"Ground setting mode" is indicated in the
LCD screen.
Fig. 4-312
Fig. 4-313
5. Push the Speed/Mode button.
Here, confirm that the "Outrigger Extension
mode" is exhibited.
Switching between "Outrigger Extension
mode" and "Outrigger Ground setting mode"
is alternately by each push of the
Speed/Mode button.
Fig. 4-314
Fig. 4-315
6. Push the Start/Reset button and start the
engine.
7. Use the Slewing/No.1 Outrigger operation
lever, to the both "Extend (lower)" and
"Retract (upper)" area, and check that the
No. 1 outrigger follows the lever operation.
Fig. 4-316
Fig. 4-317
