Maeda MC405C-3 - INSTRUMENT PANEL SECTIONS

Mini-Crawler Crane M A E D A Section 4 – INSTRUMENT PANEL SECTIONS
1/2019 MC405C-3 4-7
INSTRUMENT PANEL SECTIONS

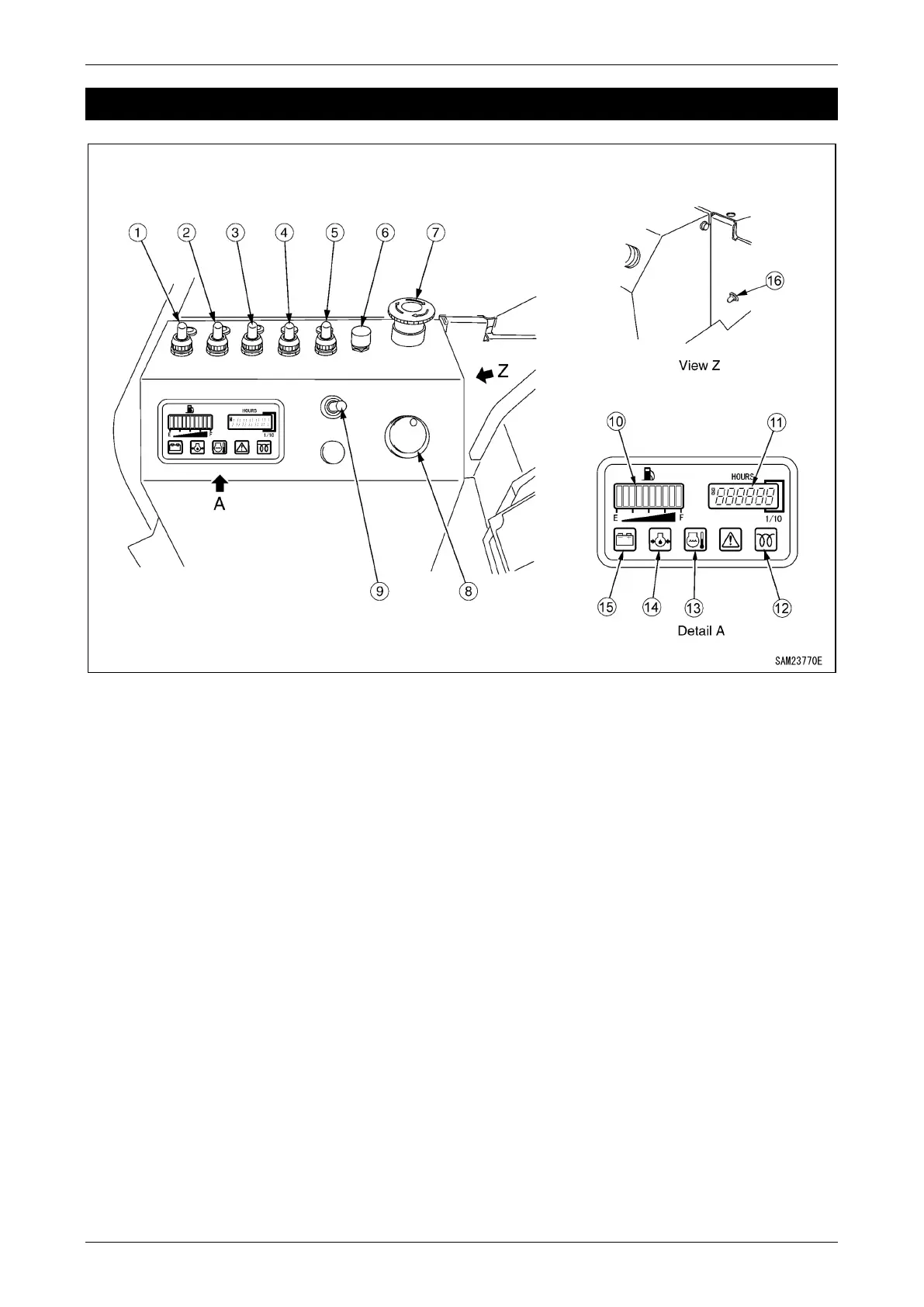

Fig. 4-12
1 - Working light switch
2
- Crane high-speed switch
3
- Hook stowing switch
4
- Travelling high-speed switch
5
- Boom stowing switch
6
- Horn switch
7
- Engine emergency stop switch (EMO)
8
- Starter switch
9 - Pick & Carry switch
10
- Fuel gauge
11
- Hour meter
12
- Pre-heat monitor
13
- Engine water temperature monitor
14
- Engine oil pressure monitor
15
- Battery charge monitor
16
- Boom lift bypass switch
