Section 3 – WORKING RADIUS/LIFTING HEIGHT Mini-Crawler Crane M A E D A
3-28 1/2019 MC405C-3

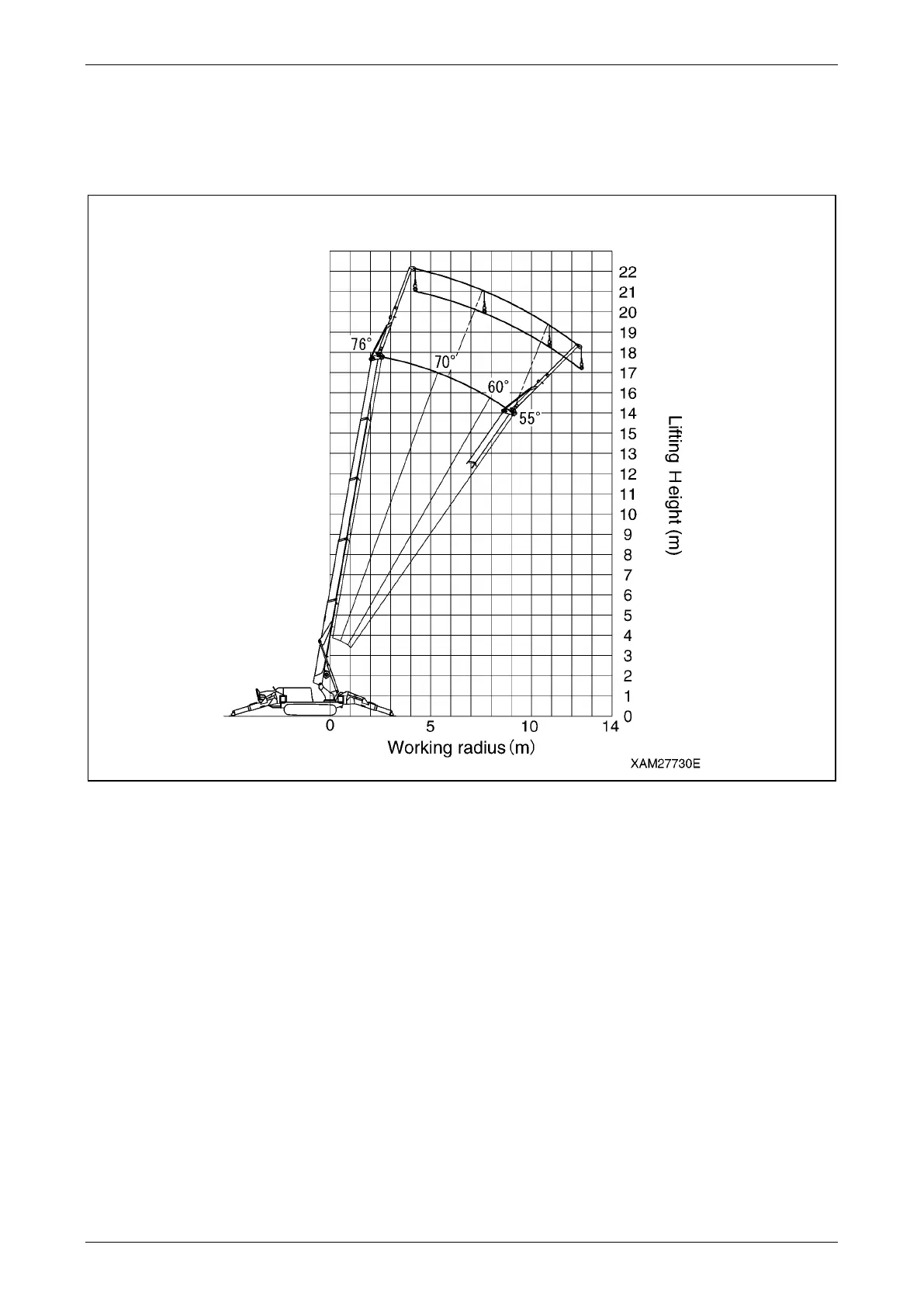

Working Radius/Lifting Height for Fly-jib
WARNING! The diagram of working radius and lifting height shows the relationships the
working radius of this machine, boom angle, and lifting height above the ground with no object
hoisted. The diagram has been made allowing for no deflection in the boom.
Fig. 3-26
