Mini-Crawler Crane M A E D A Section 4 – ELECTRIC MOTOR (OPTION)
1/2019 MC405C-3 4-129
Instrument Panel Sections

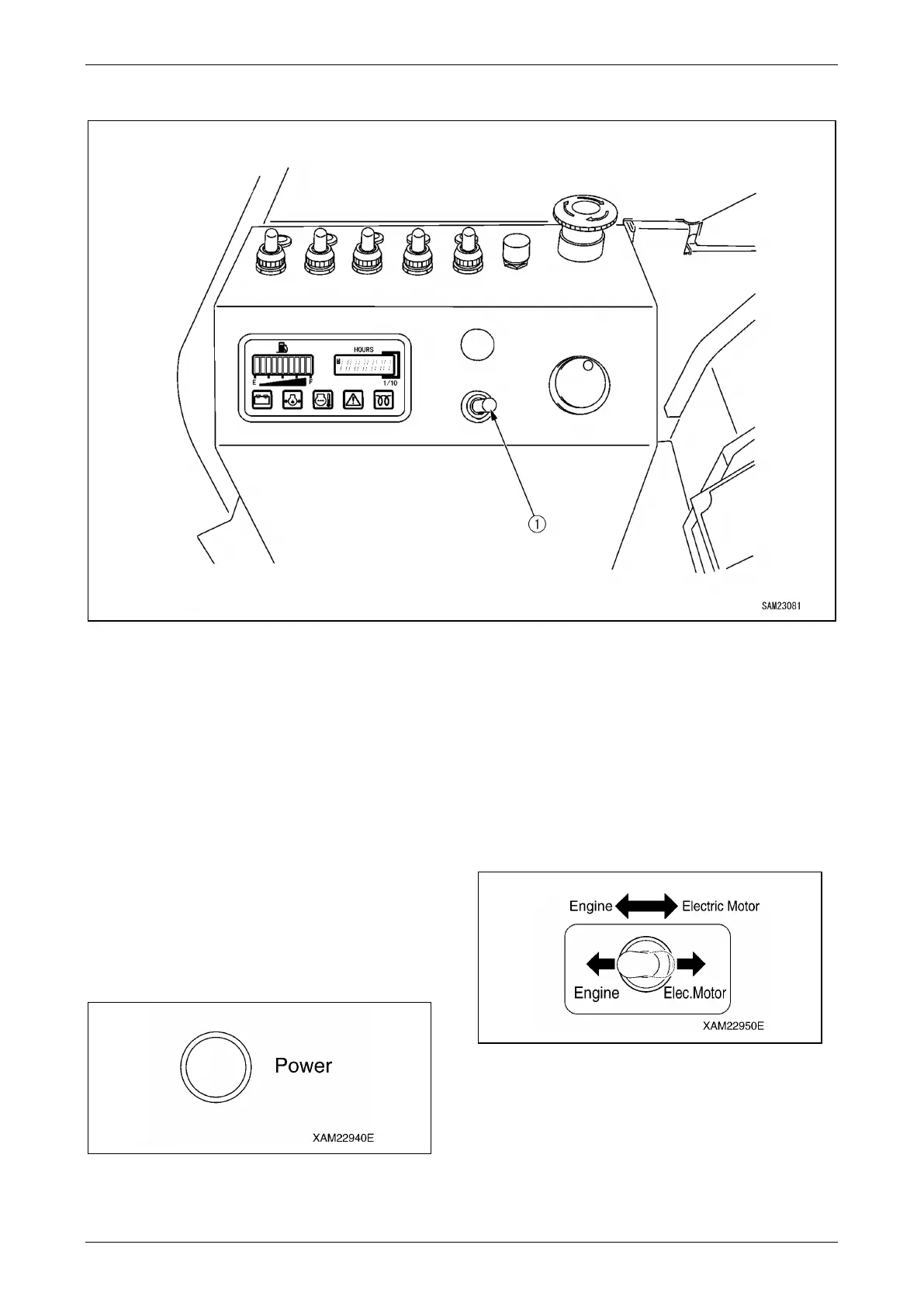

Fig. 4-376
1 - Engine and electric motor switch
CAUTION: This section describes only
additional items related to the electric motor
specification. For details other than those
described here, see "INSTRUMENT PANEL
SECTIONS" on page 4-7.
• The hour meter value will continue to
increment whether the electric motor or
engine is selected to power the machine.
• Following monitors (five) are not active
when the electrical motor is the output
source: Fuel gauge, pre-heat monitor,
engine water temperature monitor, engine
oil pressure monitor, battery charge monitor
Engine and Electric Motor Switch
CAUTION: Ensure that the Inverter unit power
lamp is ON when switching the engine and
electric motor switch to "Electric Motor".
Electric operation is permitted only when the
power lamp is ON.
Fig. 4-377
Use this switch to switch the power output source
of the machine.
Fig. 4-378
• Engine: Push down the switch to the left.
The engine is designated as a
power output source.
• Electric motor: Push down the switch to the
right.
The electric motor is designated
as a power output source.
