Mini-Crawler Crane M A E D A Section 4 – REMOTE CONTROL SYSTEM VERIFICATIONS
1/2019 MC405C-3 4-111
Checking After Starting Engine
WARNING! Precautions shown in this section
must be practiced prior to the day’s work,
without fail.
Serious injury or death may arise when these
inspections are neglected.
Further, see "Pre-Start Visible Checks" on
page 5-22 for the checking of the crane
structure.
Whenever any failures are revealed in such
inspections, repair them, or contact us or our
sales service agency.
Verification for the Engine Start and
Stop
WARNING!
• Ensure that the boom and outriggers are in
the stow position, entirely .
In case where they are not in those
positions, manipulate applicable levers of
the Crane to make them stowed.
Otherwise, the Transmitter operation may
cause damages to the Crane or tipping that
results serious injury or death.
• The Crane is inoperable in such event
where the LCD screen in the Transmitter
shows an error message or the Monitor
display in the Receiver shows an error
code.
Without fail, examine the cause of the error
and perform appropriate service when any
fault is identified,or contact us or our sales
service agency.
Checking Engine Start Operation
1. Position the Starter Switch of the Crane to
ON.
2. Next, push the Power switch of the
Transmitter, to power ON.
3. Then turn ON the Main switch of the
Receiver.
4. Here, push the Horn button and confirm that
the horn toots.

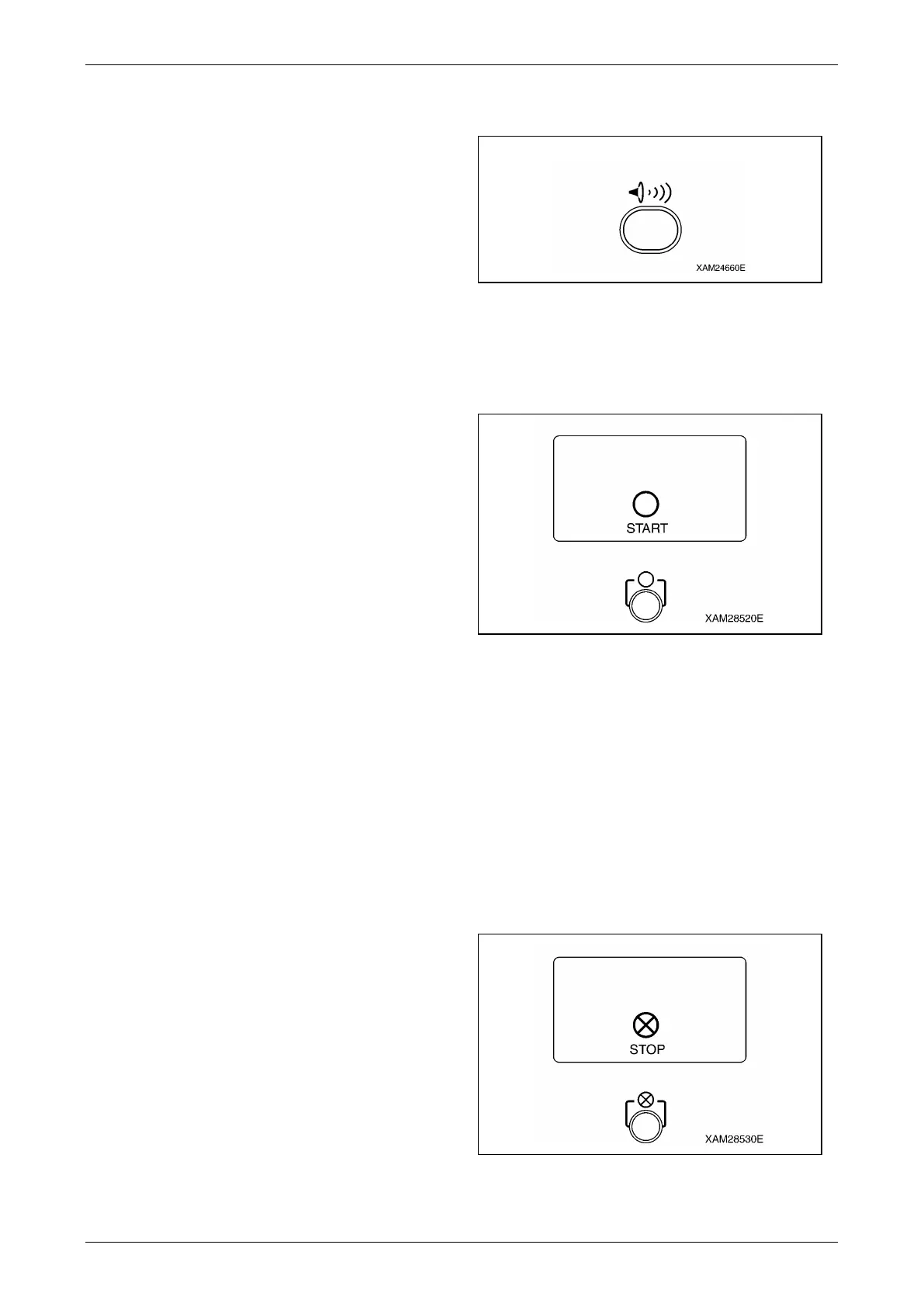

Fig. 4-309
5. Use the Start/Reset button to check that the
engine starts properly.
6. Check whether the indication as "START"
appears in the LCD screen, at that time.
Fig. 4-310
Checking Engine Emergency Stop
Operation
1. When the engine is started as in "Checking
Engine Start Operation" on page 4-111, try
the Stop/EMO button to confirm that the
engine absolutely stops.
2. Here, check whether the indication as
"STOP" appears in the LCD screen.
Further, confirm that the Monitor display in
the Receiver shows the error code, "E1", at
that time.
Fig. 4-311
