Maeda MC405C-3 - Outrigger Setting

Section 4 – REMOTE CONTROL OPERATION Mini-Crawler Crane M A E D A
4-118 1/2019 MC405C-3
Outrigger Setting
1. In accordance with "Procedure in the
Operation Mode" on page 4-104, enter into
the "OUTRIGGER MODE".

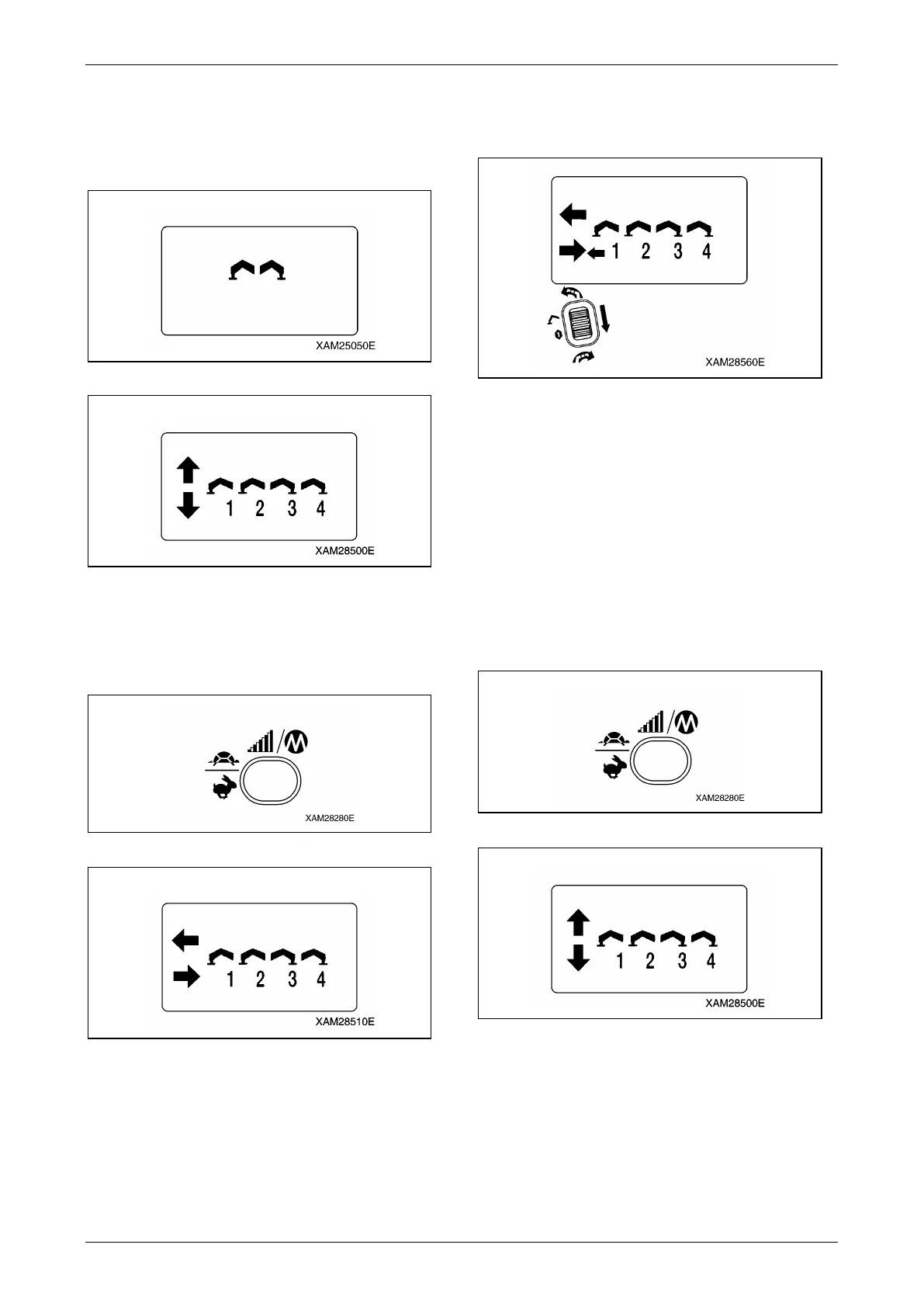

Fig. 4-342
Fig. 4-343
2. Push Speed/Mode button in the mode
condition of above 1.
The operation mode is switched to
"Outrigger Extension mode".
Fig. 4-344
Fig. 4-345
3. Turn one of the outrigger operation levers to
"Extend (lower)" and pull the Accelerator
lever slowly.
Fig. 4-346
4. When the outrigger is extended to the proper
position, slowly release the accelerator lever,
then release the outrigger operation lever to
return to its neutral position.
NOTICE: Repeat the same process to the other
three outriggers, so that all of the four outriggers
are extended to the proper position.
5. Push Speed/Mode button in the mode
condition of above 4.
The operation mode is switched to "Ground
setting mode".
Fig. 4-347
Fig. 4-348
