850 kg SEARCHER HOOK MOMENT LIMITER DISPLAY

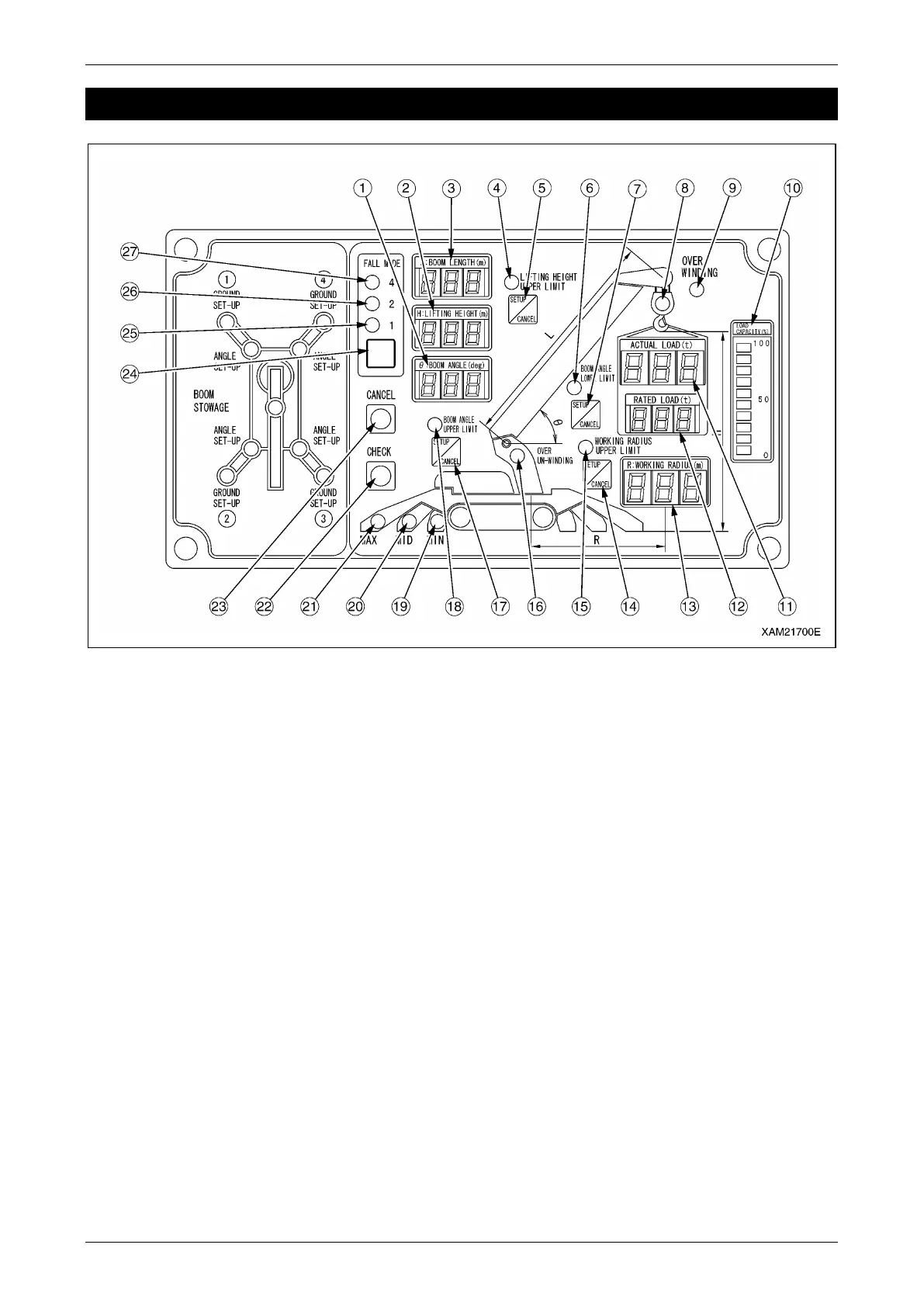

Fig. 4-405
1 - Boom angle display
2
- Lifting height display
3
- Boom length display
4
- Boom lifting height upper limit LED (Orange)
5
- Boom lifting height upper limit switch
(Setup / cancel)
6
- Boom angle lower limit LED (Orange)
7
- Boom angle lower limit switch (setup /
cancel)
8
- Load factor LED
(Changes to green, yellow, and red)
9
- Over Winding LED (Red)
10
- Load capacity display (Yellow)
11
- Actual load display
12
- Rated total load display
13
- Working radius display
14 - Working radius upper limit switch
(Setup / cancel)
15 - Working radius upper limit LED (Orange)
16 - Over un-winding LED (Orange)
17 - Boom angle upper limit switch
(setup / cancel)
18 - Boom angle upper limit LED (Orange)
19 - Outrigger MIN. extension LED (Blue)
20 - Outrigger MID. extension LED (Blue)
21 - Outrigger MAX. extension LED (Blue)
22 - Check switch
23 - Cancel switch
24 - Fall mode / Option selector switch
25 - 1-fall LED (Blue)
26 - 2-fall LED (Blue)
27 - 4-fall LED (Blue)
NOTICE: For information on the moment limiter not provided here, see "MOMENT LIMITER
(OVERLOAD DETECTOR)" on page 4-68.
