Connecting Booster Cable

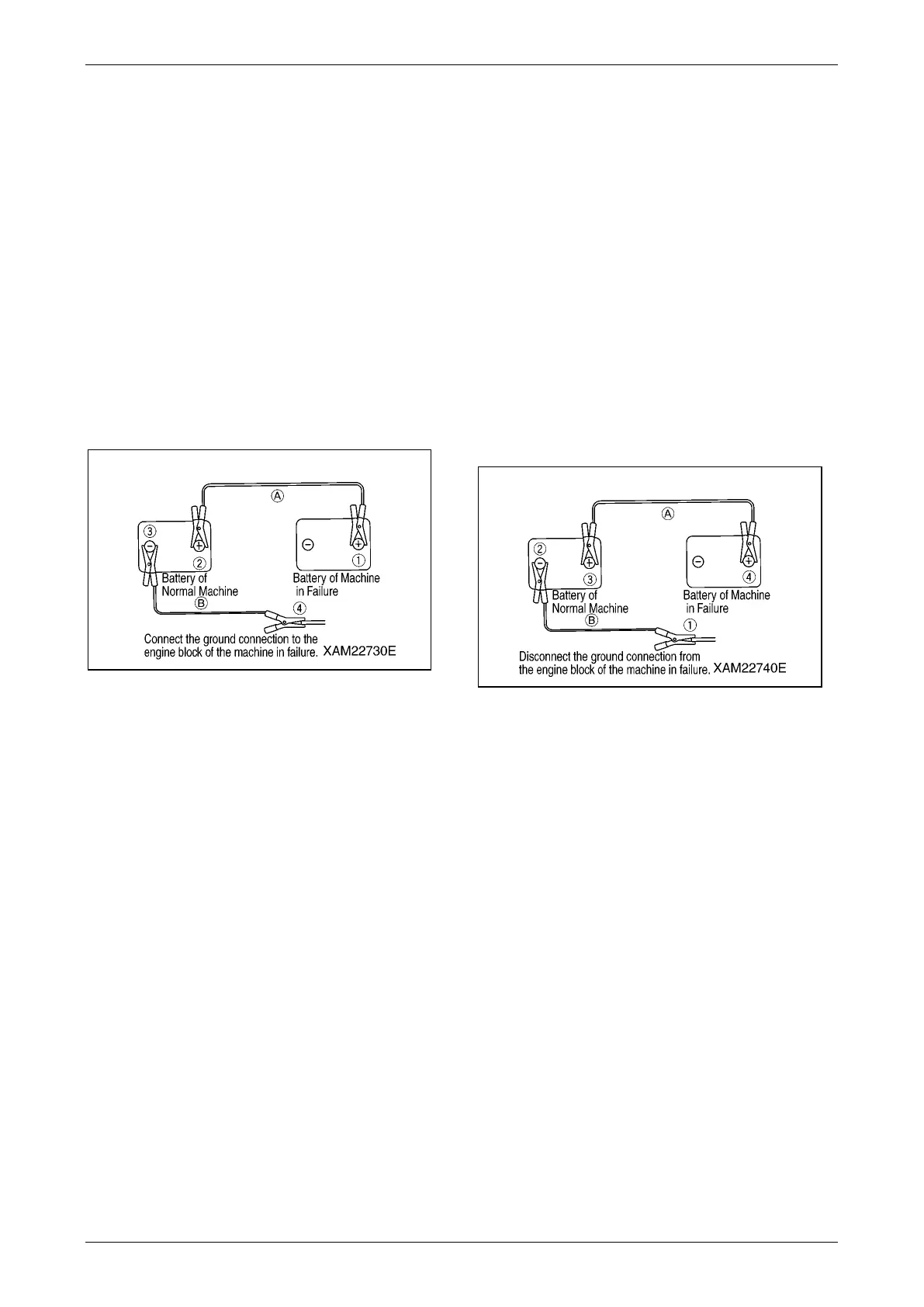

Connect the booster cable in the numerical order
shown in the figure.
1. Turn the starter switch of both of the normal
machine and machine in failure to the "OFF"
position.
2. Connect a clip of the booster cable (A) to the
(+) terminal of the machine in failure.
3. Connect the other clip of the booster cable
(A) to the (+) terminal of the normal machine.
4. Connect a clip of the booster cable (B) to the
(-) terminal of the normal machine.
5. Connect the other clip of the booster cable
(B) to the engine block of the machine in
failure.
Fig. 5-128
Starting Engine
CAUTION: Verify that the operation levers are
at the "Neutral" position. If the safety lock
lever is equipped, also verify that the safety
lock lever is at the lock position.
1. Verify that the clips are securely connected
to the battery terminals.
2. Start the engine of the normal machine and
increase the engine speed to full speed
(highest speed).
3. Turn the starter switch of the machine in
failure to the "START" position to start the
engine.
If the engine does not start, wait for more
than 2 minutes before re-starting.
NOTICE: For more information on how to start
the engine, see "STARTING ENGINE" on page
4-18.
Disconnecting Booster Cable
When the engine started, disconnect the booster
cable in the reverse order of connecting the
booster cable.
1. Disconnect the clip of the booster cable (B)
connected to the engine block of the
machine in failure.
2. Disconnect the clip of the booster cable (B)
connected to the (-) terminal of the normal
machine.
3. Disconnect the clip of the booster cable (A)
connected to the (+) terminal of the normal
machine.
4. Disconnect the clip of the booster cable (A)
connected to the (+) terminal of the machine
in failure.
Fig. 5-129
