5. Operate the winch lever (3) to the "UP" (pull
toward you) side and winch until the hook
block automatically stops (over winding).

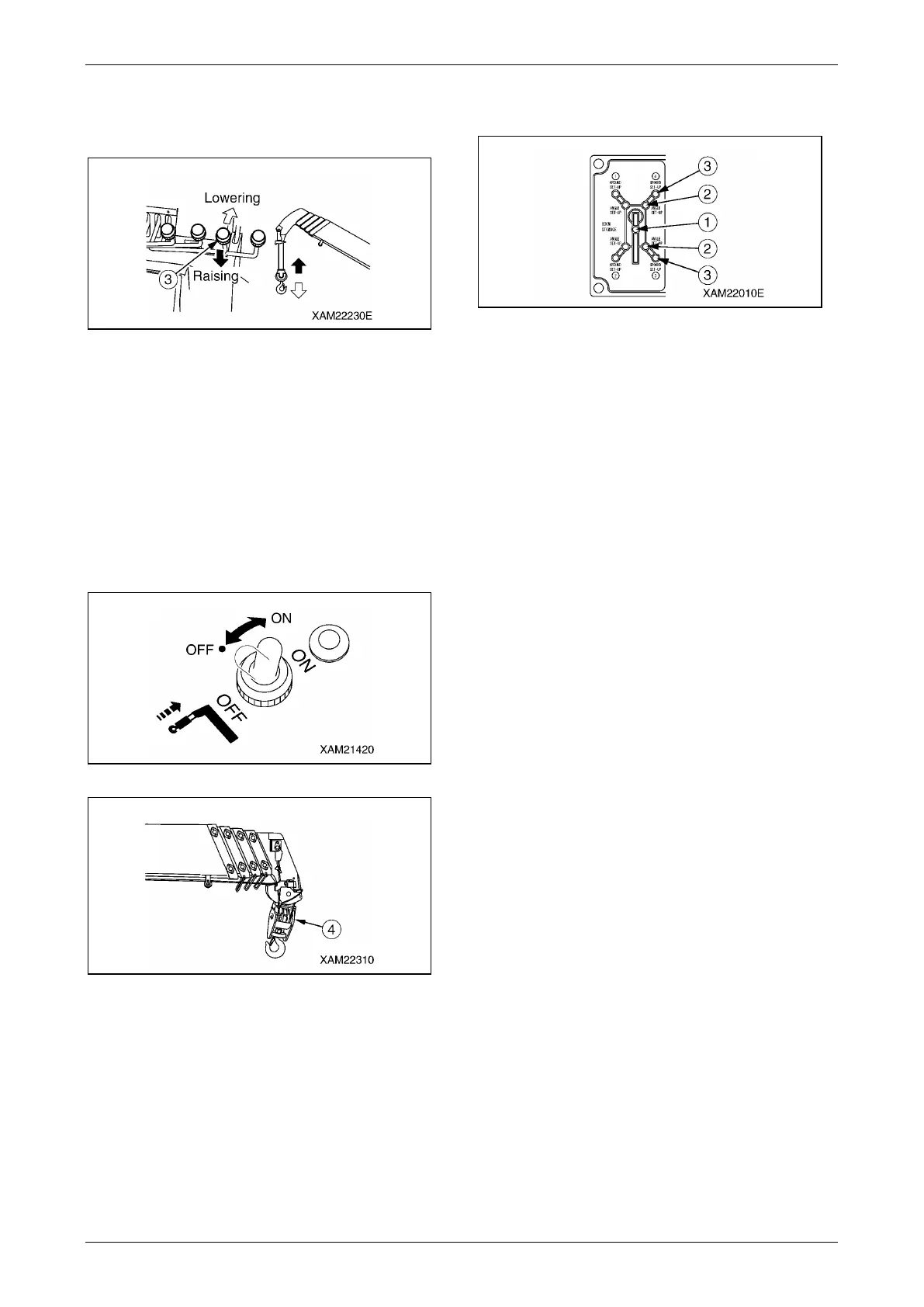

Fig. 4-173
NOTICE: Hoisting the hook block too much will
result in the detection of over winding. Then the
alarm buzzer and audible message of "Hook
Over Hoist" are heard and the hook raising
operation automatically stops.
6. With the hook stowing switch at the "ON"
position, operate the winch lever (3) to the
"UP" (pull toward you) side again and slowly
raise the hook block (4) to stow the block at
the bottom of the boom end.
Fig. 4-174
Fig. 4-175
NOTICE: Operating the hook stowing switch to
the "ON" position turns on the pilot lamp at the
switch section.
7. Verify that the boom stowing lamp (1)
(green) on the outrigger display lights up.
Fig. 4-176
NOTICE: If the boom stowing lamp (1) (green) on
the outrigger display does not light up, repeat the
boom lowering operation to the lowest position
and slewing operation.
