Mini-Crawler Crane M A E D A Section 4 – SEARCHER HOOK OPERATION
1/2019 MC405C-3 4-145

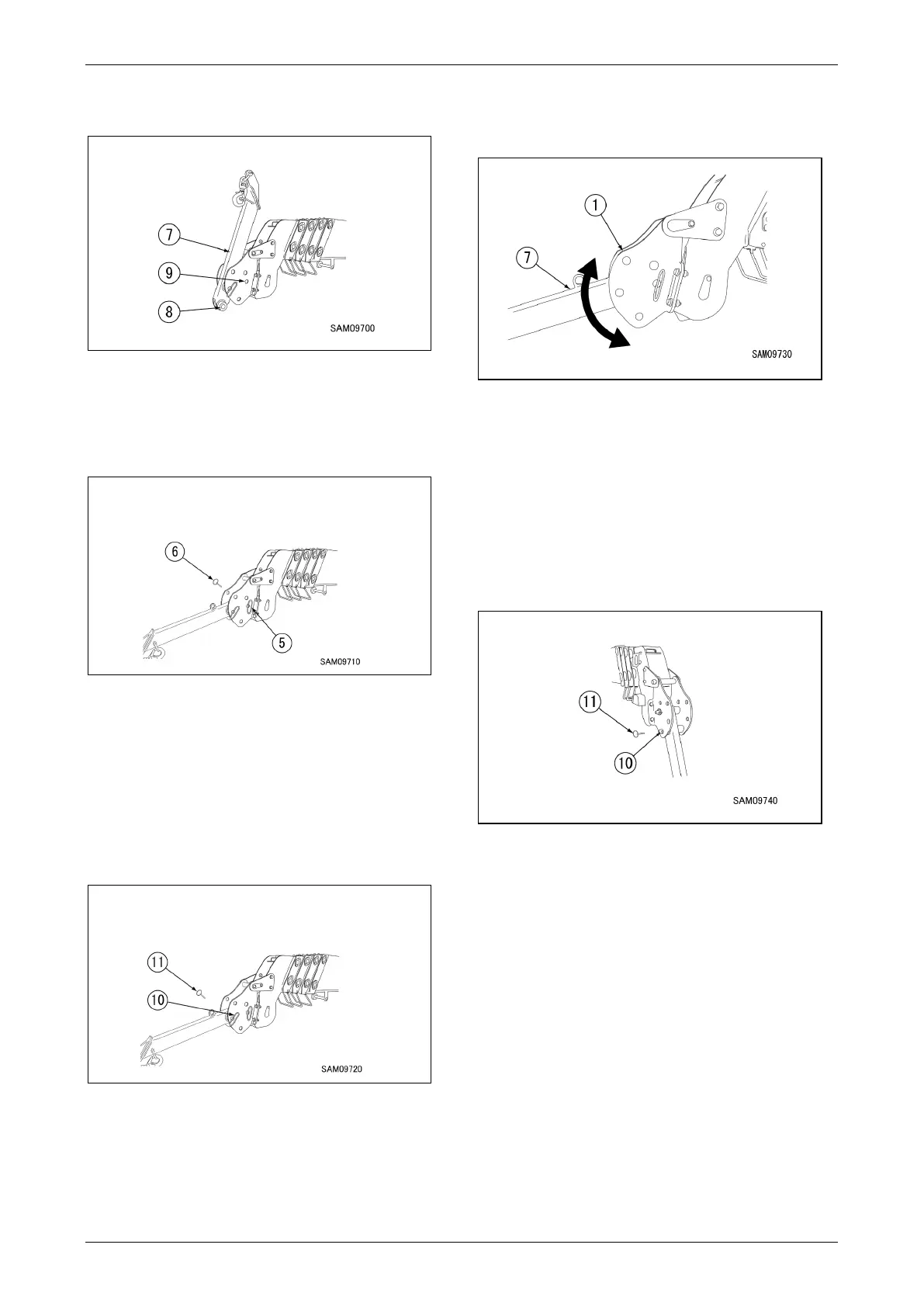

5. Line up the hole (8) in E-boom (7) tip and
hole (9) in bracket.
Fig. 4-414
6. Insert the removed position pin (5) (in
procedure 4.) through the hole of bracket (9),
and secure with lynch pin (6) to the tip of
position pin (5).
Fig. 4-415
DANGER! Always secure the position pin (5)
with the lynch pin (6). If the position pin falls
out during operations, serious injury or
damage to the machine may result.
7. Remove lynch pin (11) from the tip of
position pin (10), and remove the position
pin (10).
Fig. 4-416
8. Move E-boom (7) to the required angle for
the work, and line the holes (1) in the E-
boom (7).
Fig. 4-417
DANGER! E-boom and hook may interfere
with each other in RESTRICTED AREA on
Rated Total Load chart, and it may cause a
serious accident. Always adjust boom angle
to proper position for the work.
9. Insert the position pin (10) through the hole
of bracket, and secure with lynch pin (11) to
the tip of position pin (10).
Fig. 4-418
DANGER! Always secure the position pin (10)
with the lynch pin (11). If the position pin
falls out during operations, serious injury or
damage to the machine may result.
To Next Page
