3. Pull wire rope out (11) from guide sheave (7)
on the head of No.2 Fly-jib (5) and hook
holder (12) on the underneath of No.1 Fly-jib
(4).

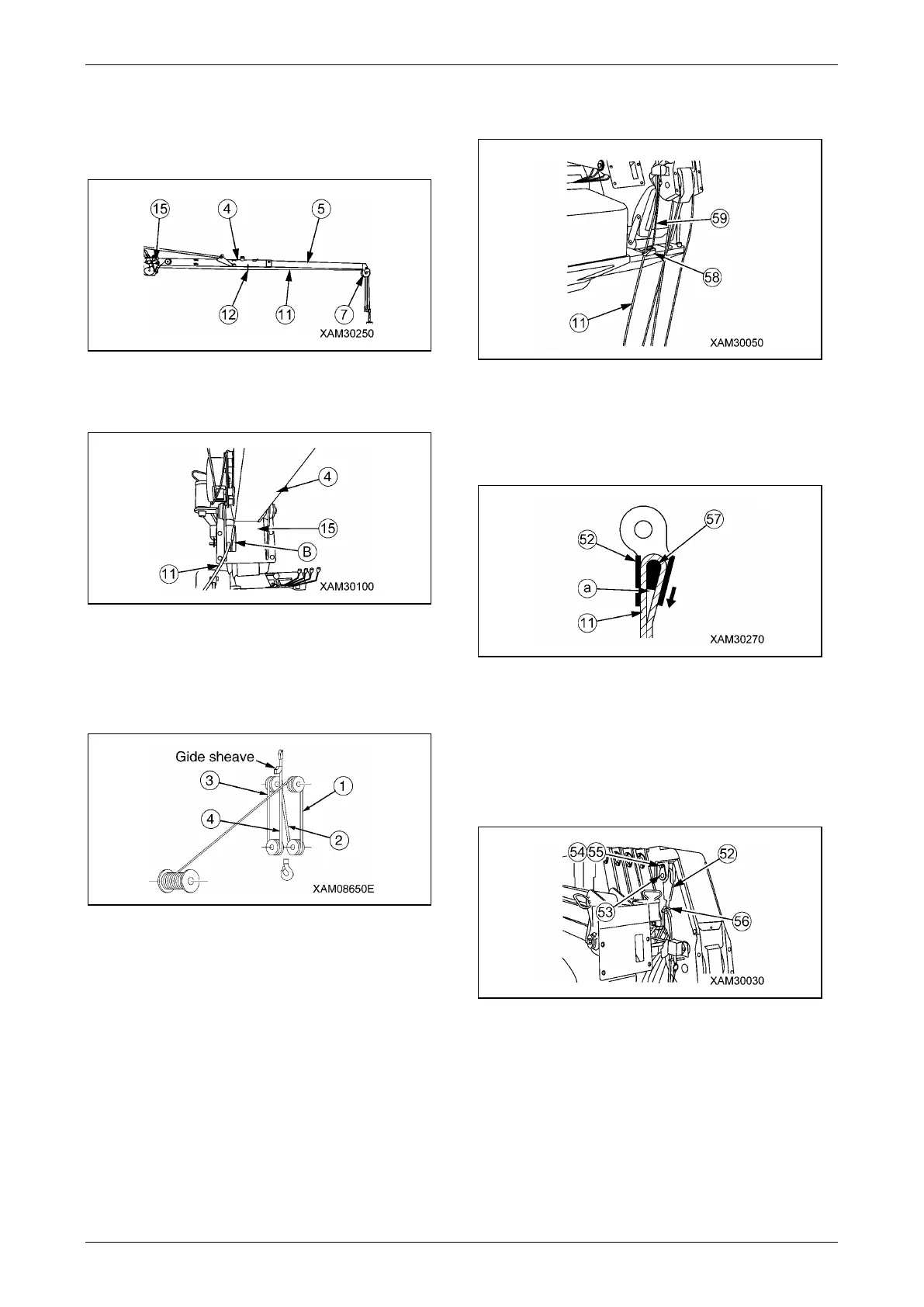

Fig. 4-479
4. Put wire rope (11) out from the hole (B) of
No.1 Fly-jib bracket (15) to main boom side.
Fig. 4-480
5. See "Fly-Jib Stowage (Single Fall Hook
Mode)" on page 4-156 and stow Fly-jib.
6. The following information is to attach the
wire rope to 4 fall hook block.
Fig. 4-481
(1) Take up wire rope to winch operation.
(2) Accommodate the type of hook block
(single to 4 fall hook), lace wire rope to
load sheave, hook block sheave and
guide sheave as shown in the figure.
(3) Lace wire rope (11) into the weight (58)
of over winding detector.
Fig. 4-482
(4) Insert wire rope (11) with rope wedge
(57) into wire socket (a) position, then
pull wire rope (11) to the direction the
arrow is showing.
Fig. 4-483
(5) Attach wire clip (56) to the wire rope
(11).
(6) Set the wedge socket (52) and insert
wedge socket pin (53) into it, and fix
firmly by one bolt (54) (M8x12L) and
one washer(55).
Fig. 4-484
