Mini-Crawler Crane M A E D A Section 3 – RATED TOTAL LOAD CHARTS
1/2019 MC405C-3 3-15

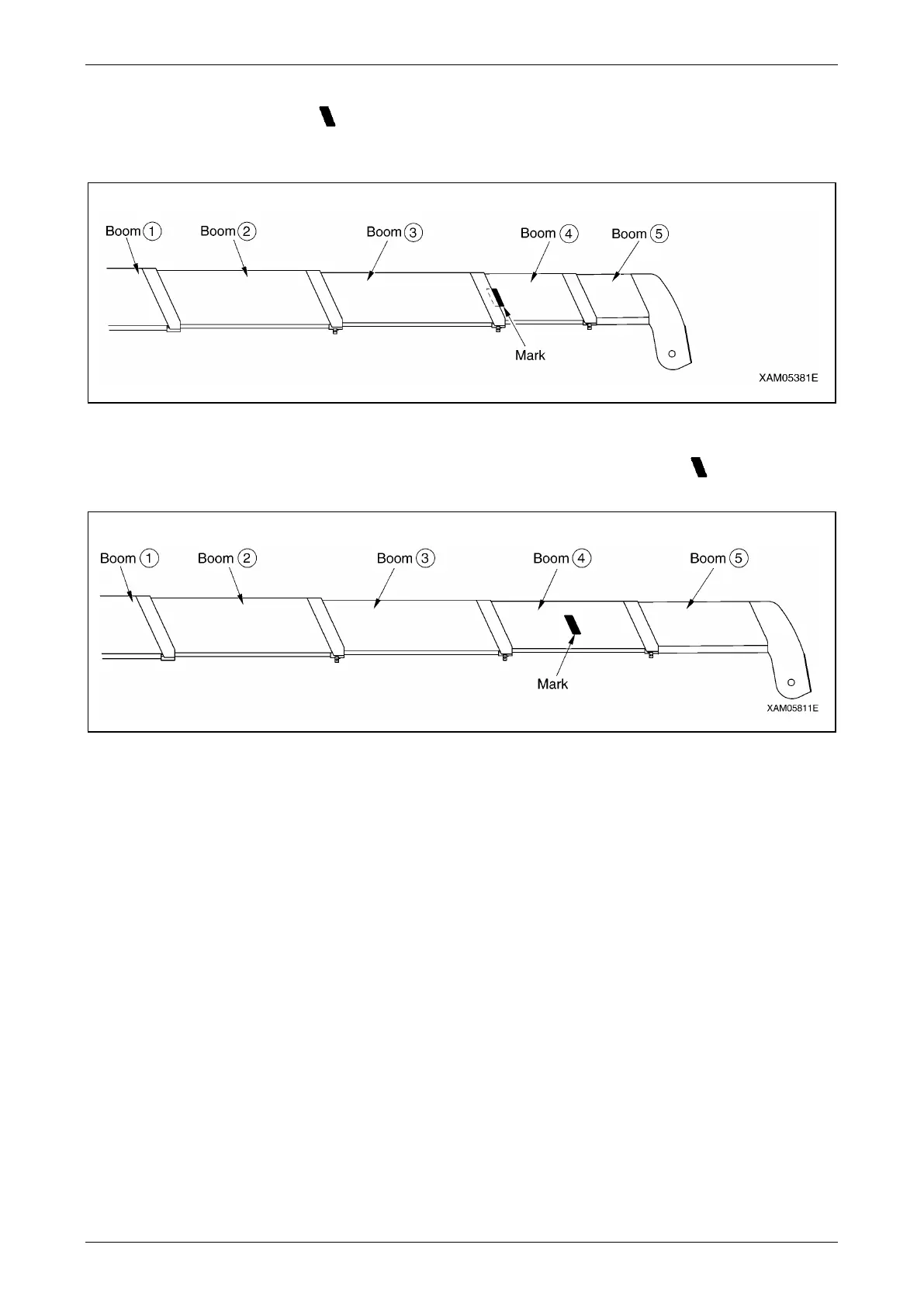

4. "Boom (1) + (2) + (3) + (4)": With booms (2) and (3) fully extended, booms (4) and (5) are extended
at the medium (half of the "
mark" passes boom (3)).
"Boom (1) + (2) + (3) + (4)" is to apply to crane operation with booms (4) and (5) extended even if
only slightly.
Fig. 3-14
5. "Boom (1) + (2) + (3) + (4) + (5)": All the booms are fully extended.
"Boom (1) + (2) + (3) + (4) + (5)" is to apply to crane operation with half of the "
mark" on boom
(4) passes boom (3).
Fig. 3-15
