Section 4 – INSTRUMENT PANEL SECTIONS Mini-Crawler Crane M A E D A
4-10 1/2019 MC405C-3
NOTICE: When restarting the engine after
overriding, be sure to turn the engine emergency
stop switch (EMO) to the "OFF" position before
starting the engine.
Starter Switch
CAUTION: Always turn the starter switch to
the "OFF" position after completing the work.
NOTICE: When inserting the key for the starter
switch, slide the cover to the right so that you can
see the keyhole of the switch, and then insert the
key.

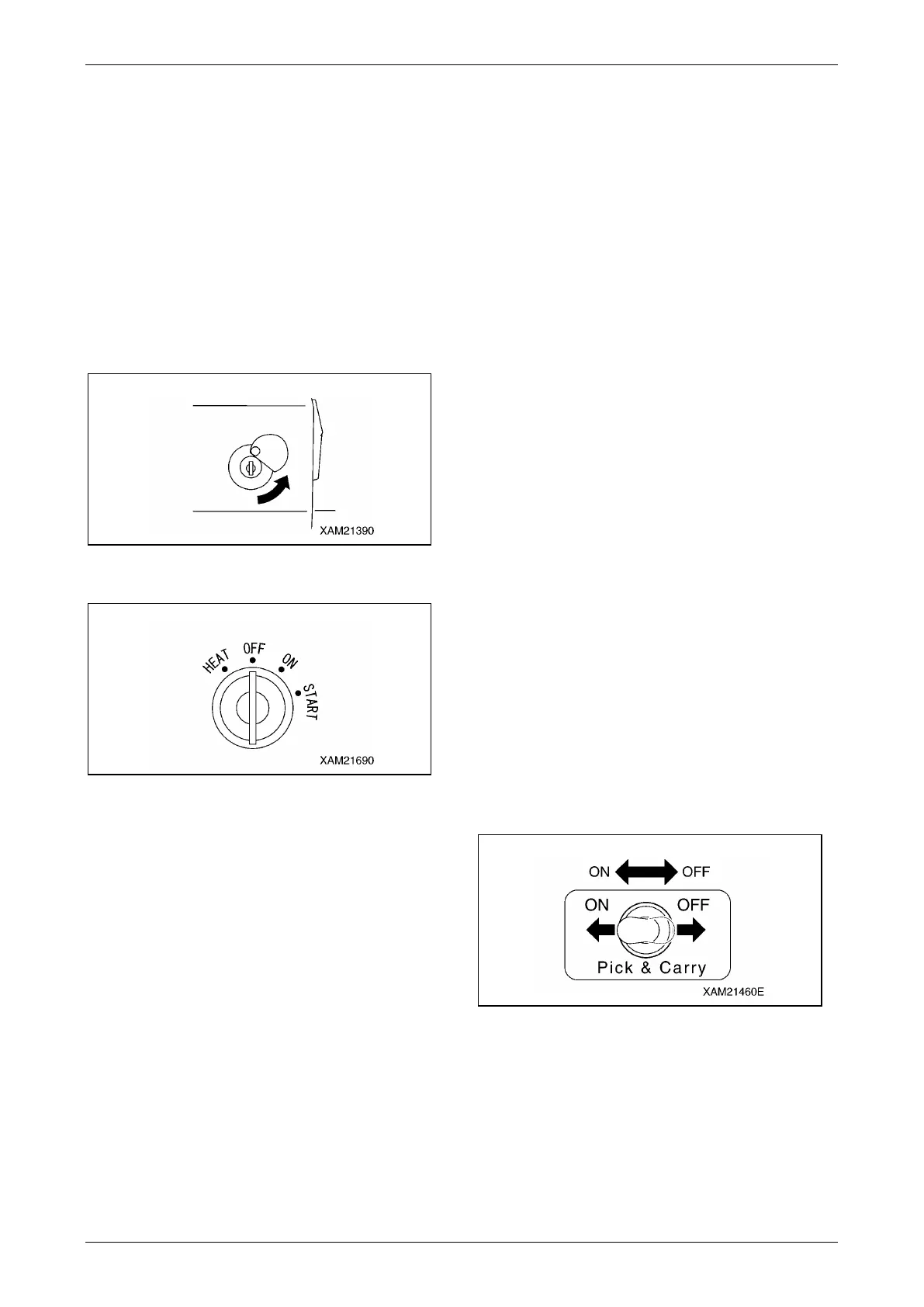

Fig. 4-20
Use this switch to start and stop the engine.
Fig. 4-21
• HEAT: Turn the key to this position when
starting the engine in the cold weather.
• OFF: You can insert/remove the key at this
position. All the switches in the
electrical system are turned off and the
engine stops.
• ON: Electricity runs into all the circuits.
• START: When the engine has started, release
your hand from the key. The key
automatically returns to the "ON"
position.
Pick & Carry Switch
WARNING! As a rule, Pick & Carry is
prohibited since the machine will be very
unstable and it accompanies the risk of
overturning.
If you have to perform Pick & Carry by
necessity, strictly observe the following
cautions.
• Strictly maintain the "Pick & Carry posture"
and observe "Rated total load chart for Pick
& Carry".
• Carefully study the situation at the worksite
and travel on the flat and solid ground.
Do not travel on soft ground, irregular
ground or ground with many obstacles, in
the water, in the snow, and on the frozen
surface.
• Switch the engine speed to low during Pick
& Carry. Do not make sudden start, sudden
stop, and sudden direction change. Keep
the hoisted load near ground so that it will
not slew.
• The overturning alarm buzzer will sound
when the machine tilts during crane
operation or Pick & Carry. Stop the work
immediately when the alarm buzzer sounds,
and try to avoid the danger of overturning.
• Always keep the moment limiter override
switch at "OFF" position when performing
Pick & Carry.
For more information, see "Pick & Carry
Operation" on page 4-84.
Use this switch when performing Pick & Carry.
Fig. 4-22
• ON: Push down the switch to the left.
The machine is now in the Pick & Carry
posture mode.
• OFF: Push down the switch to the right.
The Pick & Carry posture mode is
cancelled.
