1.2.11 FUSE BOX
Before replacing or inspecting fuses, be sure to turn the starter switch to the “OFF”
position.
CAUTION
Fuses protect electrical components and wires from being burnt out.
• This machine uses blade fuses. If a fuse is corroded and shows white powder, be sure
to change the fuse.
• If a fuse has melted, always check the cause in the circuit and fix the problem before
changing the fuse.
• Always make sure the replacement fuse is of the same capacity.

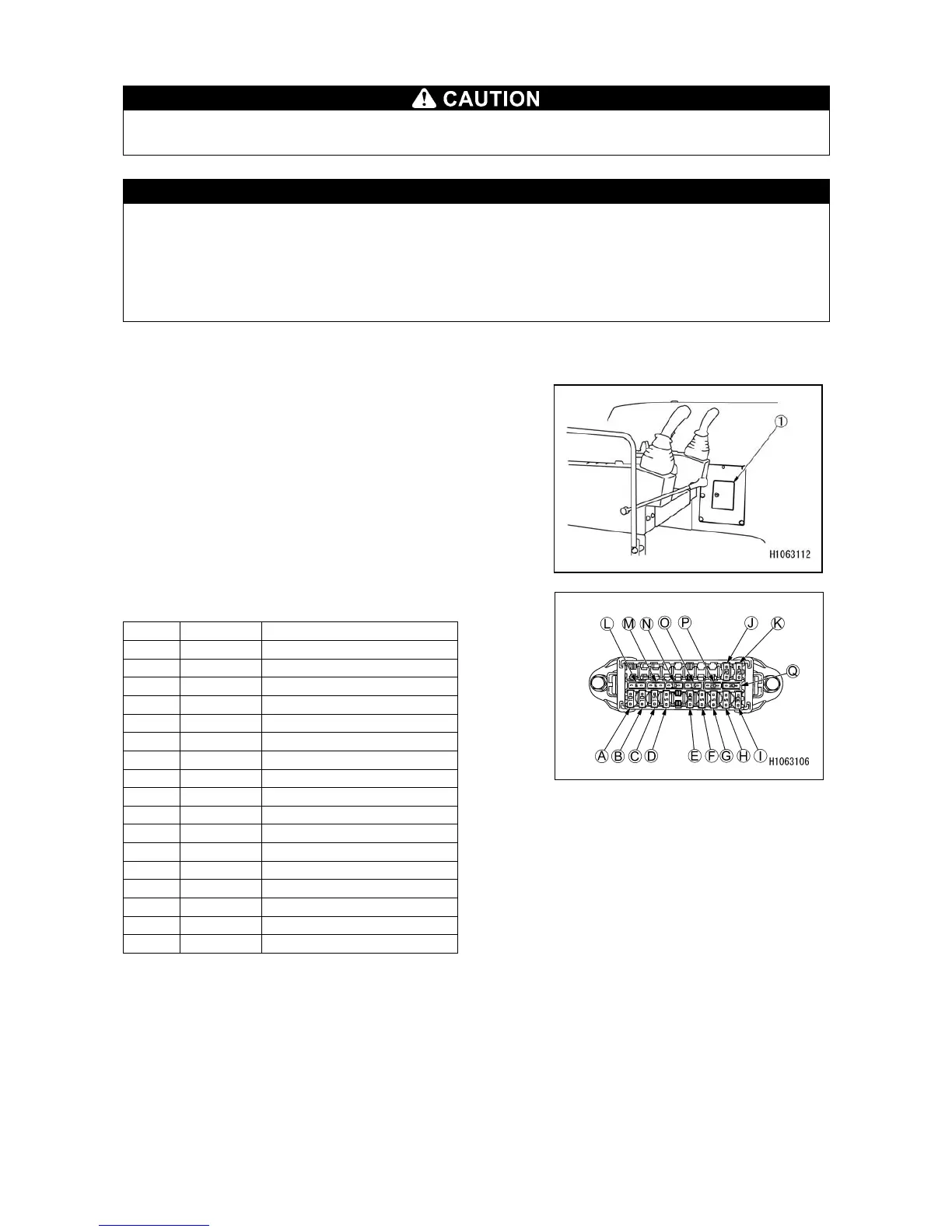

The fuse box is mounted inside the operation side cover
at the left side of the operator seat.
Inspect and replace fuses in the following procedure.
1. On the left side of the operator’s seat, below the
operation side cover, there is a hatch (cover) (1).
Open this hatch.
2. Pull out the fuses in the fuse box and inspect them.
Replace if necessary. Put back new or inspected
fuses into their original places.
[Fuse Capacities and Circuit Names]
Systems and capacities of fuses are as follows:
Index Capacity Name
A 10A Cigar socket
B 10A Override
C 15A Upper power
D 5A Radio remote control
E 30A Oil cooler
F 5A Horn
G 5A Controller power
H 5A Key switch
I 30A Charge
J 20A EGR
K 20A Engine control
L 5A Reserve
M 5A Reserve
N 10A Reserve
O 15A Reserve
P 20A Reserve
Q 30A Reserve
