Maeda MC815C - SEARCHER HOOK OPERATION AND TROUBLESHOOTING

399

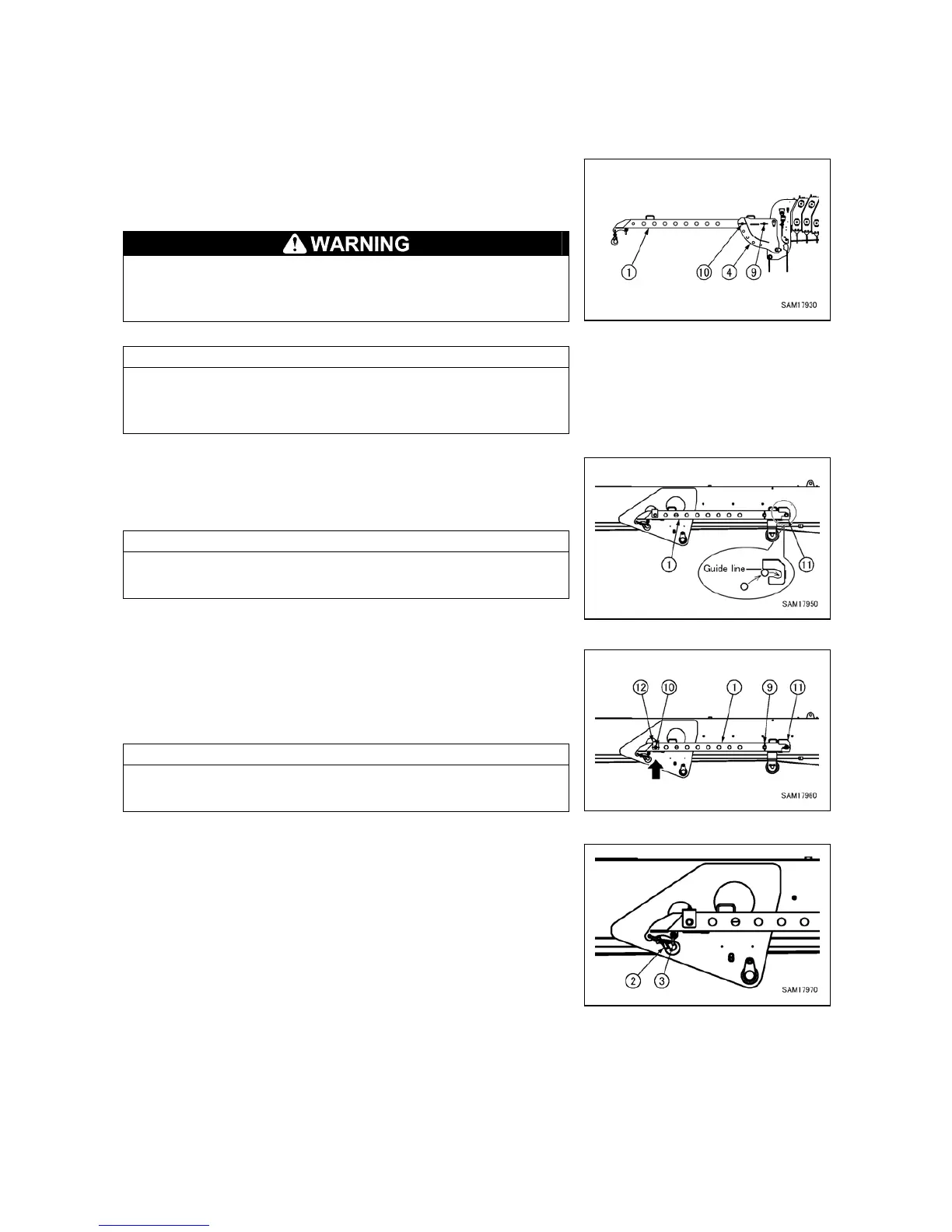

4.2 STOWING SEARCHER HOOK
When stowing the searcher hook mounted on the main boom tip, to the left section of the main boom, follow the
procedure below.
1. Pull out the pin B (10) and the pin A (9) in that order from the
searcher hook bracket (4) to remove the searcher hook boom
(1).
The searcher hook boom (1) will fall when the pin A (9) is
pulled out; be sure to support the boom and pull the pin out
slowly. Do not work on top of the crawler.
NOTES
You need these pins you have just pulled out (pin A (9) and pin B
(10)) to attach the searcher hook boom (1) to the stowage
bracket.
2. Align the searcher hook boom (1) with the stowage position of
the stowage bracket A (11) on the left section of the main
boom.
NOTES
Position the searcher hook boom (1) according to the guide line
on the stowage bracket A (11).
3. Align the searcher hook boom (1) with the stowage bracket B
(12) and insert the pin B (10) to attach the retaining pin.
4.
Stow the pin A (9) and attach the retaining pin.
NOTES
The pin A (9) and the pin B (10) are the same parts, so either of
them can be inserted.
5. Stow the swivel hook (2) hanging it to the shackle (3).
