Maeda MC815C - Name of each Section; Machine Units

74
1. NAME OF EACH SECTION

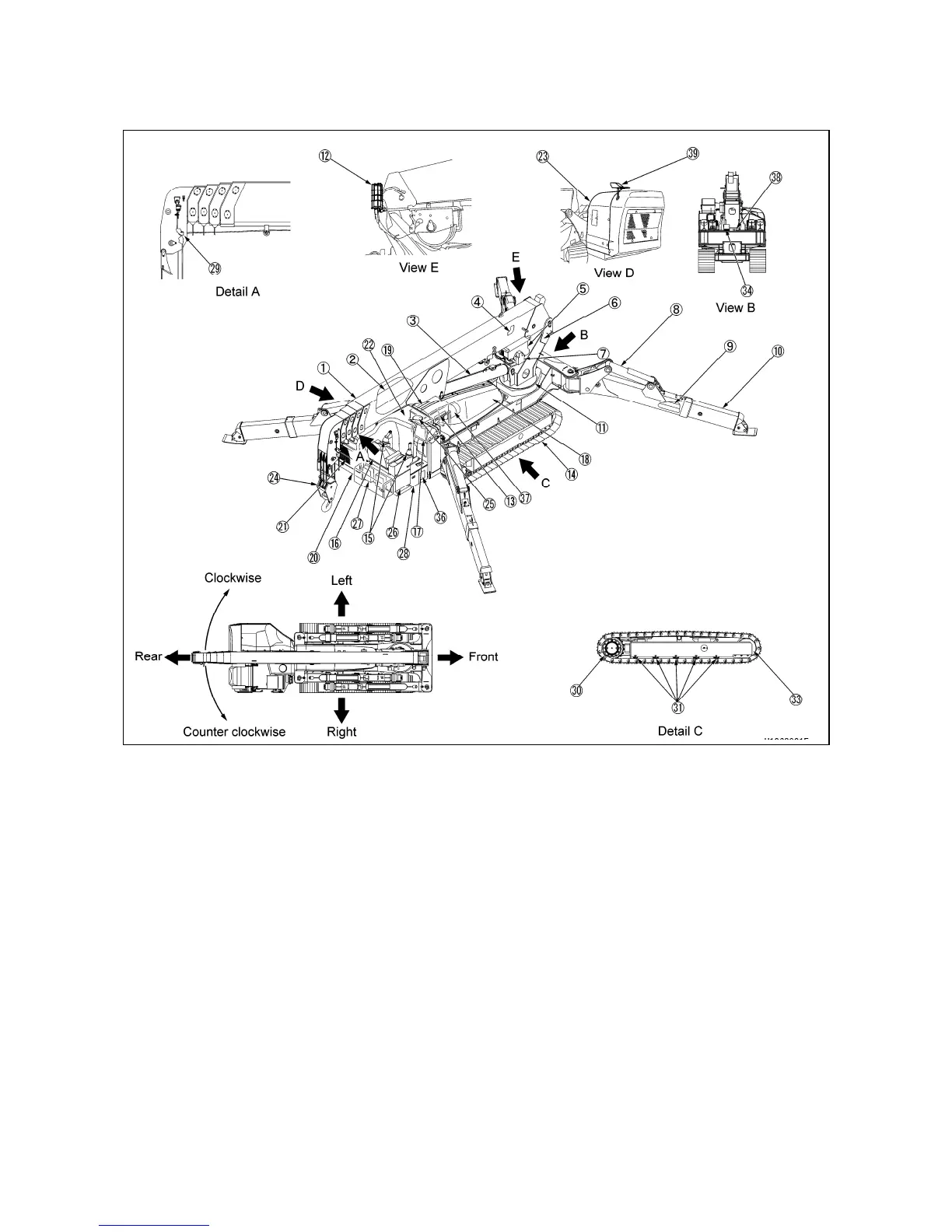

1.1 MACHINE UNITS
(1) Boom
(2) Boom telescoping
cylinder (Inside the
boom)
(3) Boom derricking
cylinder
(4) Angle indicator
(5) Winch
(6) Post
(7) Moment limiter
converter
(8) Outrigger ground
cylinder
(9) Outrigger extension
cylinder (incorporated
into box)
(10) Outrigger
(11) Slewing system
(12) Tricolor revolving
light
(13) Inverter panel (inside
machinery cover) (for
machines with engine
& electric motor)
(14) Crawler belt
(15) Operating sections
(16) Operator seat
(17) Monitor
(18) Machinery cover R
(19) Machinery cover L
(20) Radiator grille
(21) Radiator cover
(22) Operation side cover
(23) Engine cover
(24) Hook block
(25) Hydraulic oil tank
(inside operation side
cover)
(26) Fuel tank
(27) Power supply box (for
machines with engine
& electric motor)
(28) Battery box
(29) Over hoist detector
(30) Idler
(31) Track roller
(32) Travelling motor and
sprocket
(33) Carrier roller
(34) Headlight
(35) Remote-control
receiver (radio
control)
(36) Override switch
(37) Power unit (inside
machinery cover) (for
machines with engine
& electric motor)
(38) Front view camera
(39) Left side-view camera
