1.9 RADIATOR GRILLE
• Before removing the radiator grille, be sure to stop the engine and remove the key
from the starter switch.
• Do not remove the radiator grille immediately after operation while the engine is still
hot.
Since the radiator grille is relatively big in size, and mounted high on the machine, the
radiator grille must be removed or installed by two or more people.

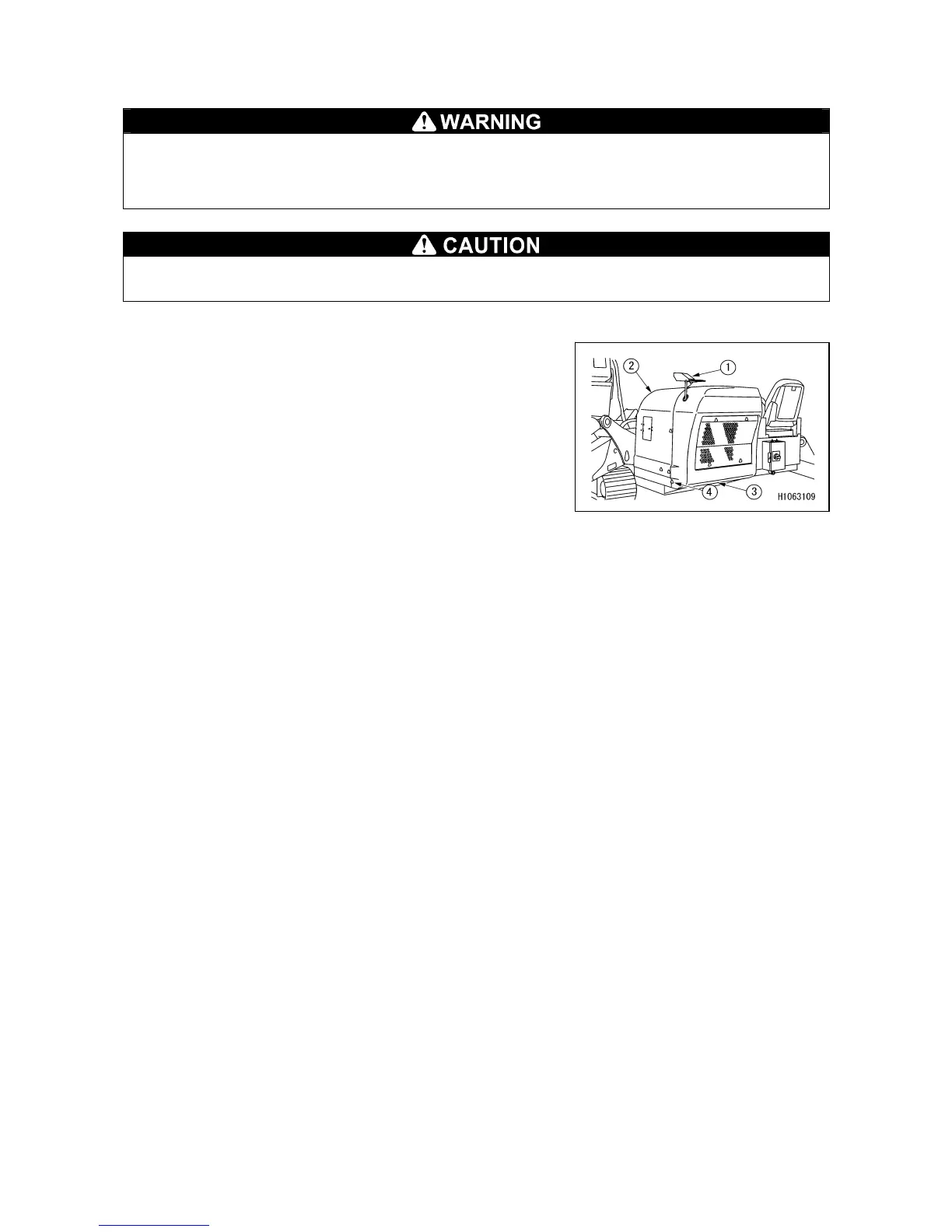

[1] REMOVING RADIATOR GRILLE
Remove the radiator grille with the following procedure
when performing inspection/maintenance inside the
radiator grille.
1. Remove the engine cover (2) by consulting
“OPERATION 1.10 ENGINE COVER”.
2. Remove the front left camera (1).
3. Remove the fixing bolts (2 bolts) securing the operation
side cover together with the radiator grille (3).
4. Remove the fixing bolts (4) (2 bolts) of the radiator grille
(3).
5. Remove the radiator grille (3) by pulling it backward.
[2] INSTALLING RADIATOR GRILLE
When you are finished with inspection/maintenance inside the radiator grille, install the radiator
grille in the following procedure:
1. Put back the radiator grille (3) into position.
2. Securely tighten the fixing bolts (4) (2 bolts) of the radiator grille (3).
3. Securely tighten the fixing bolts (2 bolts) securing the operation side cover together with
the radiator grille (3).
4. Install the front left camera (1).
5. Install the engine cover by consulting “OPERATION 1.10 ENGINE COVER”.
