Maeda MC815C - Replacement of Hydraulic Oil Tank Air Filter

316

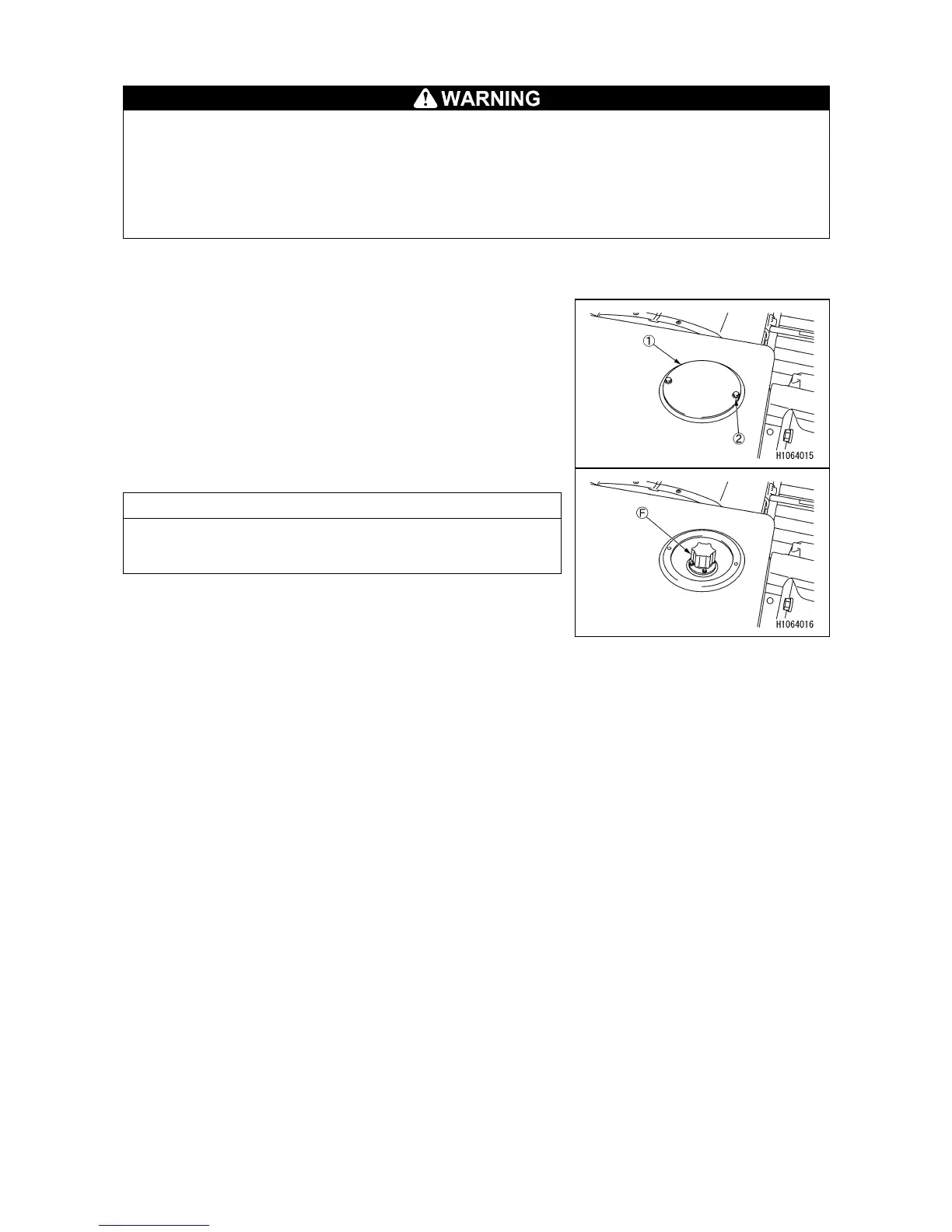

[6] REPLACEMENT HYDRAULIC OIL TANK AIR FILTER
• Various parts are at elevated temperatures immediately after engine operation. Do not
replace the filter immediately. Wait until the oil is cooled.
• The oil may spout out when the air filter of the hydraulic oil tank is removed.
Remove the air filter to relieve internal pressure by slowly rotating it first.
• Securely close the air filter after refilling.
If the air filter falls during the operation, hot oil may spout out of the pan, causing
burns.
1. Place the machine on a level surface.
2. Remove 2 pieces of mounting bolts (2), and remove the
inspection cover (1).
3. Remove the air filter (F) and replace with new one.
NOTES
The air filter (F) is cap-integrated type, so replace with the
cap.
4. Mount the inspection cover (1) with the mounting bolts
(2).
