4.3 REMOVING SEARCHER HOOK (CHANGING TO STANDARD
SPECIFICATION)
4.3.1 REMOVING SEARCHER HOOK BOOM

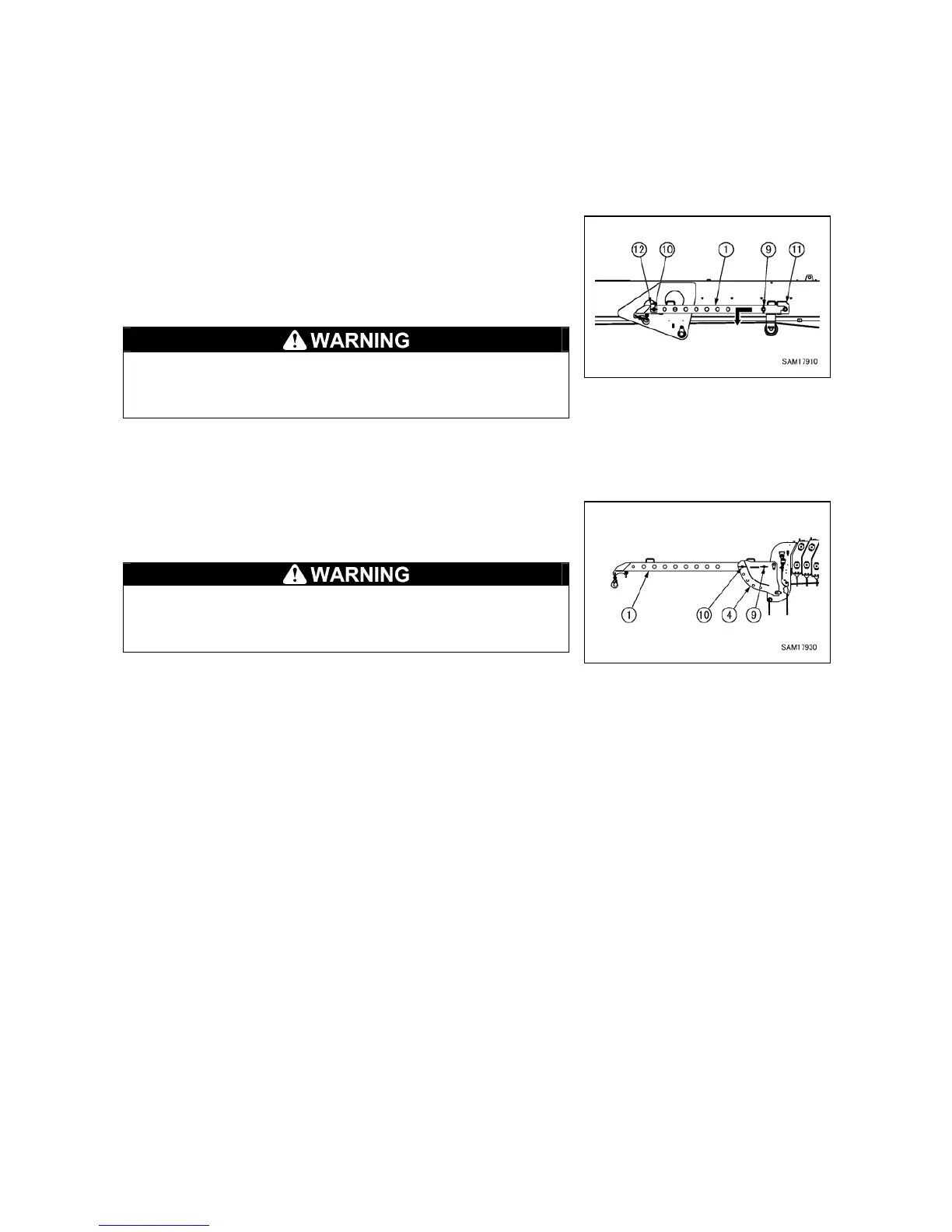

[When searcher hook boom is stowed]
1. Pull out the stowed pin A (9).
2. Pull out the pin B (10) from the stowage bracket B (12) and
slide the searcher hook boom (1) horizontally to remove it
from the stowage bracket A (11).
The searcher hook boom (1) will fall when the pin B (10) is
pulled out; be sure to support the boom and pull the pin out
slowly.
[When searcher hook boom is mounted]
1. Pull out the pin B (10) and the pin A (9) in that order from the
searcher hook bracket (4) to remove the searcher hook boom
(1).
The searcher hook boom (1) will fall when the pin A (9) is
pulled out; be sure to support the boom and pull the pin out
slowly.
