[8] INSPECTING/CLEANING OF RADIATOR AND OIL COOLER FINS
Dust may blow in all directions when compressed air is used. Always wear goggles and
mask.
CAUTION
• To prevent damage on the fins during the use of the compressed air, keep the pressure
of the compressed air to 0.19 MPa (1.9 kg/cm² and apply it away from the fins.)
Damage on the fins will cause water leakage or overheating.
• At a dusty worksite, check the fins every day and clean as needed.

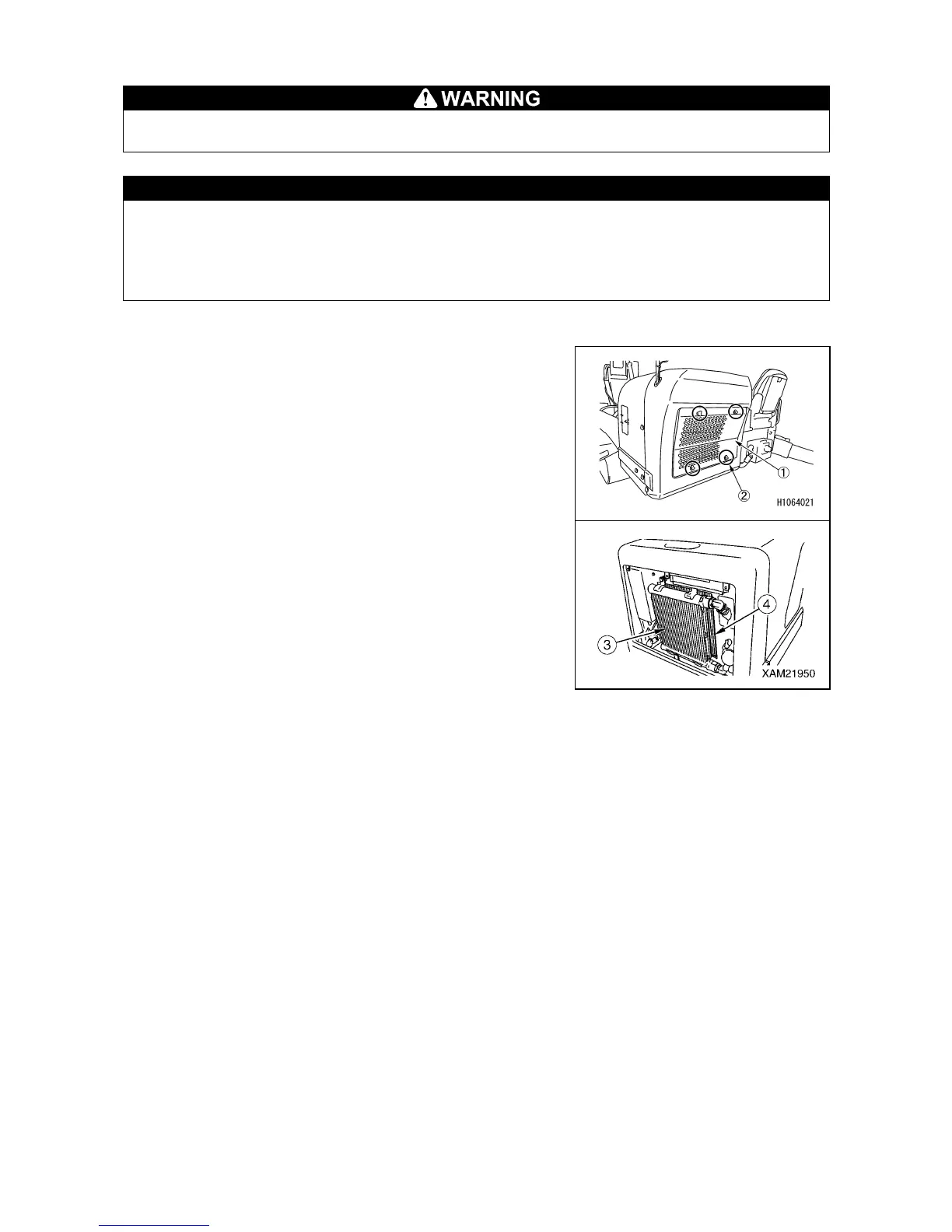

1. Place the machine on a level surface.
2. Remove the mounting bolts (2) (4 bolts) and then
remove the radiator cover (1).
3. Apply the compressed air (less than 0.19 MPa {1.9
kg/cm²}) to the oil cooler (3) and radiator (4) to remove
the mud and dust clogged in the fins.
4. After cleaning, place the radiator cover (1) on the
original position and tighten the mounting bolts (2) (4
bolts) securely.
