Maeda MC815C - Change to Pick & Carry Posture from Crane Mode Posture

177
2.26.2.2 CHANGE TO PICK & CARRY POSTURE FROM CRANE MODE POSTURE
1. If the machine is hoisting a load, unload and make
no-load condition.
2. Set the crane to the below conditions
• Boom is fully retracted
• Boom angle is more than 60 degrees
• Slew boom to within 180±5 degrees
• No load hoisted
NOTES

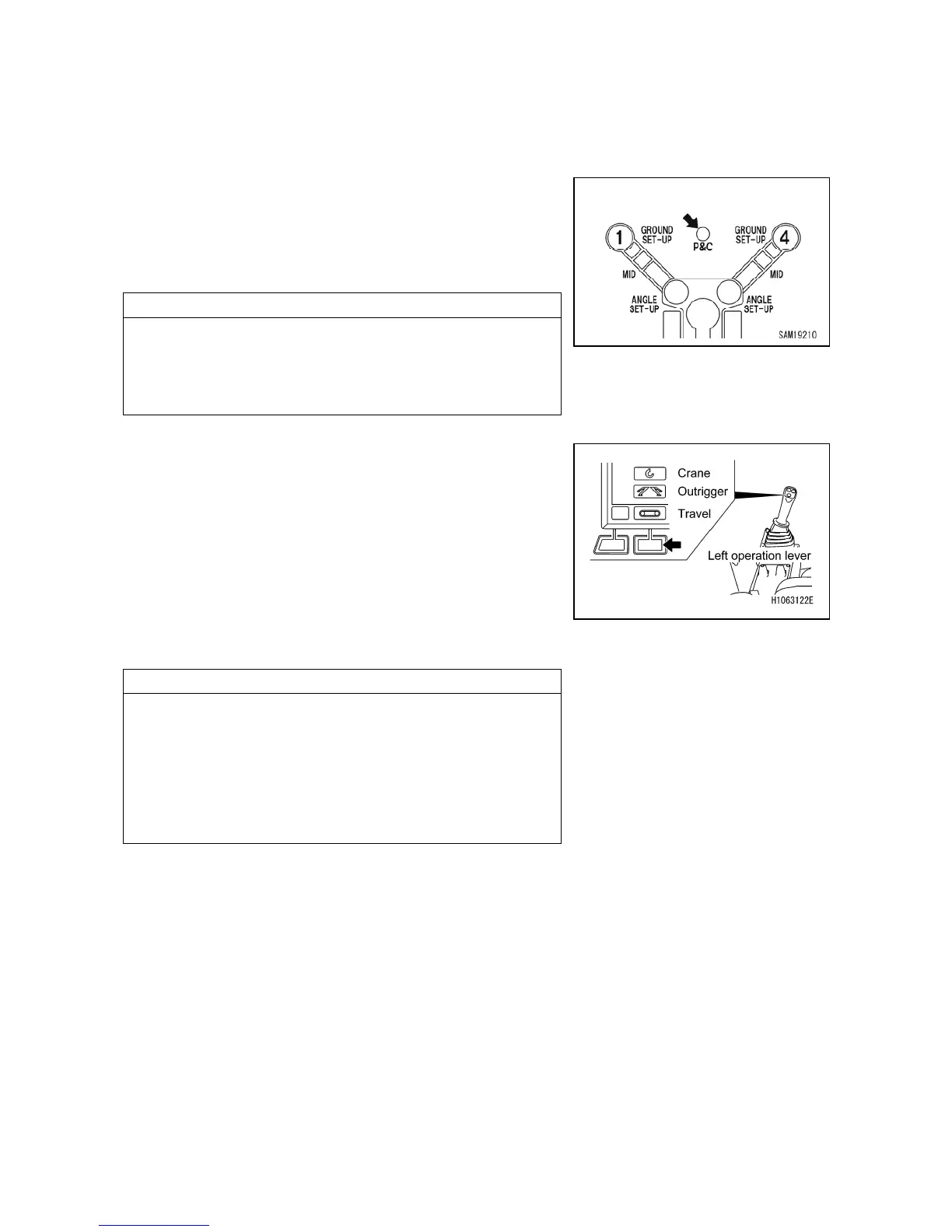

If all the above conditions are met, the Pick & Carry
position lamp lights in yellow and outriggers can be
operated.
If it is not lit in yellow, outrigger cannot be operated, so
check the machine condition.
3. Change the mode to Outrigger with the mode selector
switch (1) (Travel / Outrigger / Crane) on the monitor or
with the left control lever.
4. Refer to “OPERATION 2.24 OUTRIGGER STOWAGE
OPERATION” in this manual and stow the outriggers.
NOTES
• Pick & carry is possible even though the outriggers are
not completely stowed. However, it is recommended to
have outriggers completely stowed for pick & carry
operation.
• If the machine inclines more than 3 degrees during
outrigger operation, outrigger “IN” becomes restricted.
Yet “OUT” operation is still available, so set the machine
level and try again.
