4.4 MOUNTING SEARCHER HOOK (CHANGING TO SEARCHER HOOK
SPECIFICATION)
4.4.1 MOUNTING SEARCHER HOOK BOOM
First of all, check that the bracket is attached.
If it is not attached, mount the searcher hook boom after attaching the bracket referring to “4.4.2 Attaching
bracket”.
[To attach to stowage bracket]

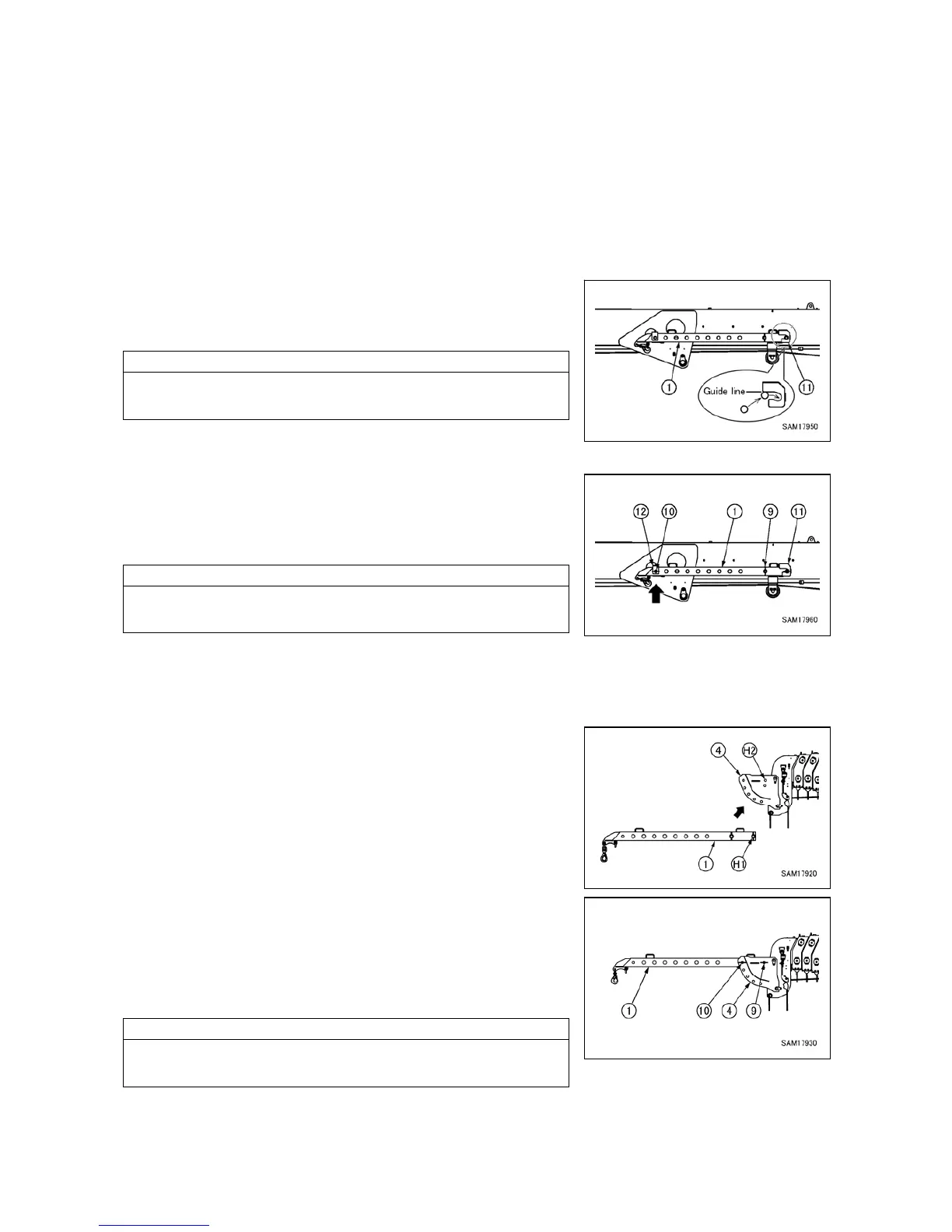

1. Align the searcher hook boom (1) with the stowage position of
the stowage bracket A (11) on the left section of the main
boom.
NOTES
Position the searcher hook boom (1) according to the guide line
on the stowage bracket A (11).
2. Align the searcher hook boom (1) with the stowage bracket B
(12) and insert the pin B (10) to attach the retaining pin.
3.
Stow the pin A (9) and attach the retaining pin.
NOTES
The pin A (9) and the pin B (10) are the same parts, so either of
them can be inserted.
[To attach to searcher hook bracket]
1. Align the hole (H1) of the searcher hook boom (1) with the
hole (H2) of the searcher hook bracket (4) on the main boom
tip.
2. Insert the pin A (9) to the aligned hole from the left side and
attach the retaining pin.
3. In the same manner, insert the pin B (10) from the left side and
attach the retaining pin.
NOTES
The pin A (9) and the pin B (10) are the same parts, so either of
them can be inserted.
