1.10 ENGINE COVER
• Before removing the engine cover, be sure to stop the engine and remove the key from
the starter switch.
• Do not remove the engine cover immediately after the operation while the engine is
still hot.
Since the engine cover is relatively big in size, and mounted high on the machine, the
engine cover must be removed or installed by two or more people.
[1] ENGINE COVER
Remove the engine cover with the following procedure
when performing inspection/maintenance inside the
engine cover.

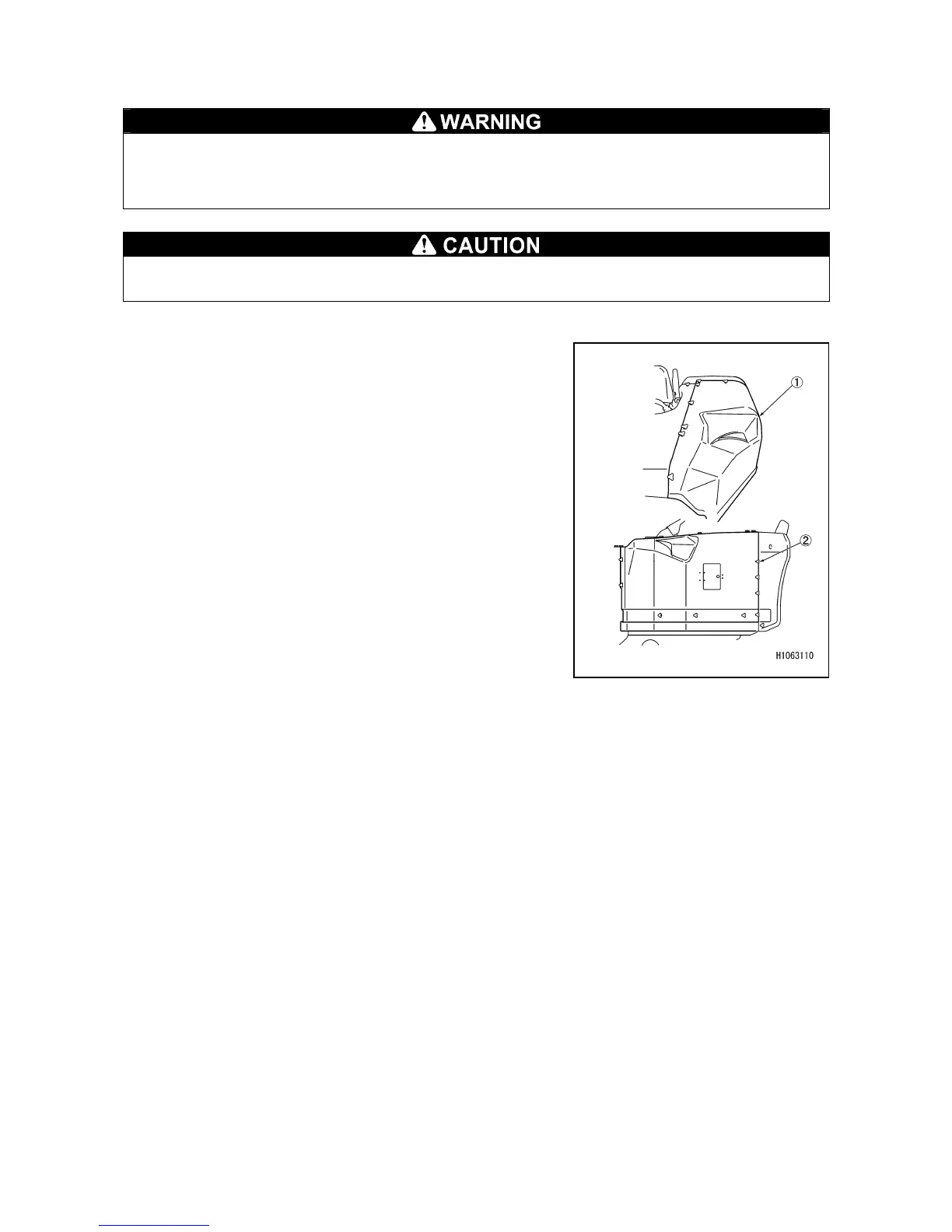

1. Remove the fixing bolts (2) (10 bolts) of the engine
cover (1).
2. Remove the engine cover (1).
[2] INSTALLING ENGINE COVER
When you are finished with inspection/maintenance inside
the engine cover, install the engine cover in the following
procedure:
1. Put back the engine cover (1) into position.
2. Securely tighten the fixing bolts (2) (10 bolts) of the
engine cover (1).
