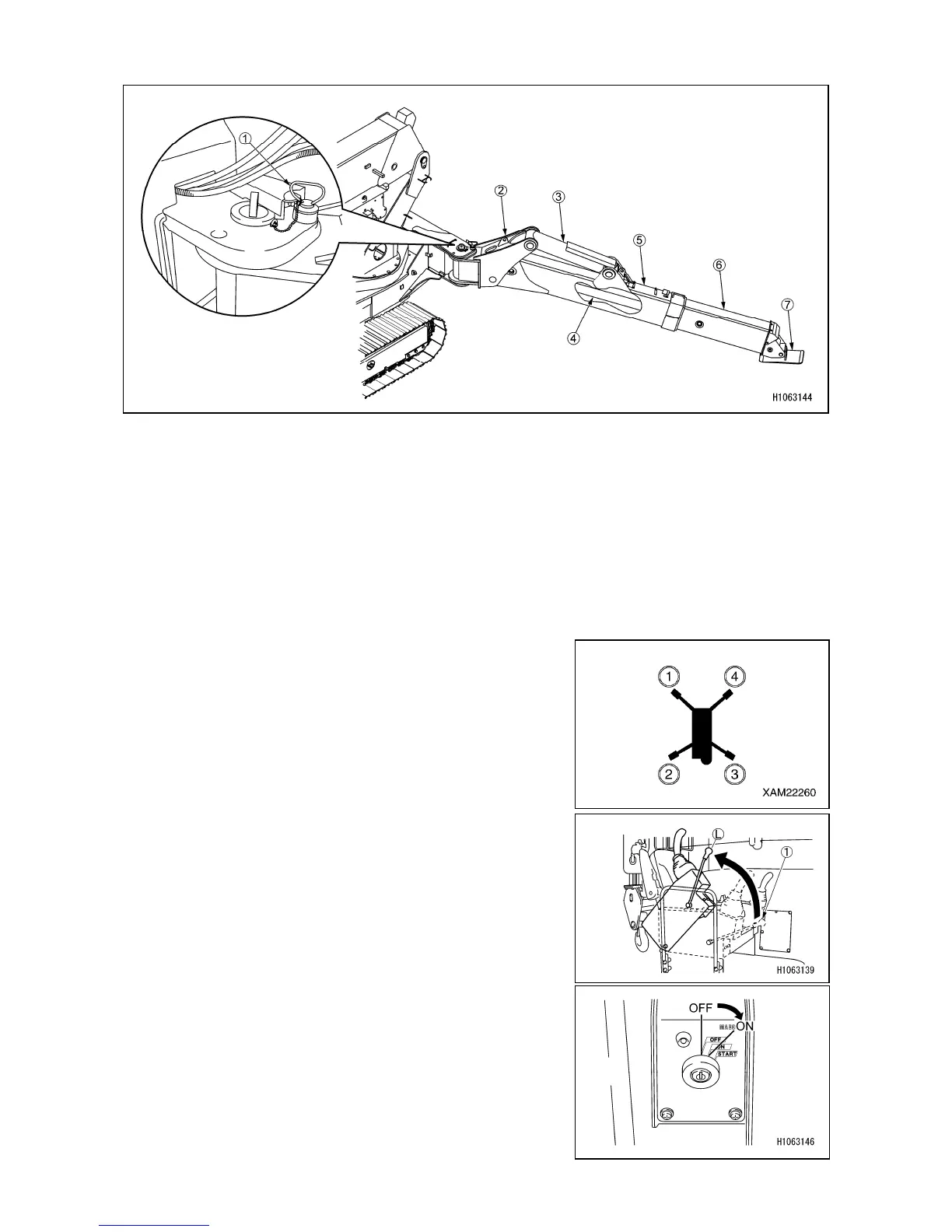

2.14.1 OUTRIGGER COMPONENTS
(1) Positioning pin
(2) Outrigger rotary
(3) Outrigger ground contact cylinder
(4) Outrigger extension cylinder
(5) Outer box
(6) Inner box
(7) Outrigger adapter (plate)
2.14.2 OUTRIGGER SETUP OPERATION
[1] TASKS TO BE PERFORMED BEFORE STARTING THE ENGINE
There are 4 outriggers installed on the machine.
The following explains the setting procedure for only one
“OUTRIGGER (4)”. Repeat the same procedure for the
other three outriggers.
1. Shift the lock lever (1) into the lock (L) position.
2. Turn the starter switch to the “ON” position.
