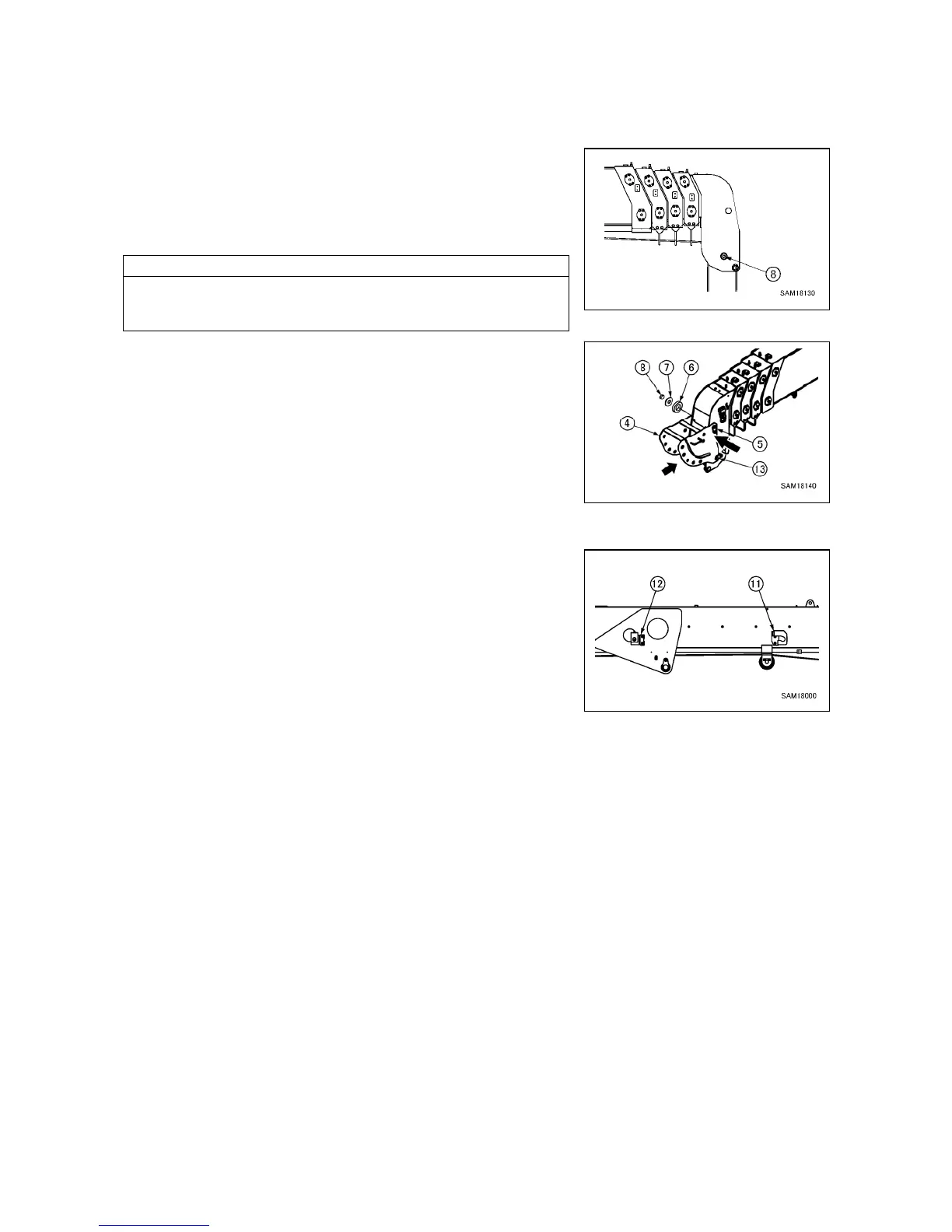

4.4.2 ATTACHING BRACKET
[Attaching searcher hook bracket]
1. Tighten the nut (8) on the tip side of the head pin (13).
2. Adjust the position of the searcher hook bracket (4) by
hanging it from the head pin (13) and insert the point pin (5) to
secure it.
NOTES
The searcher hook bracket (4) should be hung from the head pin
(13) by its design; slide in from the front to attach it.
3.
Attach the collar (6), the plate (7) and the nut (8) to the tip side of
the point pin (5).
4. Tighten the nut (8) you loosened in step 1.
[Attaching stowage bracket]
1. Fasten the stowage bracket A (11) with two bolts to the left
section of the main boom.
2. Fasten the stowage bracket B (12) with two bolts to the left
section of the main boom.
