5.2 MOMENT LIMITER FUNCTIONS
CAUTION
When the fly jib is attached to the main boom tip, the mode changes to the fly jib mode, and the
moment limiter and the machine operate as follows:
• The rated total load value shown in the monitor is switched to the value for a fly jib.
• The crane operation is fixed to “Crane Low”.
• The hook sling number is fixed to “one hook sling”.
• The “P mode” hoisting mode is disabled.
• The fly jib angle will not be lower than the level to the ground.

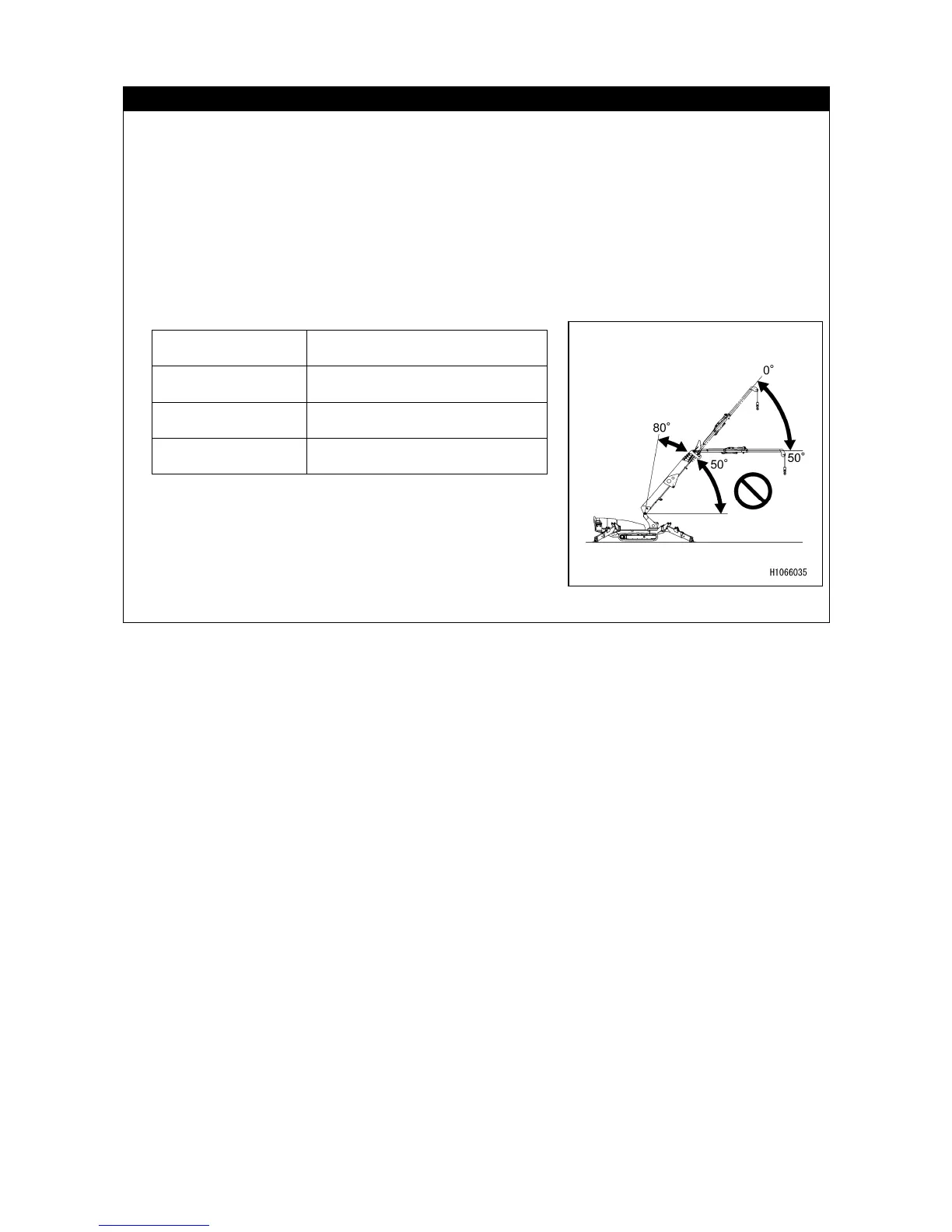

• The fly jib and crane operation are disabled when the main boom angle is in the range shown
in the table below.
Also, the angle cannot be in the range in the table below, unless the main boom length is less
than “6.0 m” and with “no load”.
Outrigger
extension
Main boom angle
Maximum
More than 0 degree and less
than 50 degrees
Medium
More than 0 degree and less
than 70 degrees
Minimum
More than 0 degree and less
than 70 degrees
5.3 RECOVERY OPERATION FROM AUTOMATIC STOP
Refer to the “OPERATION 1.5.3 [2] RECOVERY OPERATION FROM AUTOMATIC STOP” for more
information about recovery operation.
