134
1.12 OPERATION SIDE COVER
[1] REMOVING THE OPERATION SIDE COVER
Remove the operation side cover with the following
procedure when performing inspection/maintenance inside
the operation side cover:

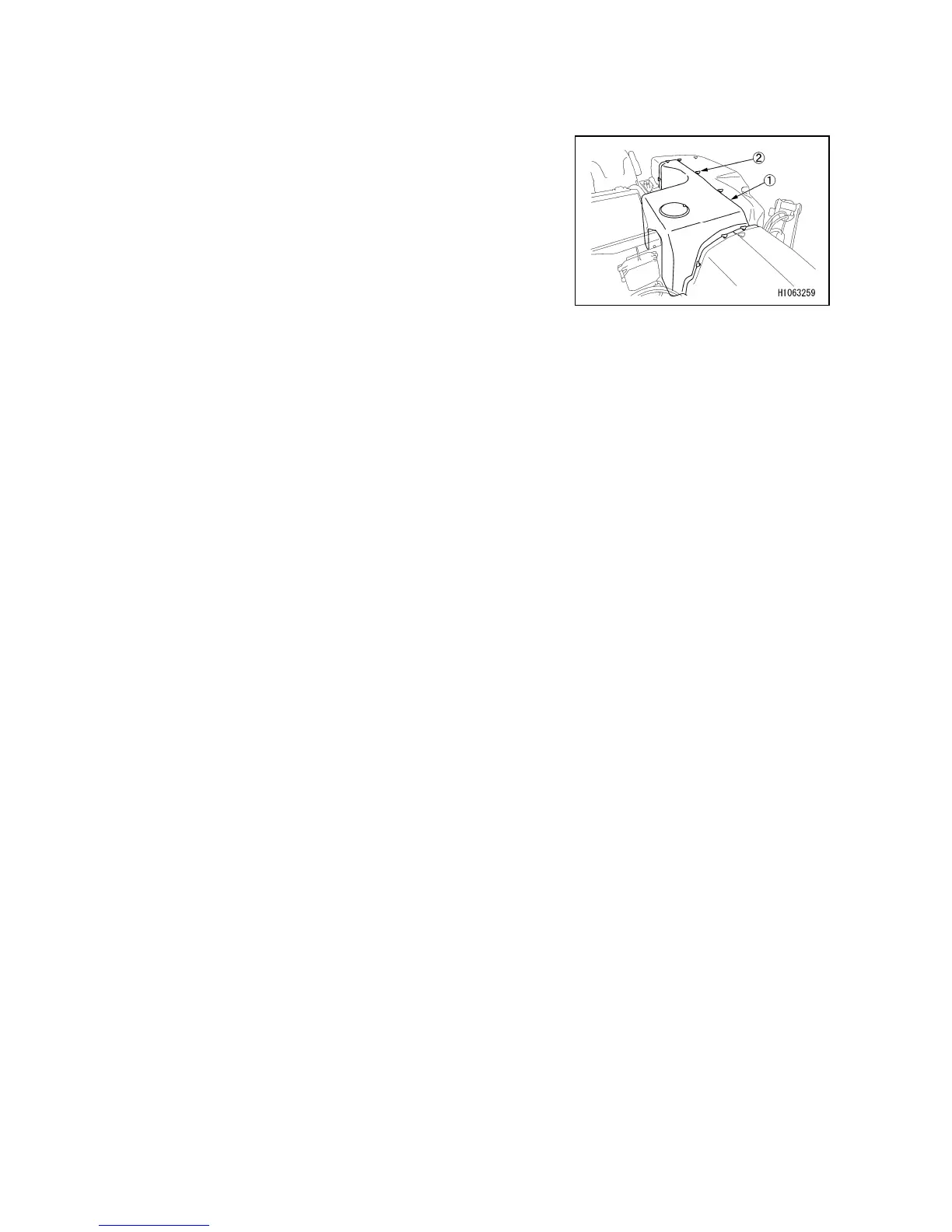

1. Remove the 10 bolts (2) on the operation side cover (1).
2. Remove the operation side cover (1).
[2] INSTALLING THE OPERATION SIDE COVER HATCH
When you are finished with inspection/maintenance inside the operation side cover, install the
operation side cover with the following procedure:
1. Put back the operation side cover (1) into position.
2. Securely tighten the fixing bolts (2) (10 bolts) of the operation side cover (1).
