9.3 RATED TOTAL LOAD CHART
CAUTION
• The rated total load includes searcher hook mass (60 kg).
• When the searcher hook is used, the rated total load varies depending on the outrigger
extension, the number of main boom sections, and the working radius. Check the available
range in the rated total load chart before operating.
• Hoisting operation is not possible when the boom angle is less than 30 degrees in the 5th
stage of the main boom.

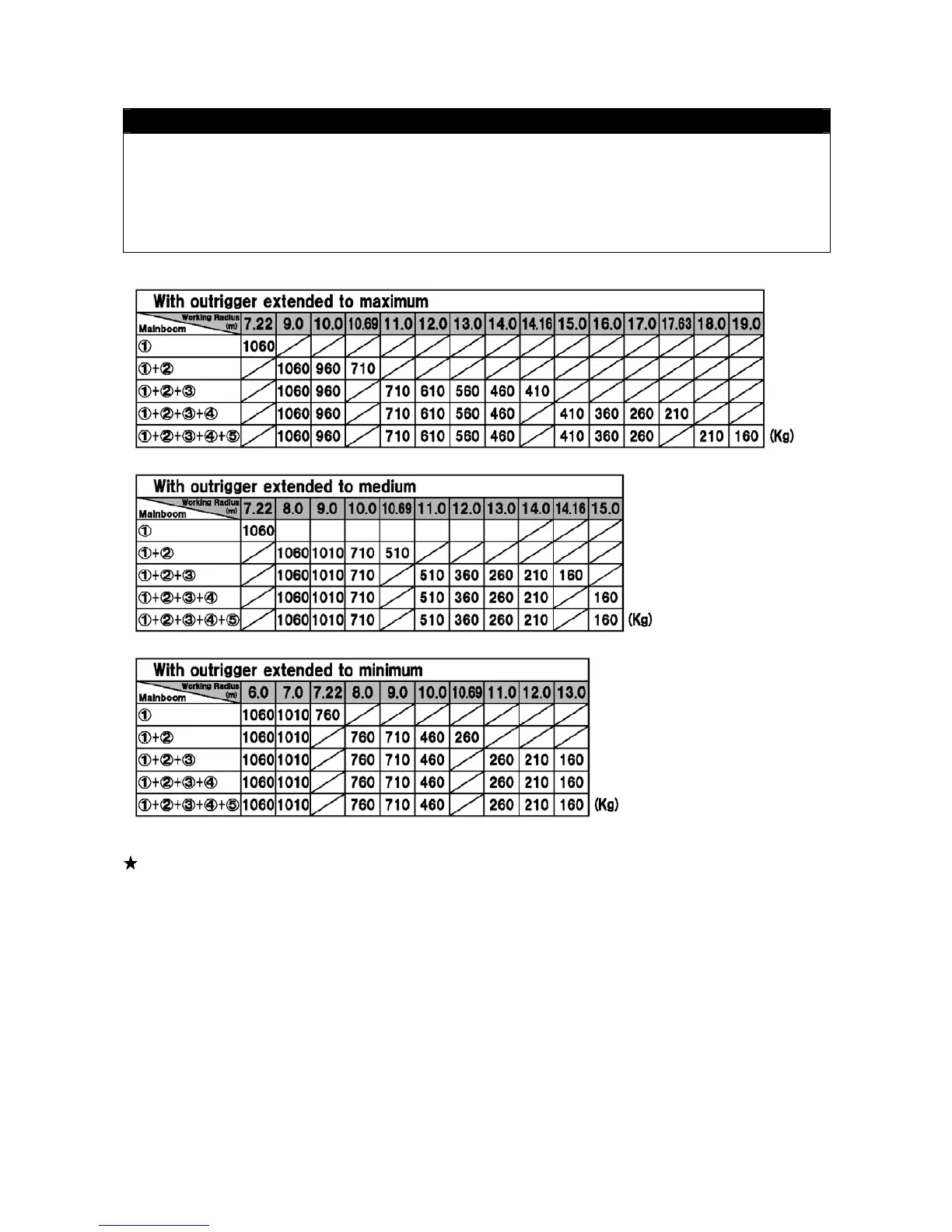

The rated total load chart indicates the load including the mass of hoisting accessories (searcher hook
mass: 60 kg).
