1.2.1. DESCRIPTION OF MONITOR

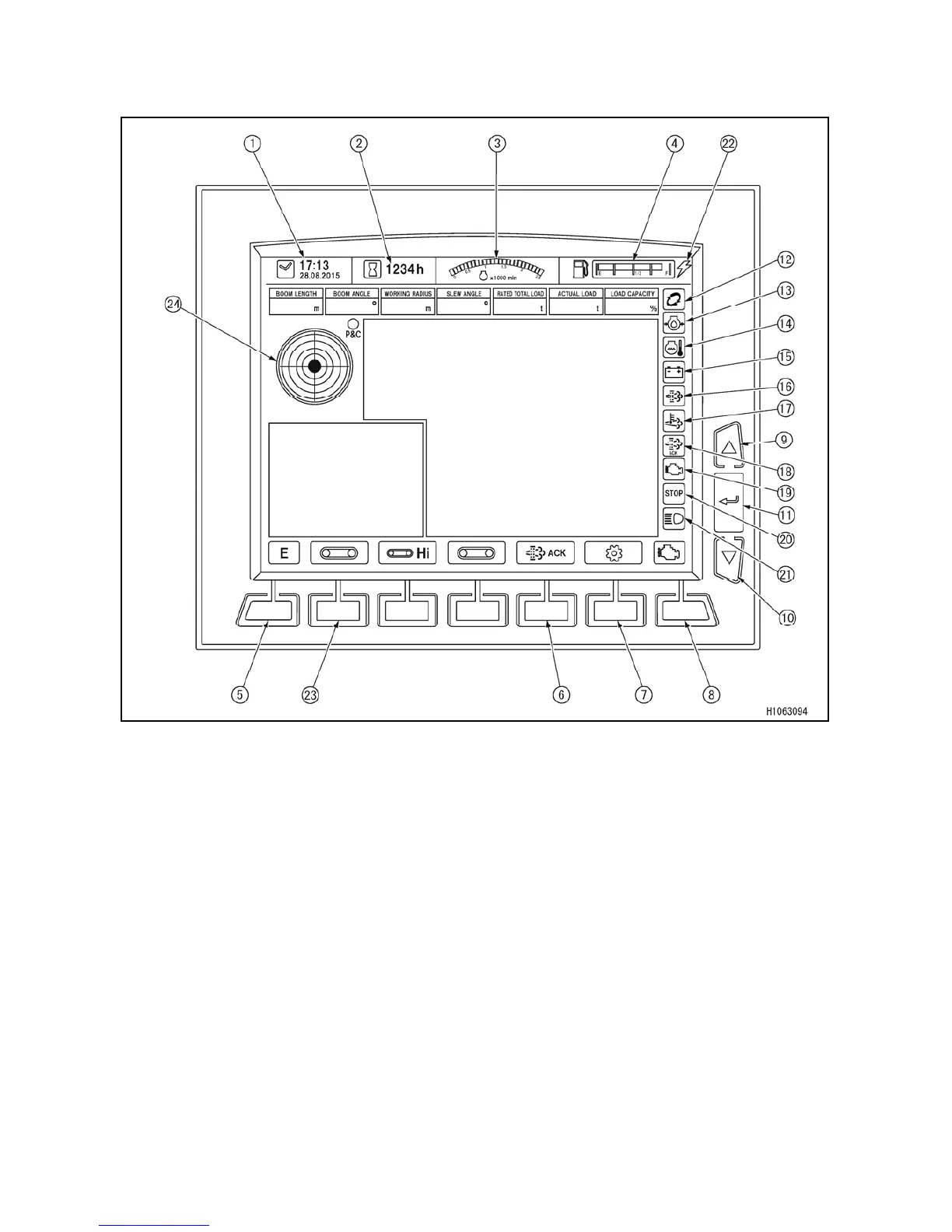

[1] MONITOR DISPLAY (COMMON TO ALL MODES)
(1) Date & Time display
(2) Hour meter
(3) Engine speed
(4) Fuel gauge
(5) Eco mode switch /
Boom lift bypass switch
(6) DPF regeneration
switch
(7) Setting switch
(8) Engine and electric
motor switch
(9) Pop-up select switch
(up)
(10) Pop-up select switch
(down)
(11) Enter switch
(12) Replacement reminder
(13) Engine oil pressure
(14) Engine coolant
temperature
(15) Charge
(16) DPF regeneration
request lamp
(17) Exhaust temperature
alarm lamp
(18) DPF regeneration lamp
(19) Failure
(20) Emergency stop lamp
(21) Light
(22) Electricity on lamp
(23) Mode selector switch
(travel/outrigger/crane)
(24) Levelling instrument
