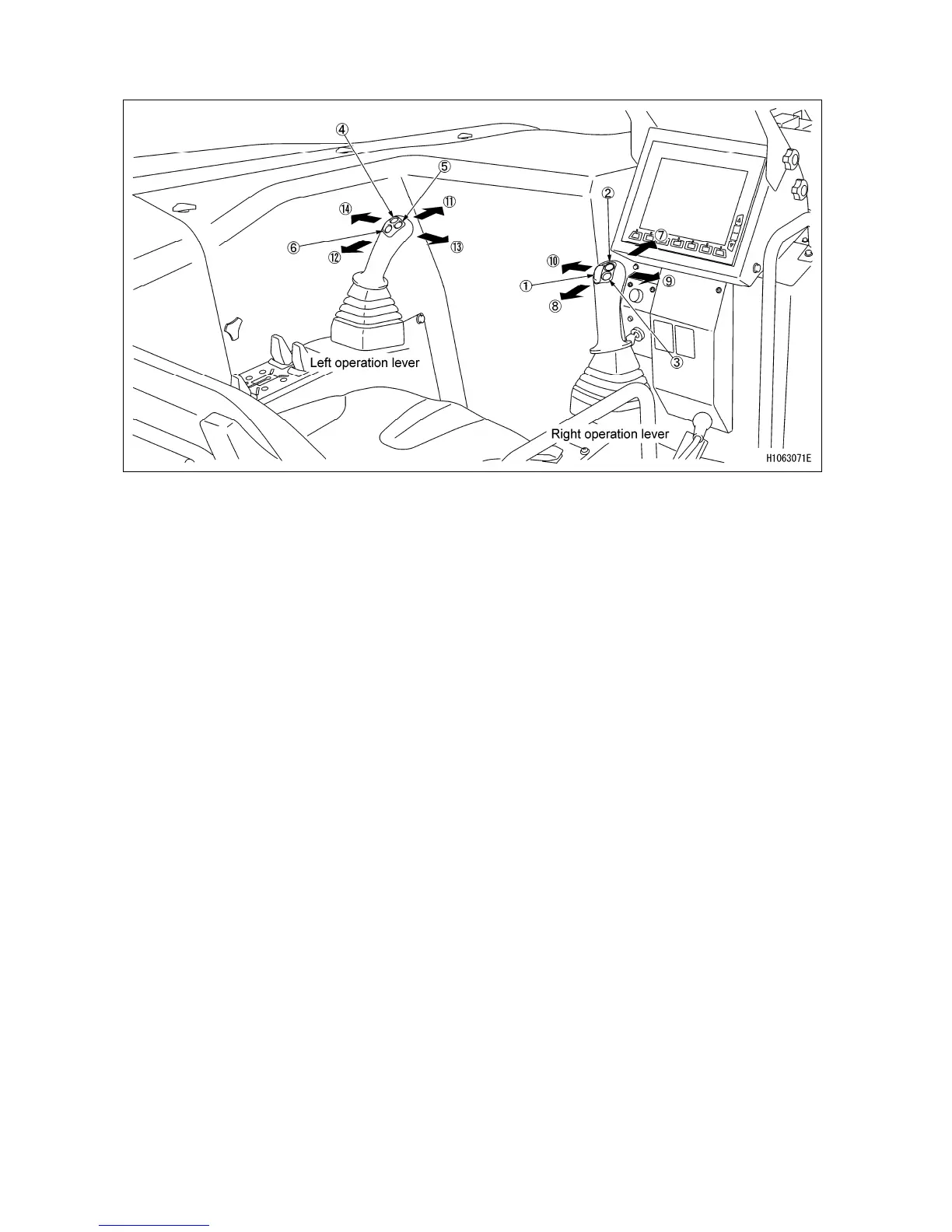

1.2.2. NAMES AND DESCRIPTION OF CONTROL LEVERS
[Traveling mode]
(1) Accelerator up/down
(pop-up up/down)
(2) Horn
(3) Pop-up Enter
(4) Mode selector switch
(Travelling Hi/Low)
(5) Mode selector switch
(Carry/Pick)
(6) Mode selector switch
(Travelling/Outrigger/
Crane)
(7) Right travelling forward
(8) Right travelling backward
(9) -
(10) -
(11) Left travelling forward
(12) Left travelling backward
(13) -
(14) -
[Outrigger mode]
(1) Accelerator up/down
(pop-up up/down)
(2) Horn
(3) Pop-up Enter
(4) Mode selector switch
(Extension/Ground)
(5) Mode selector switch
(Manual/Auto)
(6) Mode selector switch
(Travelling/Outrigger/
Crane)
(7) -
(8) -
(9) -
(10) -
(11) -
(12) -
(13) -
(14) -
[Crane mode]
(1) Accelerator up/down
(pop-up up/down)
(2) Horn
(3) Pop-up Enter
(4) Mode selector switch
(Crane Hi/Low)
(5) Mode selector switch
(Hook/Fully automated
stowage)
(6) Mode selector switch
(Travelling/Outrigger/
Crane)
(7) Unwinding
(8) Winding
(9) Boom lowering
(10) Boom raising
(11) Boom extension
(12) Boom retraction
(13) Boom clockwise slewing
(14) Boom counter-clockwise
slewing
