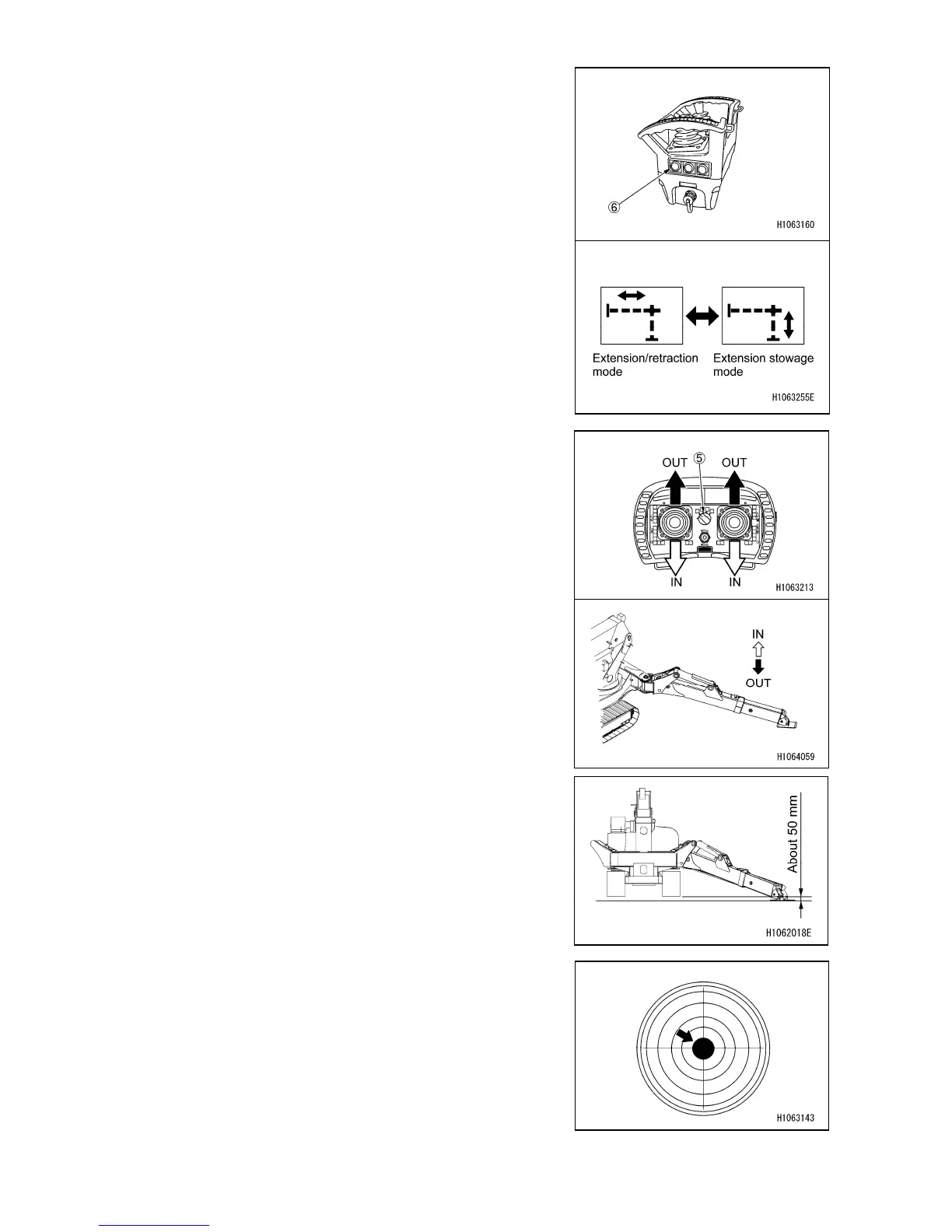

4. Change the mode to Extension stowage with the Speed
selector/Outrigger select switch (6) on the transmitter.
5. When the grounding cylinder is extended and the
adapter is grounded by manipulating the control lever,
release your hand from the operation lever.
6. Operate the above step for the other two outriggers with
the mode selector switch (5) to allow them to make
contact with the ground.
Left lever: outrigger 1 or 2
Right lever: outrigger 4 or 3
7. After all outrigger adapters have been grounded, when
the grounding cylinders are extended by manipulating
the control lever, and the machine is slightly raised up
from the ground, release you hand from the switch.
Repeat the above steps to gradually raise the machine
from the ground so that the crawler belts position about
50 mm from the ground.
8. When the machine is raised up from the ground with a
height of about 50 mm, manipulate the control lever
while checking the position of the yellow bubble in the
leveling instrument to keep the machine in a horizontal
position.
