294

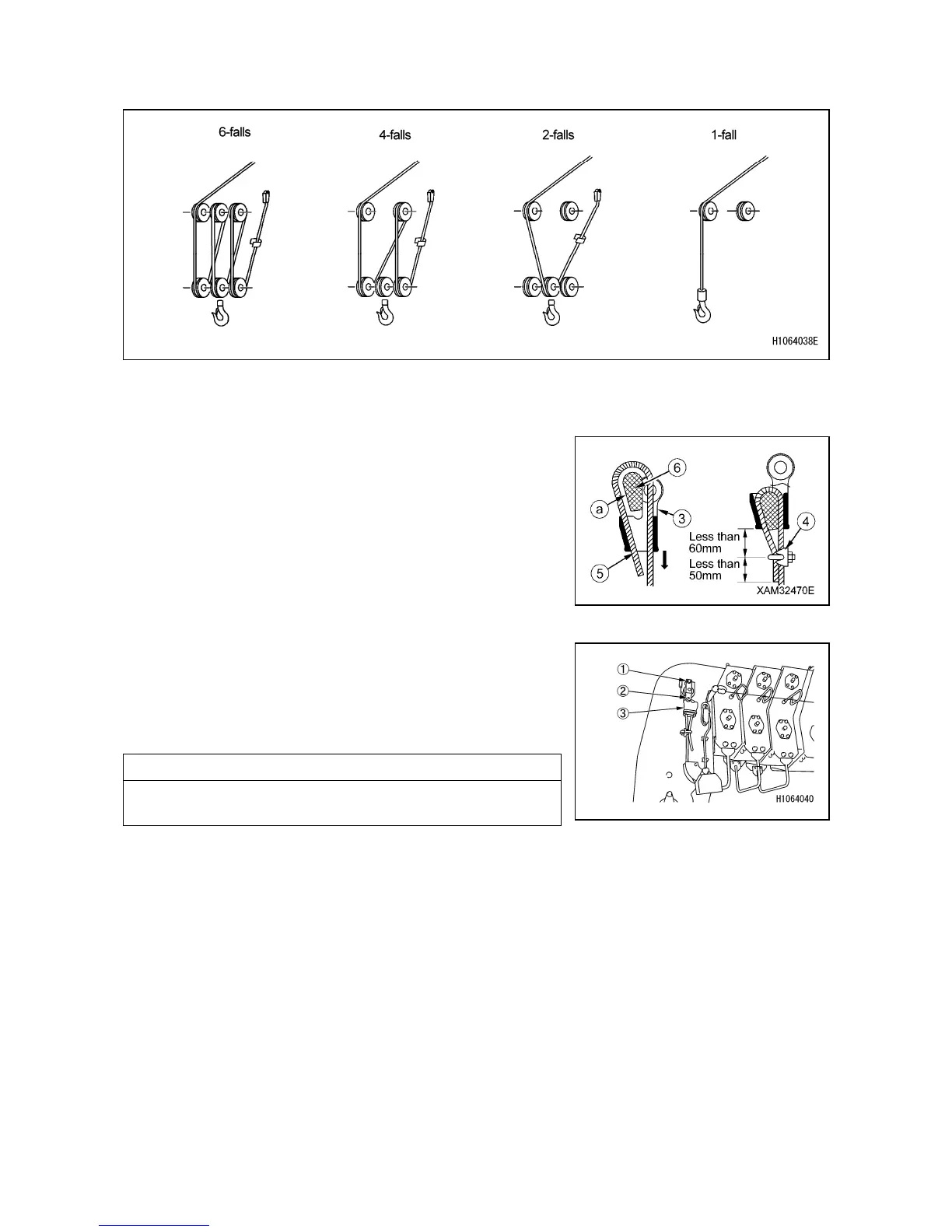

4. According to the number of falls of the wire rope, draw the wire rope through the load
sheave of the boom tip and the hook block sheave as shown in the figure below.
5. Draw the end of wire rope (5) through the weight of
over hoist detector.
6. Secure the end of the wire rope (5) to the wire socket
(3), following the procedure below.
(1) Draw the wire rope (5) through the wire socket (3)
as shown in the figure to the right.
(2) The rope wedge (6) should be in position (a), and
yank at the wire rope (5) in the direction indicated
by the arrow.
7. Attach the wire clip (4) to the wire rope (5) according to
the dimension described in the figure to the right.
8. Secure the wire socket (3) to the boom with the wire
socket pin (2), and tighten the wire socket pin mounting
bolt (1).
9. Pull the right operation lever inward or push down the
left operation lever forward to raise the hook block.
NOTES
Winch operation is allowed only after the hook block is
raised.
10. Make sure the boom is fully extended and raised.
11. With the wire rope (5) held under tension, operate the
right operation lever to “UP” (pull it toward you) to wind
up the wire rope (5) on to the winch drum (9).
