367

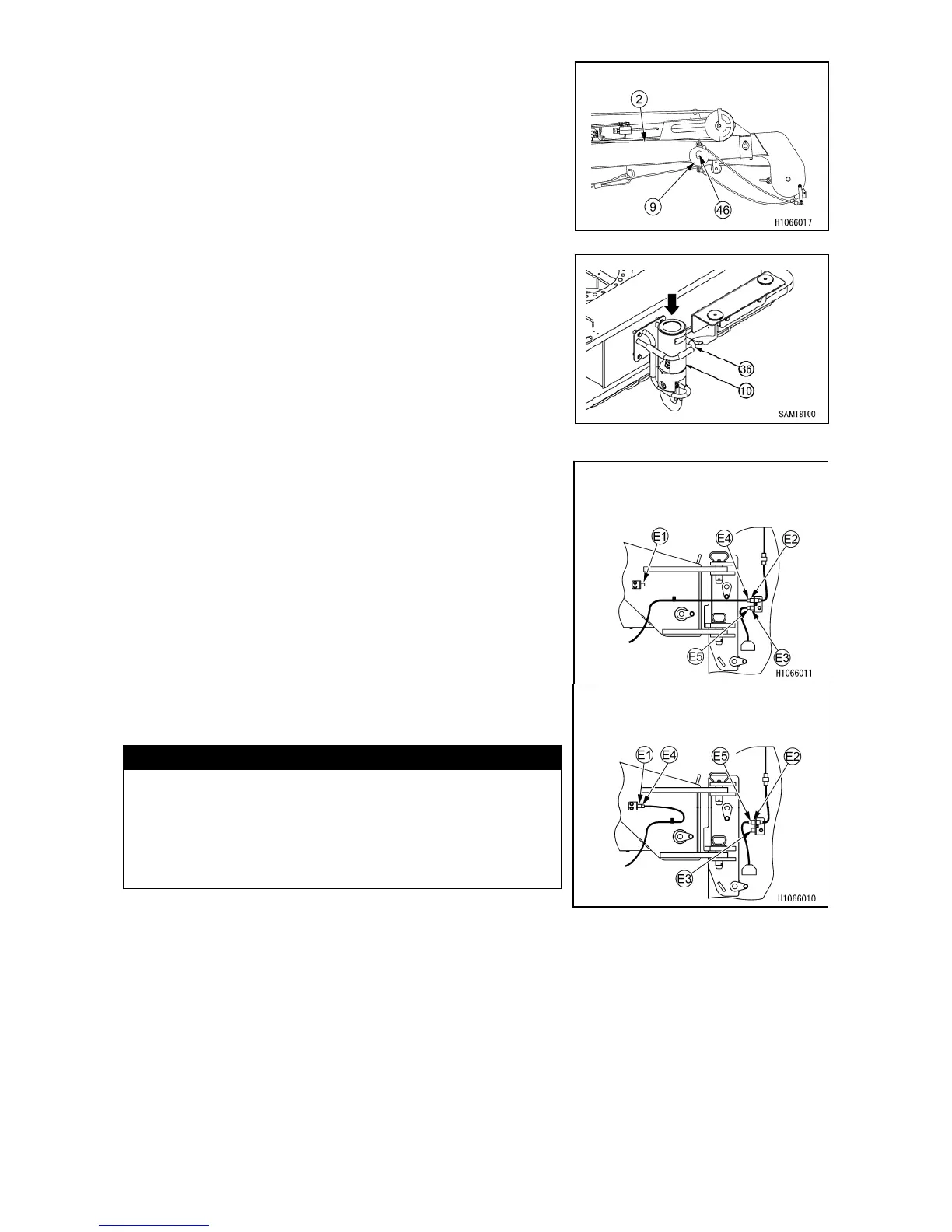

4. Stow the over-hoist detector weight (9) to the weight hanger
(46) on the right section of the No. 1 fly jib (2).
5. Stow the single hook (10) you have removed in the stowage
bracket (36) at the front of vehicle.
6. Reconnect the left section of the main boom tip and the
harness of the left section of the fly jib base, following the
procedure below.
(1) Remove the plug from the connector (E1) on the fly jib
side.
(2) Disconnect the connector A (E4) from the connector
(E2) on the main boom side and connect the connector
B (E5) to the connector (E3) on the fly jib side.
(3) Disconnect the connector B (E5) from the dummy
connector (E3) and reconnect the connector B (E5) to
the connector (E2) on the main boom side.
(4) Connect the plug to the dummy connector (E3).
CAUTION
• The machine will not function unless you reconnect the
harness. Make sure to reconnect it.
• Check that the connector of the reconnected harness is
securely inserted.
• Use plugs on the unconnected ends to protect
connectors.
FLY JIB STOWED
FLY JIB SET
