Maeda MC815C - Page 381

371

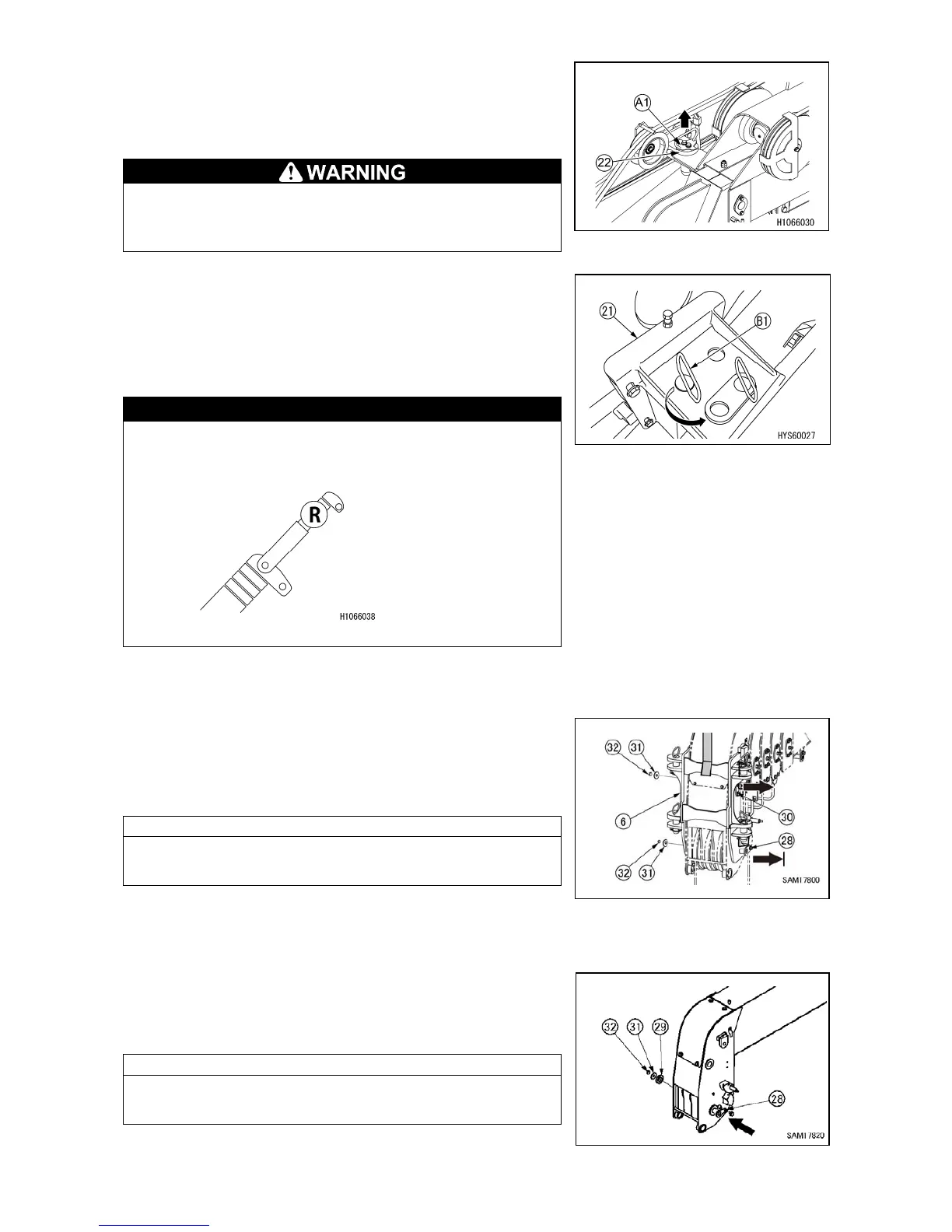

18. Push the fly jib into the stowage bracket B (22) and insert
the position pin (A1) to the hole of the stowage bracket B
(22) and insert the linchpin. When doing so, attach the
shaft lock pin to prevent pins from falling.
The position pin (A1) must be inserted from above facing
downwards. Otherwise, the position pin might come off,
and the fly jib may fall causing a serious accident.
19. Pull out the linchpin of the position pin (B1) stowed in the
stowage bracket A (21) to pull out the position pin (B1).
Insert the position pin (B1) to the front hole and insert the
linchpin. Remember to turn the ring back to lock it
securely.
CAUTION
The monitor display changes as the figure below, when
the fly jib is stowed.
Remove the fly jib mounting bracket as necessary.
20. Hang a sling on the upper part of the fly jib mounting
bracket (6) and remove the nut (32) and the plate (31),
and pull out the head pin (28) from the fly jib mounting
bracket (6) completely.
NOTES
The head pin (28) does not need to be pulled out completely, as
long as the fly jib mounting bracket (6) can be removed.
21. Remove the nut (32) and the plate (31), and pull out the
point pin (30) to remove the fly jib mounting bracket (6).
22. Put back the head pin (28) you have pulled out in step 20,
and fasten the tip using the collar (29), the plate (31) and
the nut (32).
NOTES
Do not forget to mount the collar (29) which was removed when
mounting the fly jib mounting bracket (6).
