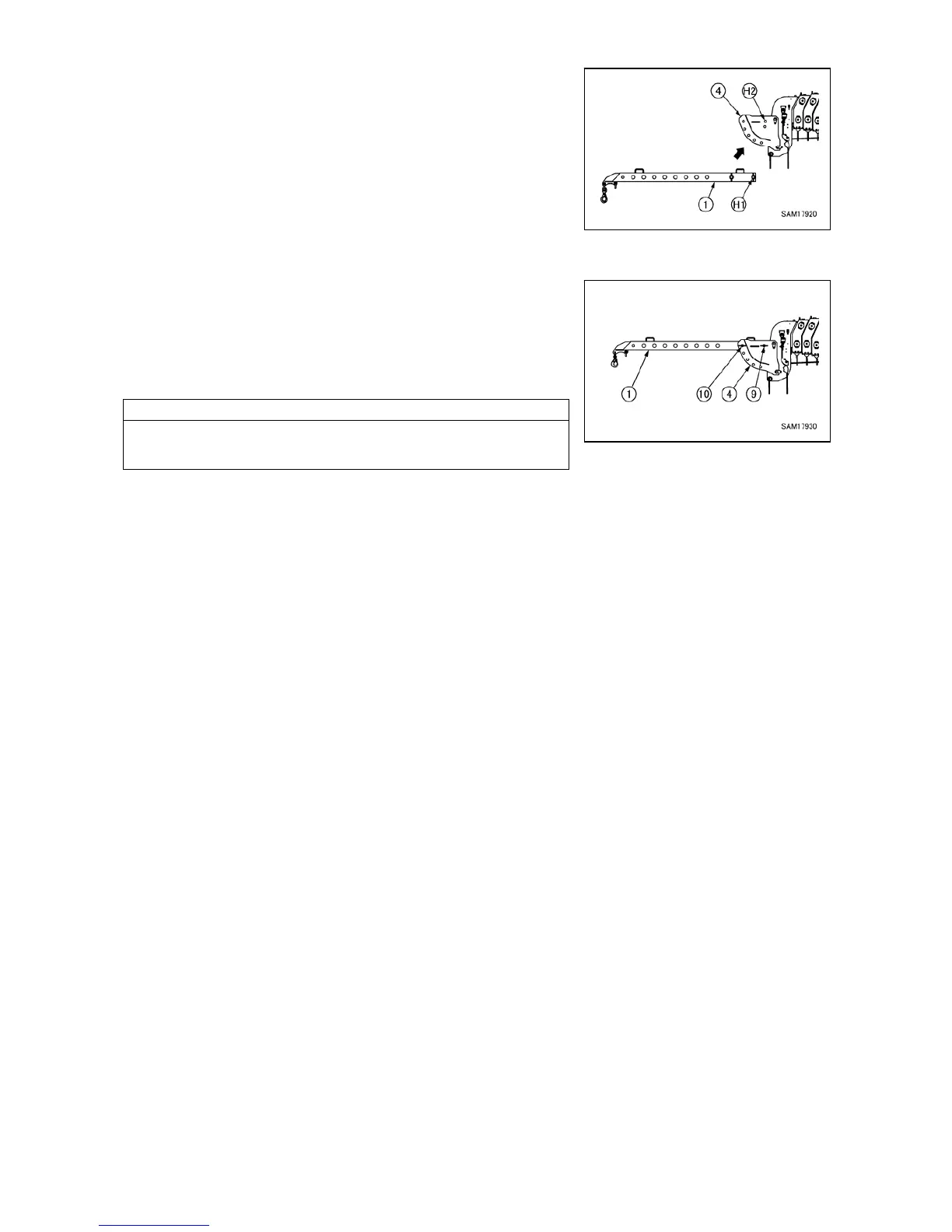

8. Align the hole (H1) of the searcher hook boom (1) with the
hole (H2) of the searcher hook bracket (4) on the main boom
tip.
9.
Insert the pin A (9) to the aligned hole from the left side and
attach the retaining pin.
10.
In the same manner, insert the pin B (10) from the left side and
attach the retaining pin.
NOTES
The pin A (9) and the pin B (10) are the same parts, so either of
them can be inserted.
