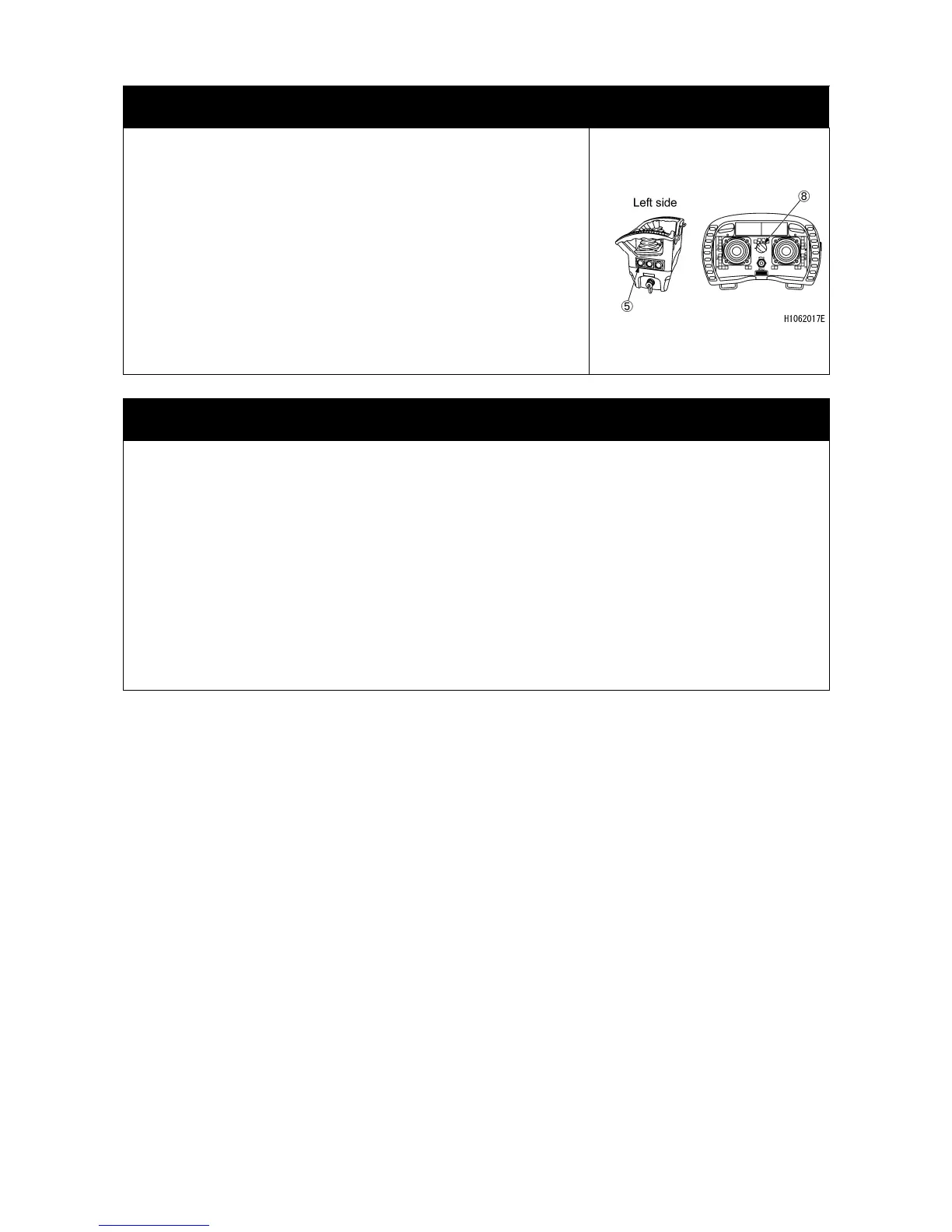

OPERATION CHECK OF OUTRIGGER MODE BY TRANSMITTER AND CAUTIONS
DURING OPERATION (REMOTE CONTROL SYSTEM)
• Check that position pins and retainers of the outriggers are
securely set.
• By using mode selector switch (8), set to “1,4 Outrigger
mode” or “2,3 Outrigger mode”.
• Check that the messages on the display are switched
correctly.
• Press the Speed/Outrigger selector switch (5) to check that
the message on the display switches between “Outrigger
retraction” and “Outrigger extension/stowage”.
• Use the operation lever to check that the outrigger is
retracted properly.
• Use the operation lever to check that the outrigger is
extended and stowed properly.
OPERATION CHECK OF CRANE MODE BY TRANSMITTER AND CAUTIONS DURING
OPERATION (REMOTE CONTRO LSYSTEM)
• Before switching the operation mode to “CRANE MODE”, make sure all the outriggers are
extended and securely placed on the ground.
• Set to the “CRANE MODE” with the mode selector switch (8) and switch to the crane mode
with the “Crane” button on the monitor.
• Operate the control lever and check that the crane operates properly.
• When performing crane operations, always refer to the “Rated total load chart” and avoid
over-loaded operations.
• Activate the control levers of the Transmitter slowly at all times.
• Before starting operations, check to make sure that the emergency stop switch functions. At
this time, the status LED of the Transmitter goes off. If it does not go off, immediately stop the
use.
• If you perform compound operation with the remote controller, only one side may operate. As
this is very dangerous, do not perform compound operation.
