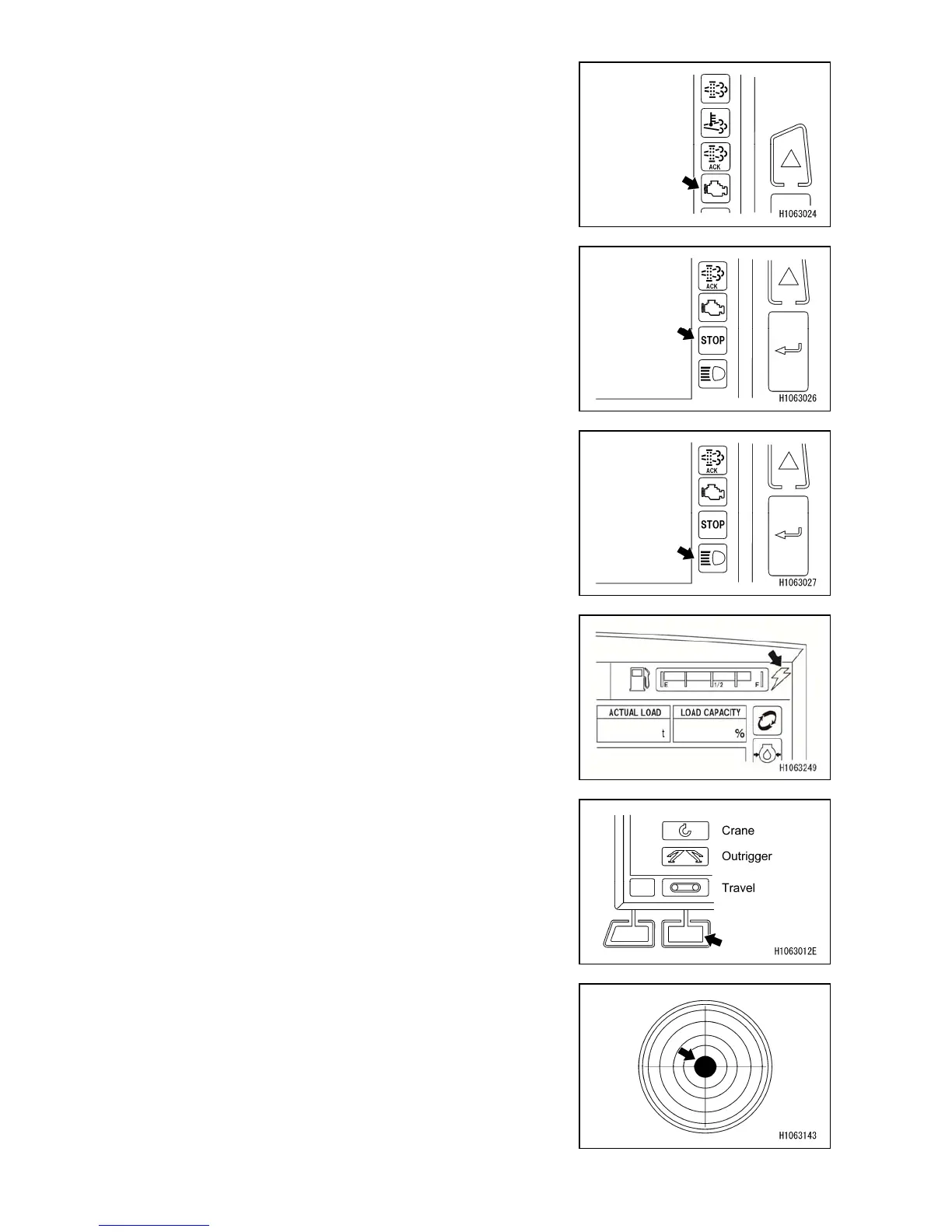

[19] Failure
Lights up in case of an engine failure.
[20] Emergency stop lamp
This lamp is lit when the emergency stop switch is pressed.
[21] Light
Remains lit while the headlight at the front of the machine
is on.
[22] Electricity on lamp
Lights up when the electric unit is being supplied with
electricity.
[23] Mode selector switch (1) (travel/outrigger/crane)
Used for changing the machine mode.
A pop up screen is displayed when you press the switch.
When the pop up screen is displayed, the machine mode
can be changed by either touching the displayed pop up
selection switch (upper side or lower side) or by touching
the “Travel”, “Outrigger”, “Crane” displayed on the screen.
[24] Levelling instrument
Displays the incline condition of the machine. The position
of the yellow ball shows the inclination and direction of the
machine.
