2250 SERVICE/MAINTENANCE MANUAL HYDRAULIC AND AIR SYSTEMS
2
P930
3
8
7
6
9
2
5
1
4

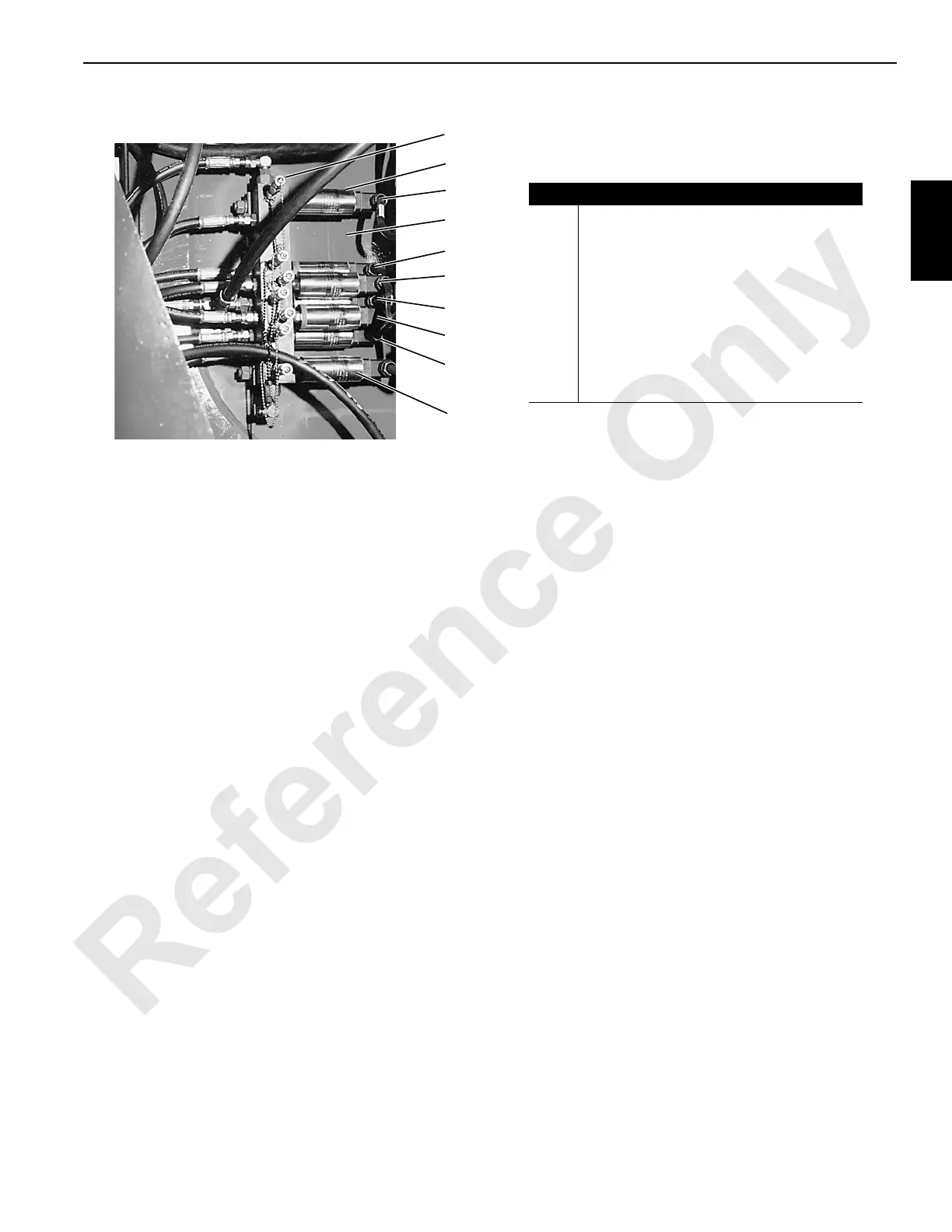

2250 Left Inboard Side of Rotating Bed
(forward of pumps)
Item
Description
1 Gauge Coupler (typical)
2 Electric Plug (typical)
3
Independent Luffing Hoist Pressure Sender
1
4 Right Travel System Pressure Sender
5 Left Travel System Pressure Sender
6 Load Drum Charge Pressure Sender
7 Load Drum System Pressure Sender
8 Boom Hoist System Pressure Sender
9 Swing Right System Pressure Sender
10 Swing Left System Pressure Sender
1
Optional
FIGURE 2-16
10
