Manitowoc Published 11-06-15, Control # 040-13 10-41
2250 SERVICE/MAINTENANCE MANUAL TROUBLESHOOTING
10

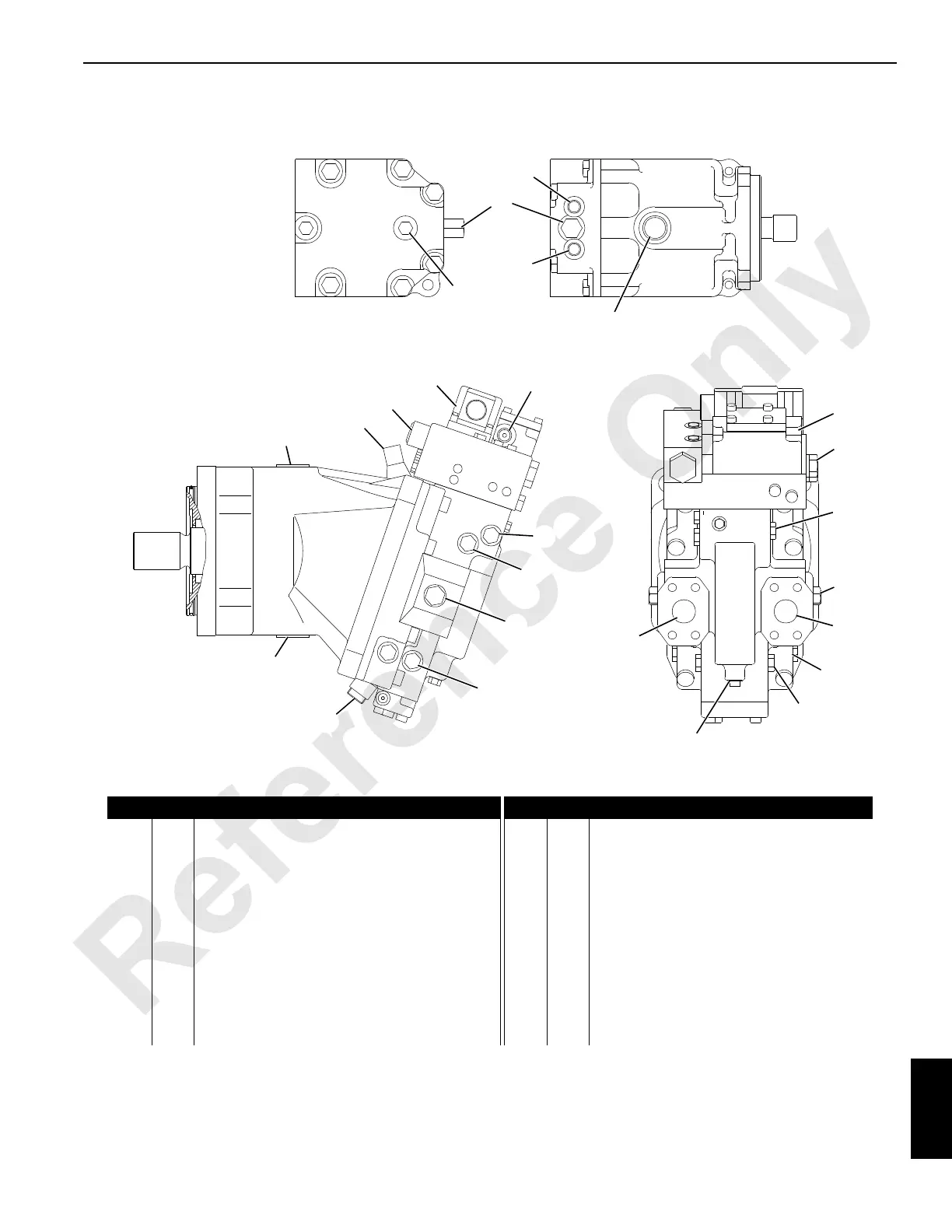

Test 7 — Location of Motor Ports
M2
Item Port Description Item Port Description
1 A Main system pressure 11 M7 Control pressure
2 B Main system pressure 12 M8 Control pressure
3 L1 Case pressure 13 M9 Servo pressure supply
4 L2 Case pressure 14 X1 External PCP supply pressure
5 M1 Gauge port A 15 Minimum displacement limiter
6 M2 Gauge port B 16 Charge pressure relief valve
7 M3 Servo gauge port or servo pressure supply 17 Pressure compensator adjuster
8 M4 Servo gauge port or servo pressure supply 18 Manual override
9 M5 Servo pressure supply 19 Control start setting
10 M6 Charge pressure gauge port 20 Loop flushing shuttle valve
B
A
A1188
5
16
6
3
10
4
15
17
18
12
13
8
6
10
16
3
2
19
7
20
1
5
9
11
14
Swing Motor
Boom Hoist, Load Drums, and Travel Motor
