ELECTRIC SYSTEM 2250 SERVICE/MAINTENANCE MANUAL
3-54
Published 11-06-15, Control # 040-13
EPROM REPLACEMENT
See Figure 3-18 for the following procedure.
To ensure proper operation of EPIC cranes, extreme care
must be taken to properly install EPROMs (computer chips)
in the field.
1. Lower any suspended loads to ground and apply all
parking brakes and locks.
2. Turn engine run/stop switch to STOP position and turn
cab power switch to OFF position.
3. Remove cover from top of programmable controller.
4. Remove CPU board from programmable controller by
pulling up on tabs on sides of board (CPU board is board
closest to mounting brackets on box).
5. Carefully remove both EPROMs from upper right corner
of CPU board. An EPROM remover should be used.
6. Each EPROM has a label containing a Manitowoc
program number, configuration number, and bit
indicator.
7. Install new EPROMs on CPU board.
8. Notch in each EPROM must line up with silk screened
notch at end of each EPROM holder.
a. Install EPROM with bit indicator number of 1 in
EPROM holder U7.
b. Install EPROM with bit indicator number of 0 in
EPROM holder U4.
c. Use care not to bend prongs on EPROMs, as each
prong engages corresponding terminal hole in
holder.
9. Reinstall CPU board in programmable controller.
10. Reinstall cover on programmable controller.
11. Read all publications sent with new EPROMs.
P1634
View Behind Operator’s Cab Seat
Cover
Programmable
Controller
Screw
(1/8 in. allen head)
CPU Board
EPROMS
Tab
P1635

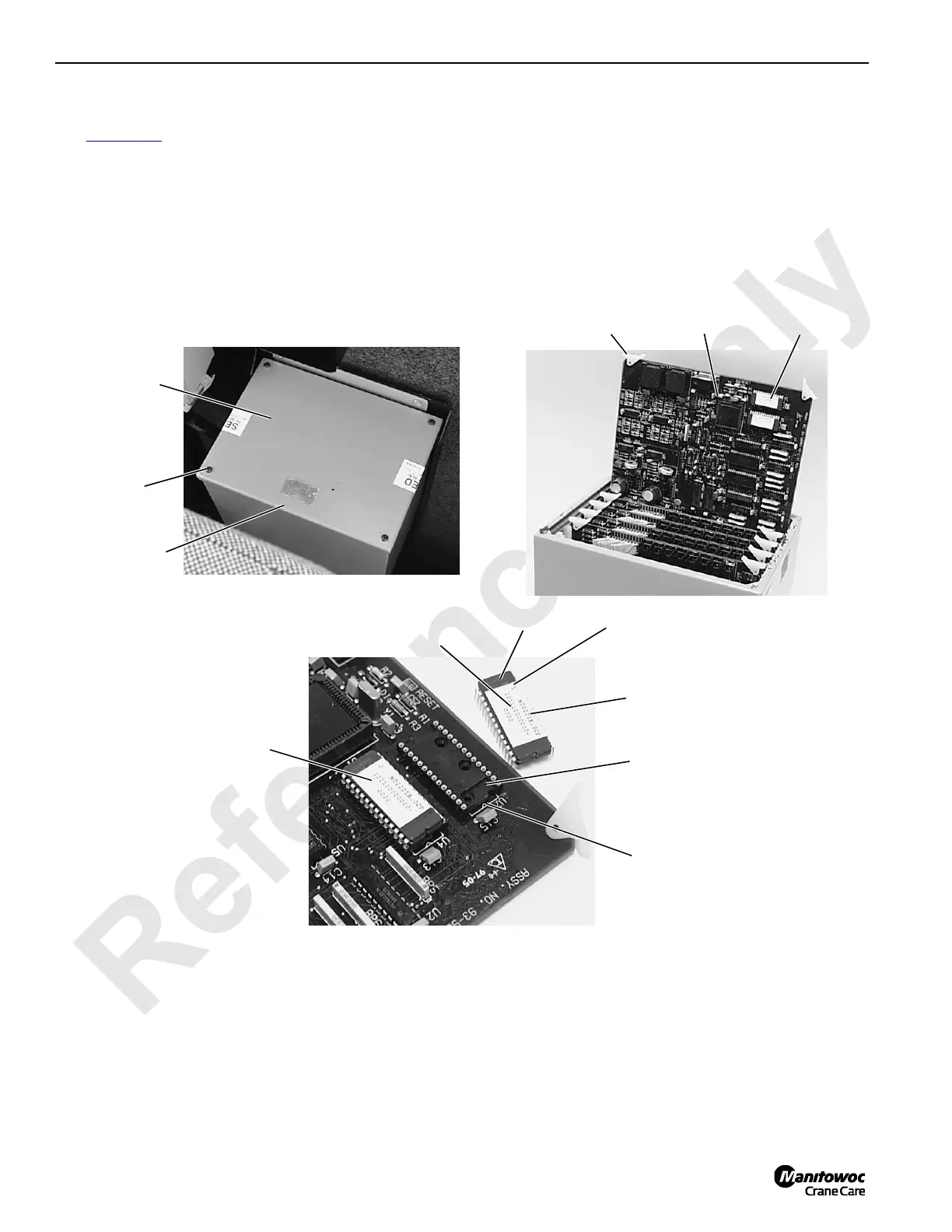

FIGURE 3-18
EPROM
Mounted in
U4 Holder
Silk Screened
Notch on
Circuit Board
U7 Holder
Configuration
Number
EPROM
Bit Indicator
Number
Program
Number
P1635
