Manitowoc Published 11-06-15, Control # 040-13 10-43
2250 SERVICE/MAINTENANCE MANUAL TROUBLESHOOTING
10

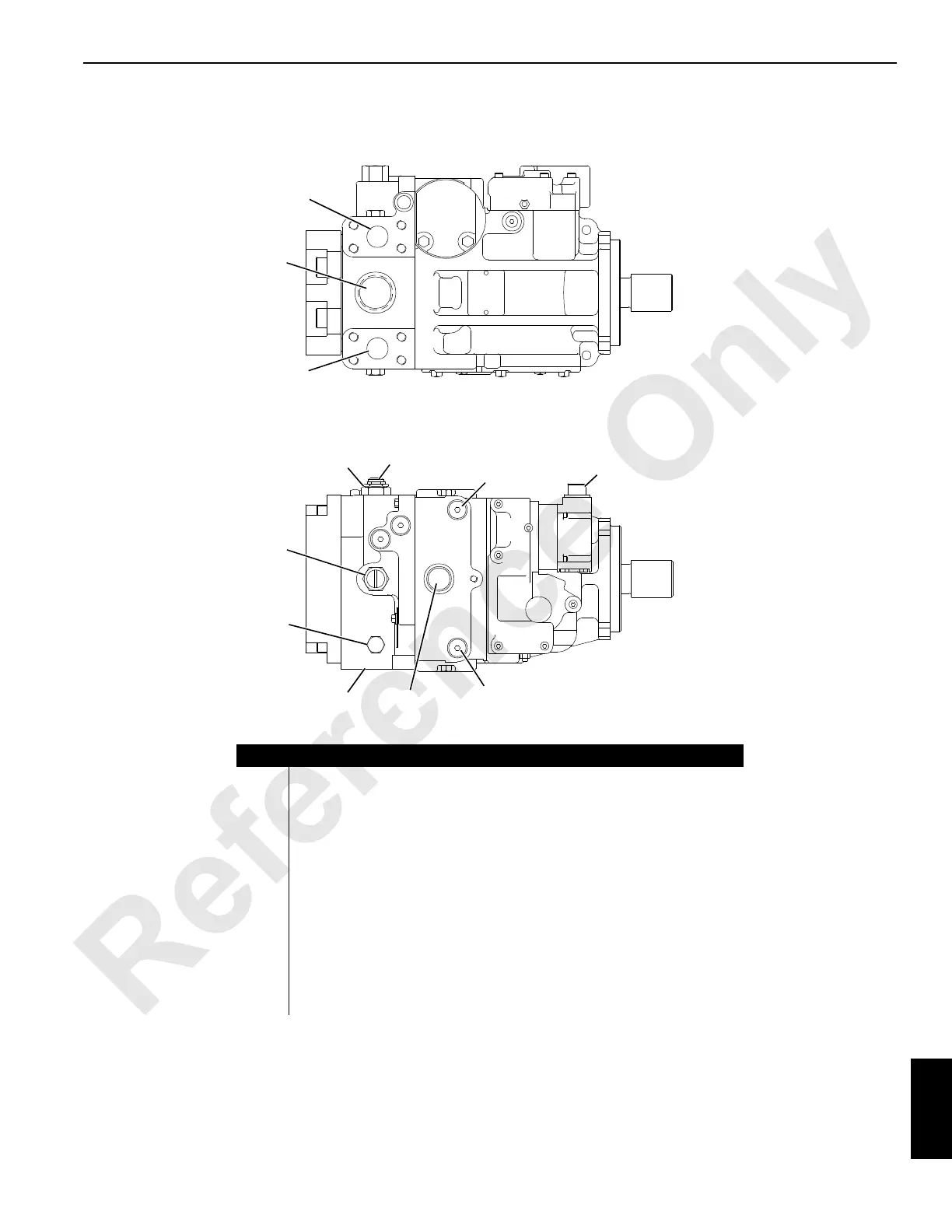

Test 9 — Location of Pump Ports
Item Description
1 Port A – main system pressure
2 Port B – main system pressure
3 Case drain (highest port as outlet)
4 System pressure gauge port A
5 System pressure gauge port B (other side)
6 Charge pressure gauge port (between multifunction valves)
7 Servo pressure gauge port
8 Multifunction valves
9 Charge pump inlet
10 Charge pressure relief valve
11 EDC (electrical displacement valve)
2
A1188
9
1
6
8
10
5
4
7
7
11
3
