Manitowoc 2250 Service And Maintenance Manual

Reference Only
HYDRAULIC AND AIR SYSTEMS 2250 SERVICE/MAINTENANCE MANUAL
2-30
Published 11-06-15, Control # 040-13

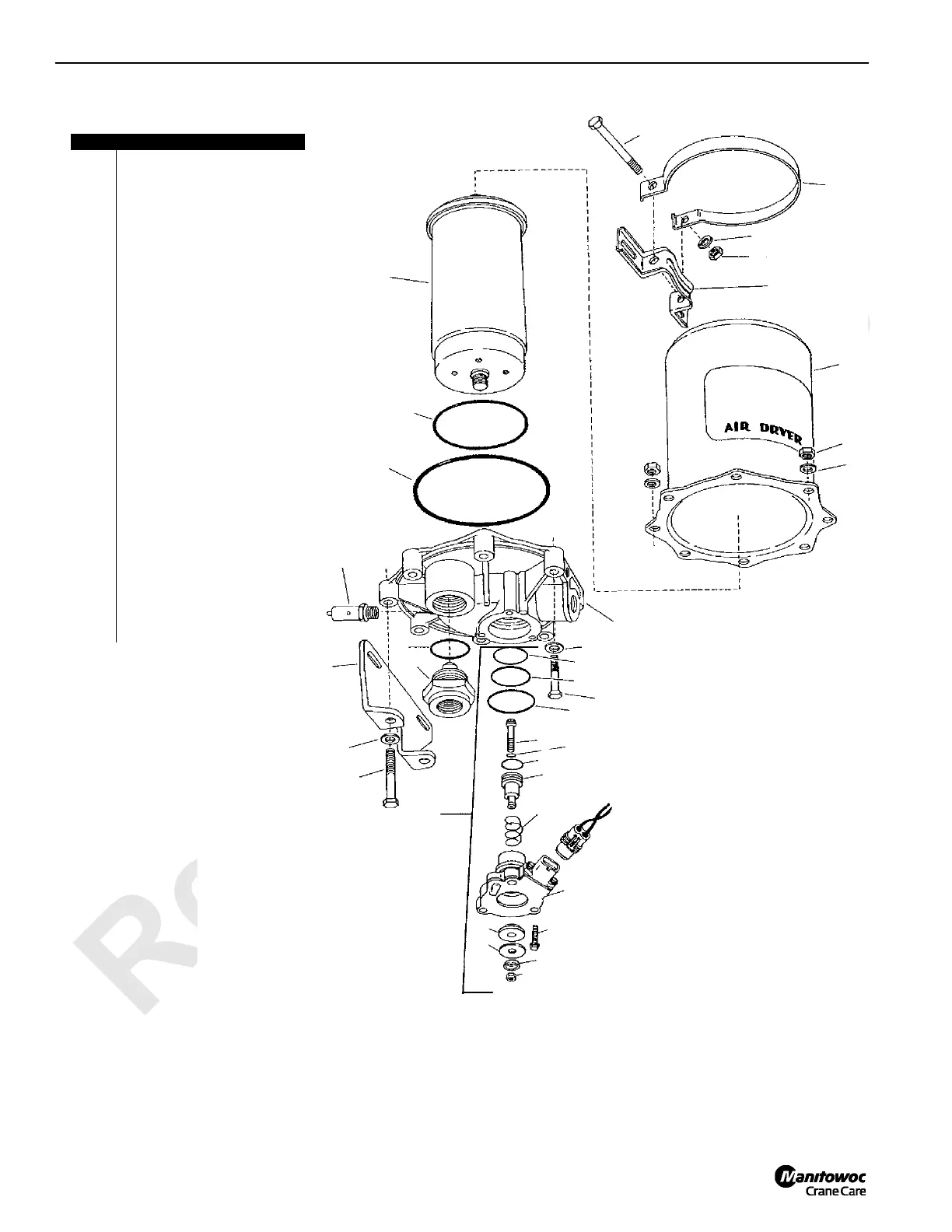

Item Description
1O-Ring
2 Exhaust Diaphragm
3 Self-Tapping Screw
4 Purge Valve Lock Nut
5O-Ring
6O-Ring
7O-Ring
8 Purge Valve Housing
10 O-ring
11 Purge Valve
13 Spring
14
O-Ring
15 Check Valve
16 Cap Screw
17 Special Washer
18 Cap Screw (Long)
19 Lock Nut
20 Lower Mounting Bracket
21
O-Ring
22 Desiccant Cartridge
23
O-Ring
24 Housing
25 Upper Bracket Cap Screw
26 Upper Bracket Strap
27 Upper Mounting Bracket
28 Lock Washer
29 Lock Nut
30 Exhaust Cover
31 Bolt
32 Exhaust Diaphragm Washer
33 Purge Piston
22
23
24
25
26
27
30
17
3
2
11
31
32
33
21
29
16
14
5
17
19
10
20
7
6
8
4
28
End
Cover
Safety
Valve
18
17
13
FIGURE 2-34

Manitowoc 2250 Specifications

General

Brand	Manitowoc
Model	2250
Category	Construction Equipment
Language	English
