ELECTRIC SYSTEM 2250 SERVICE/MAINTENANCE MANUAL
3-10
Published 11-06-15, Control # 040-13
Circuit
Breaker
Amps Wire No. Description of Items Protected
Auxiliary Power Plant Programmable Controller Junction Box Enclosure
CB1 25 8PR Aux Power Plant Programmable Controller Power Supply
Fuse Amps Wire No. Description of Items Protected
F1 5 8ER Not Used
F2 5 8DR Aux Hydraulic Tank Filter Alarm 1 and 2
F3 5 8TR Not Used
F4 10 8MR Air Dryer
Aux Power Plant
Programmable Controller
Aux Power Plant Junction Box Enclosure
CB-1
Fuse Block
CB-1
Fuse Block
F1F2F3F4
A
1
3
5
8
8
_
1
A
1
3
5
8
8
_
2

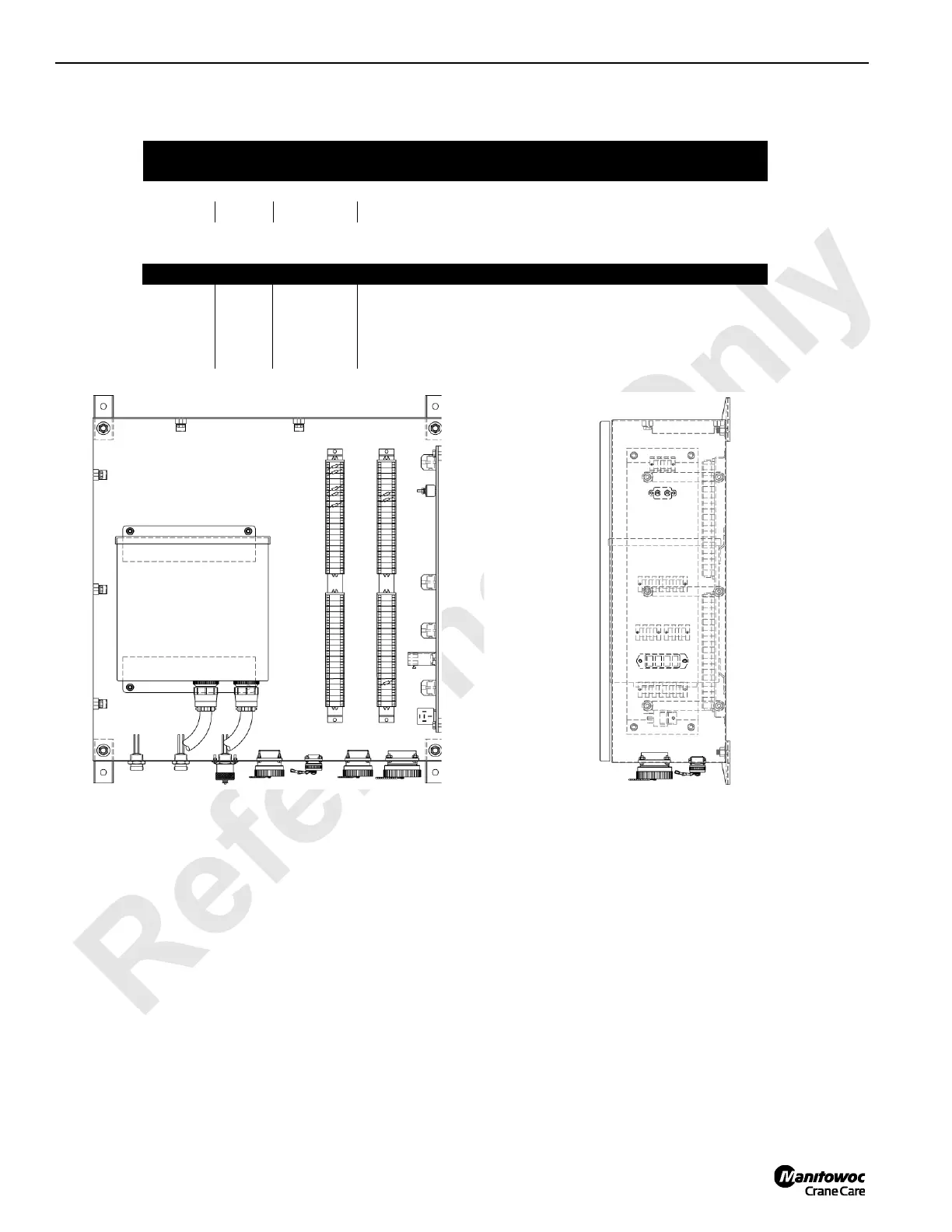

FIGURE 3-9
