2250 SERVICE/MAINTENANCE MANUAL BOOM
4

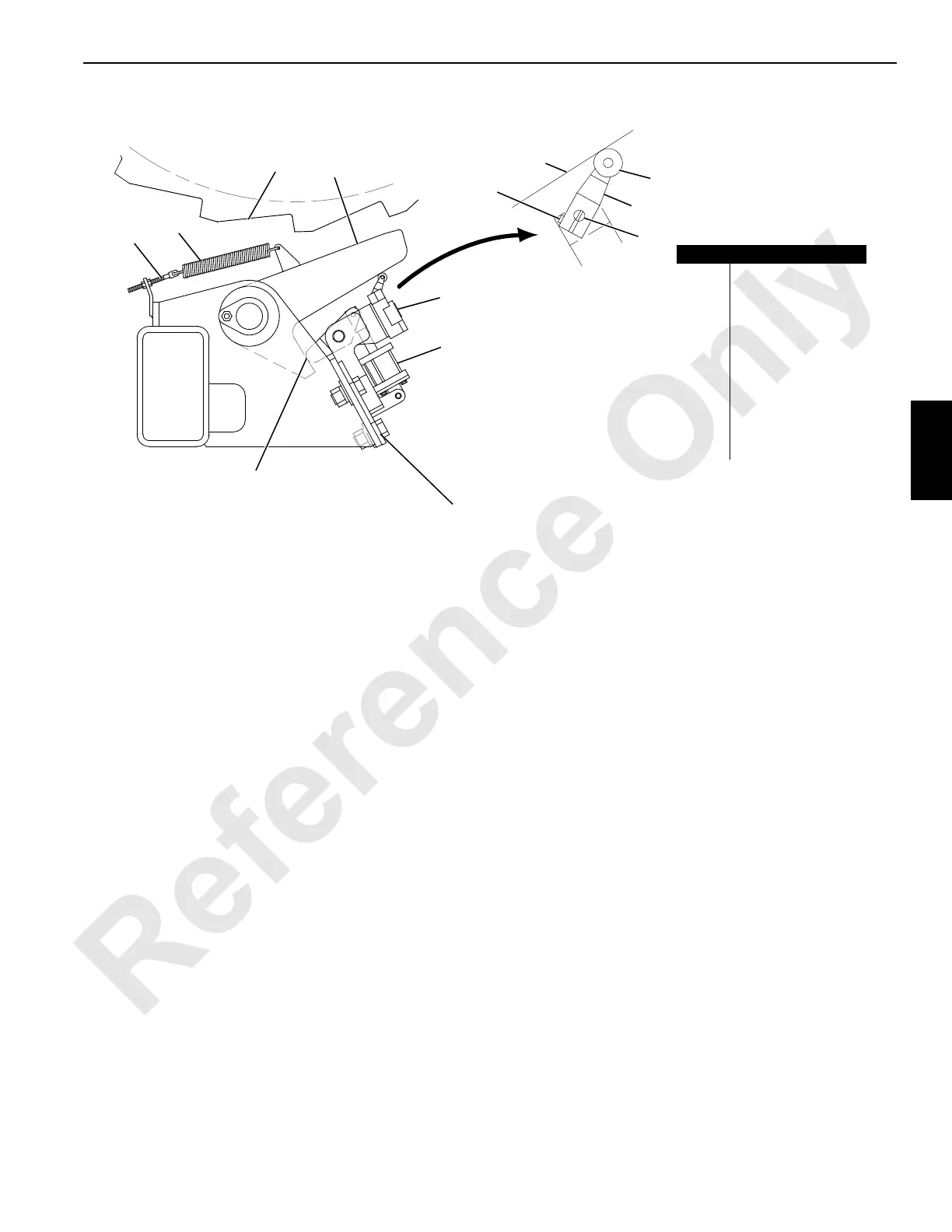

FIGURE 4-11
A1148
A1066
Item Description
1Cam
2Eyebolt
3Spring
4Ratchet
5Pawl
6 Limit Switch
7 Cylinder
8Screw
9Roller
10 Lever
11 Shaft
1
11
2
4
5
6
7
8
5
9
10
3
