Manitowoc 2250 Service And Maintenance Manual

Reference Only
Manitowoc Published 11-06-15, Control # 040-13 5-17
2250 SERVICE/MAINTENANCE MANUAL HOISTS
5

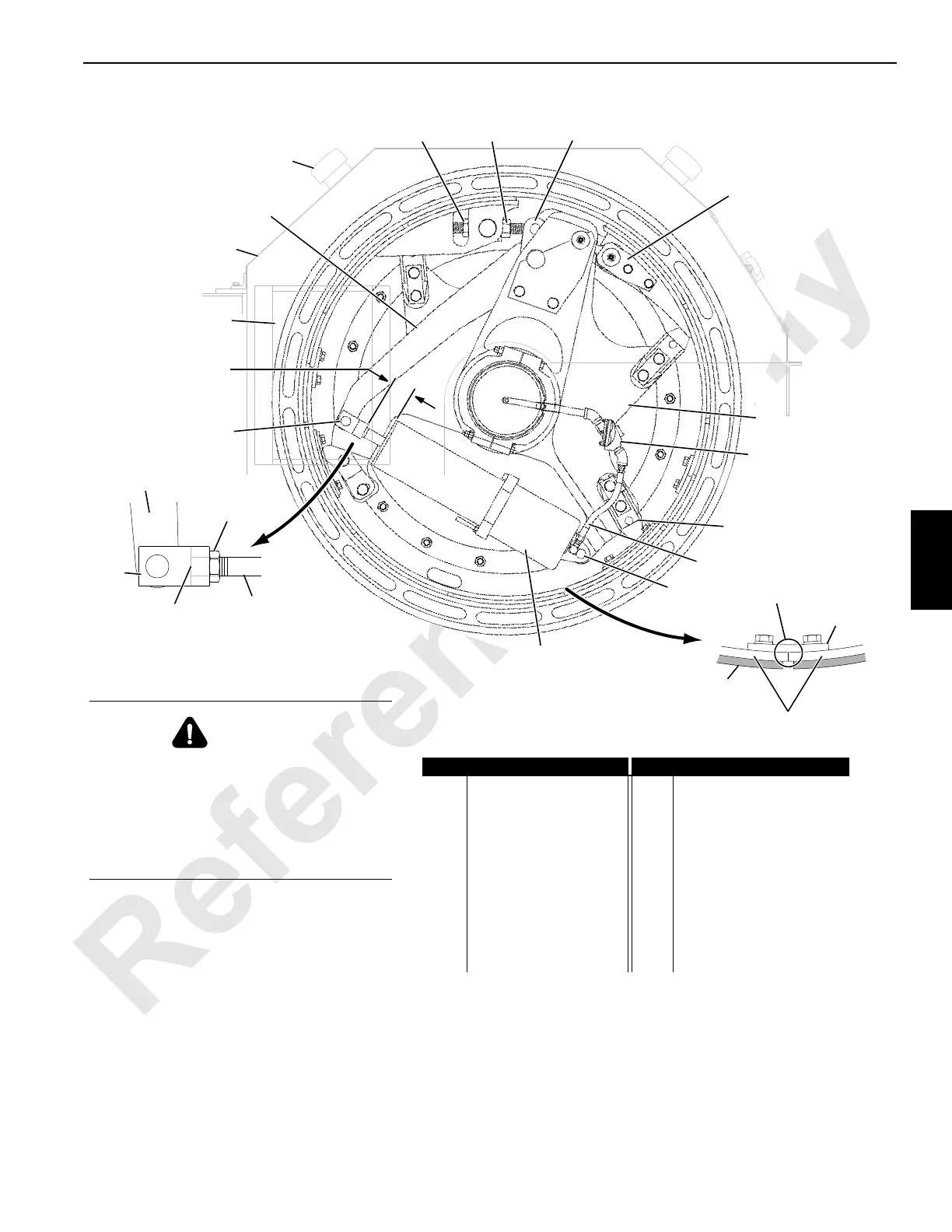

FIGURE 5-14
WARNING
Falling Load Hazard!
Apply Loctite #242 to threads of rod end
before assembly.
Cylinder rod can back out of rod end during
operation if this step is not performed —
load could drop if this occurs.
Matching Numbers
1-1/2 to 2-1/8 in
(38 to 54 mm)
Clutch Applied
Cylinder rod flush with
inside of rod end.
View B
View A
A470
2
22
Item Description Item Description
1 Pin 12 Air Line
2 Access Hole 13 Air Cylinder
3 Guard 14 Connecting Plate
4 Clutch Lever 15 Band Sections
5 Brake Band Support 16 Lining
6 Jam Nut 17 Cylinder Rod
7 Adjusting Nut 18 Jam Nut (Past)
8 Live End 19 Clutch Lever
9 Dead End 20 Rod End
10 Clutch Spider 21 Quick Release Valve
11 Band Guide (4 ea clutch)
3
9
10
11
12
13
14
1
4
5
6
7
8
1
2
15
16
17
19
20
21
81008625
18
