HOISTS 2250 SERVICE/MAINTENANCE MANUAL
5-20
Published 11-06-15, Control # 040-13

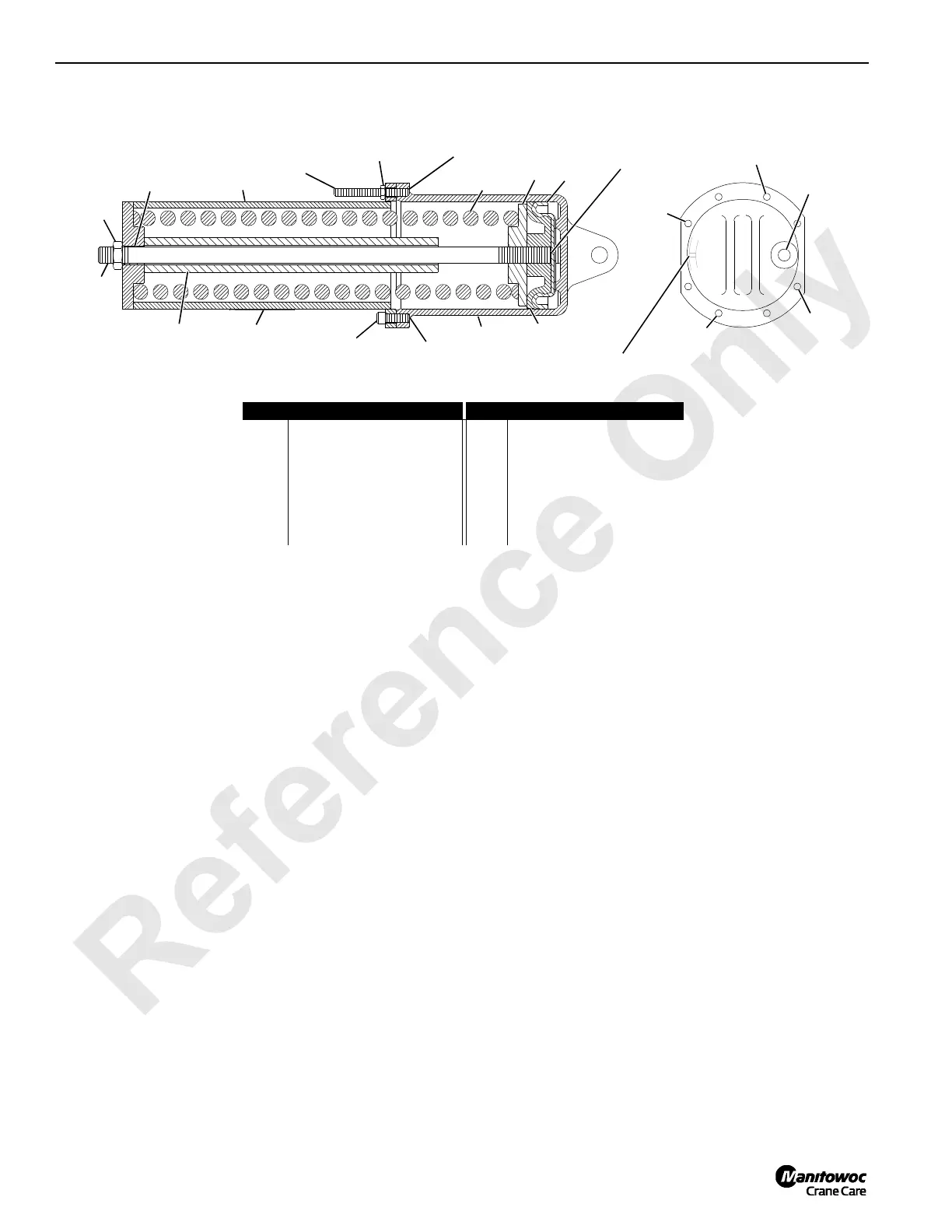

FIGURE 5-15
Apply Loctite
#242
Rod Flush with
End of Piston
Vent Hole in Bonnet Positioned
180° from Air Inlet Hole in Cylinder
Apply Loctite
#271
Apply Loctite
#242
X
X
X
X
A470
Item Description Item Description
1 Rod 8 Packing Cup
2 Jam Nut (Past) 9 Air Inlet Hole in Cylinder
3 Bushing 10 Piston
4 Bonnet 11 Cylinder
5 Threaded Rod With Nut (4) 12 Socket Head Cap Screw (4)
6 Spring 13 Warning Plate
7 Spring Guide 14 Spacer
1
2
3
4
13
11
10
12
6
7
8
14
9
5
