HOISTS 2250 SERVICE/MAINTENANCE MANUAL
5-34
Published 11-06-15, Control # 040-13
• Side loading: Swivel will turn freely in one spot and
lock-up in another. This condition can also be
checked by looking at the gap (see Figure 5-31
)
between barrel and shank (swivel must be removed
from weight ball to check). If the gap is wide on the
side and closed on the other, damage is present.
NOTE: The gap between barrel and shank is normally
0.020 to 0.050 inches. If the gap increases, swivel-
bearing failure is indicated.
8. Check the load block for signs of overloading: spread
side plates, elongated holes, bent or elongated tie-bolts,
and cracks.
9. Check all welds for defects and cracks.
10. Check the wire rope for wear and broken wires at the
point the wire rope enters the dead-end socket. Check
the socket for cracks. Tighten the wire-rope clips at the
dead end of the wire rope.
11. Check that each hook has a hook latch and that the hook
latch operates properly. Latch must not be wired open
or removed.

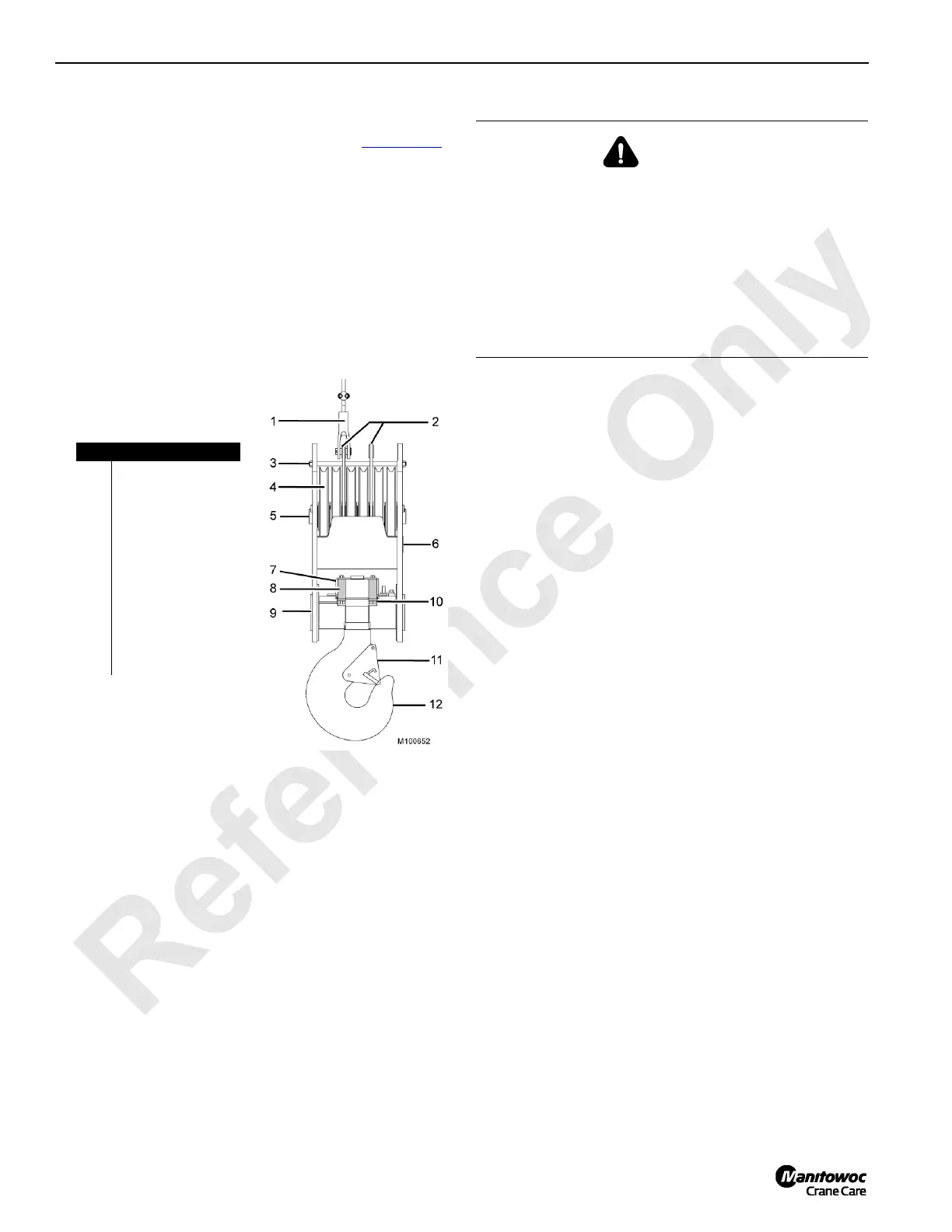

FIGURE 5-32
Item Description
1 Socket and Wedge
2 Center Plates
3 Tie Bolt
4 Sheaves
5 Sheave Shaft
6 Name Plate
7 Locking Cap
8 Hook Nut
9Trunnion
10 Thrust Bearing
11 Latch
12 Hook
WARNING
Falling Load Hazard!
To prevent load from dropping hook latch must retain
slings or other rigging in hook under slack conditions.
Hook latch is not intended as anti-fouling device, and
caution must be taken to prevent hook latch from
supporting any part of load.
Slings or other rigging must be seated in hook when
handling load; they must never be in position to foul hook
latch.
