Manitowoc Published 11-06-15, Control # 040-13 1-23

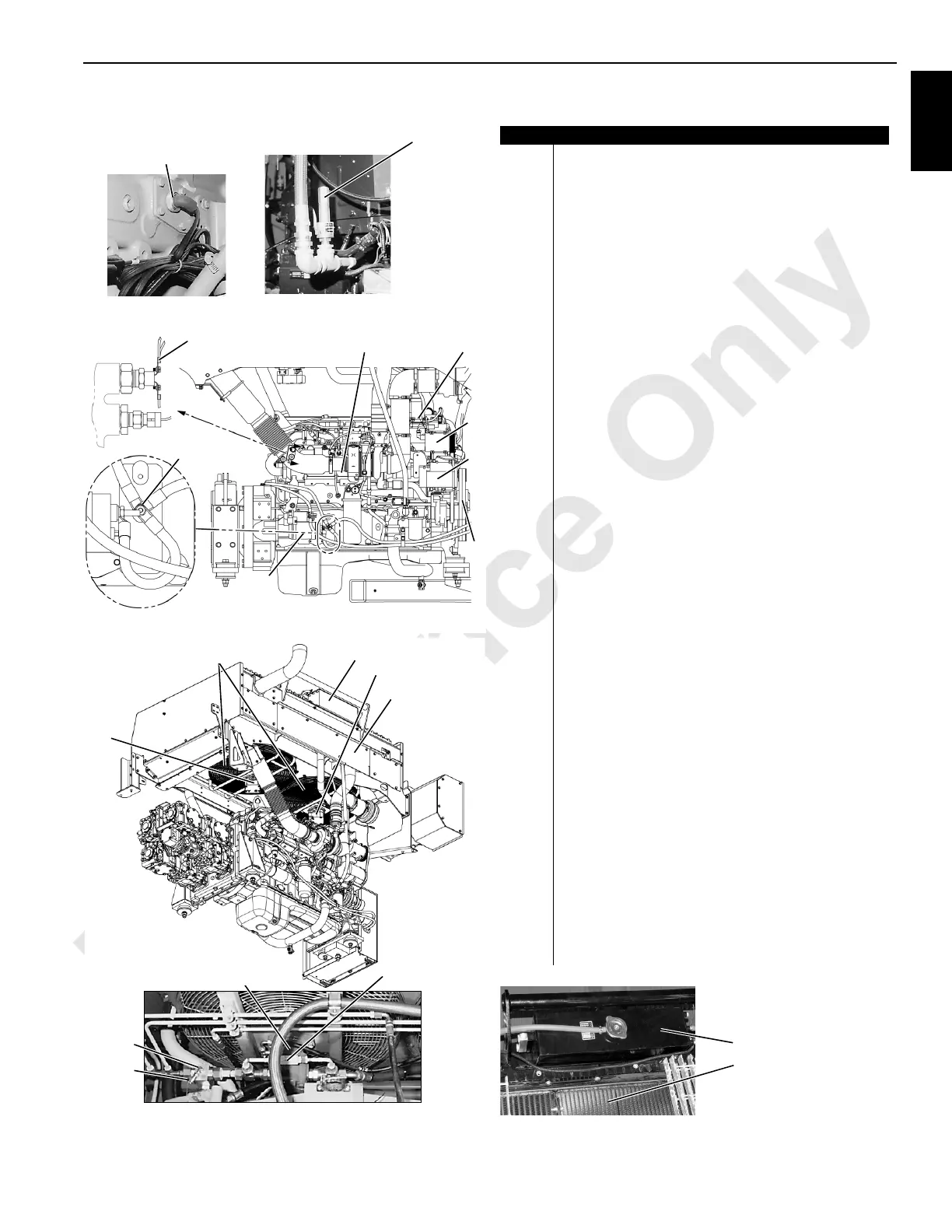

2250 SERVICE/MAINTENANCE MANUAL INTRODUCTION
1
Item Description
1 Diagnostic Gauge Coupler (typical each sender)
2 Right Travel Pressure Sender
3Spares
4 Boom Hoist Pressure Sender
5 Load Drum System Pressure Sender
6 Load Drum Charge Pressure Sender
7 Swing Right “B” Pressure Sender
8 Swing Left “A” Pressure Sender
9 Left Travel Pressure Sender
10 Pump Control Junction Box
11 Suction Line Pressure Sender Junction Box
12 Hydraulic Control Junction Box
13 Leveling Sensor Junction Box
14 Engine Hour Meter
15 Engine Controller Node
16 Air Conditioner Compressor
17 Air System Compressor
18 Ether Start Solenoid Valve
19 Ether Start Tank
20 NA
21 Engine Fly Wheel
22 NA
23 Pump Drive
24 Engine Starter (2)
25 Alternator
26 Air System Safety Valve
27 NA
28 Engine Oil Pressure Switch
29 Engine Oil Pressure Sender
30 Engine Oil Pressure Switch (disables hydraulic
disconnect if engine is running)
31 Ground Point
32 Engine Block Heater (1500W 120V with extension cord)
33 NA
34 Fuel Filter
35 Engine Coolant Temperature Switch
36 Engine Coolant Temperature Switch Sender
37 Diagnostic Gauge Coupler
38 Engine Cooler
39 Fan Relief Valve
40 Hydraulic Fan Motor (2)
41 Fan Anti-Cavitation Check Valve (1 each fan)
42 Cooling System Hydraulic Variable-Speed Fan (2)
43 Diesel Particulate Filter
44 Exhaust
45 Cooling System Surge Tank
31
35
View B (from Rear of Crane)
81012530_b
36
16
25
21
24
30
38
40
81009933_1
42
40
45 (see View E)
Looking from Under Tier 4
Crane from Rear of Crane
37
39
40
41
P935
Looking Up From Front of Crane (T3 shown, similar for T4)
26
View E
P934
P587
32
FIGURE 1-9 continued
View D
38 (under grating)
45
Surge_Tank_IMG_7148
